RCinPower GTS V3 1303 micro FPV motor

On a micro quad, every gram earns its place. The RCinPower GTS V3 1303 is a compact brushless motor for lightweight 2–3-inch toothpick and cinewhoop builds, with a quoted weight of 5.6g including 5cm of wire. It gives you a small motor to build around without pretending your frame, props and battery are somebody else's problem.

Choose your motor

Pick 8000KV or 11500KV, then choose Teal/Purple or Orange/Gold. Both colours are available in both KV ratings. This listing is for one motor, so a fresh quad build needs four.

• 8000KV: The lower-KV option in this range. A sensible starting point when your build calls for an 8000KV motor; check the matching test sheet against your intended battery and propeller.
• 11500KV: The higher-KV option. Higher KV means a higher theoretical unloaded speed per volt, not a free increase in efficiency or a licence to fit a higher-voltage battery.
• Two finishes: Choose the colour that suits your build. It is the KV, propeller and battery combination that needs the engineering decision.

For the build bench

This is the sort of motor to consider for a small, weight-conscious FPV build or a like-for-like replacement. The 2–3-inch guidance describes its intended application, not a promise that it bolts onto every frame in that class. Check your frame's mounting pattern and your propeller's shaft fit before ordering. Colour coordination is the easy bit.

Specifications

• Model: RCinPower GTS V3 1303
• Available KV: 8000KV and 11500KV
• Colours: Teal/Purple and Orange/Gold
• Configuration: 12N14P
• Stator diameter: 13mm
• Stator length: 3.2mm
• Shaft diameter: 1.5mm
• Motor dimensions: 16.5mm diameter × 10.1mm length
• Quoted weight: 5.6g including 5cm of wire

Before you power it up

Battery limits and current draw depend on the KV version and propeller. Use the matching test sheet below rather than treating one set of electrical figures as a specification for every variant. Check your ESC's rating and use mounting screws that cannot reach the windings.

In the box

• 1 × RCinPower GTS V3 1303 brushless motor in your selected KV and colour.

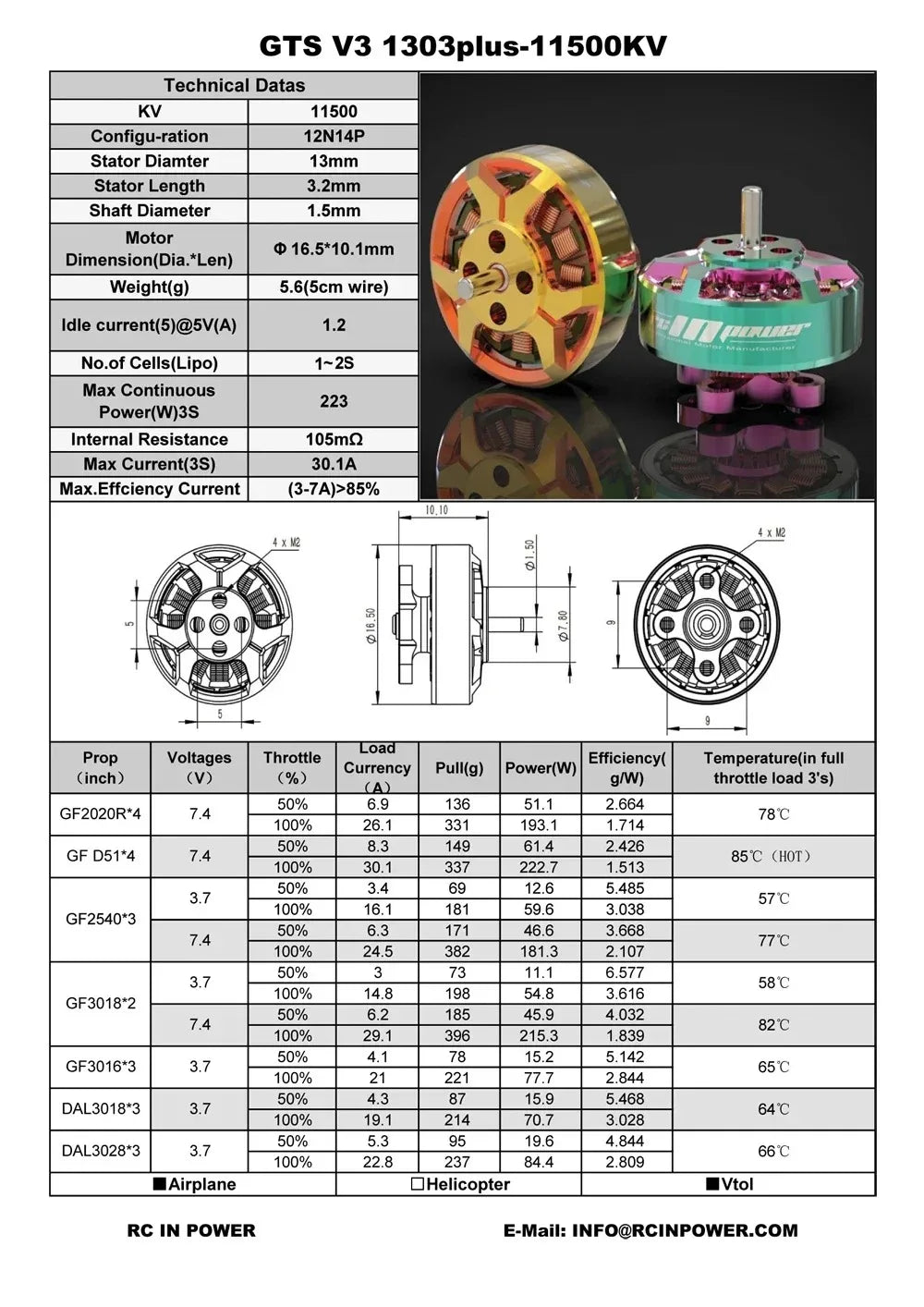

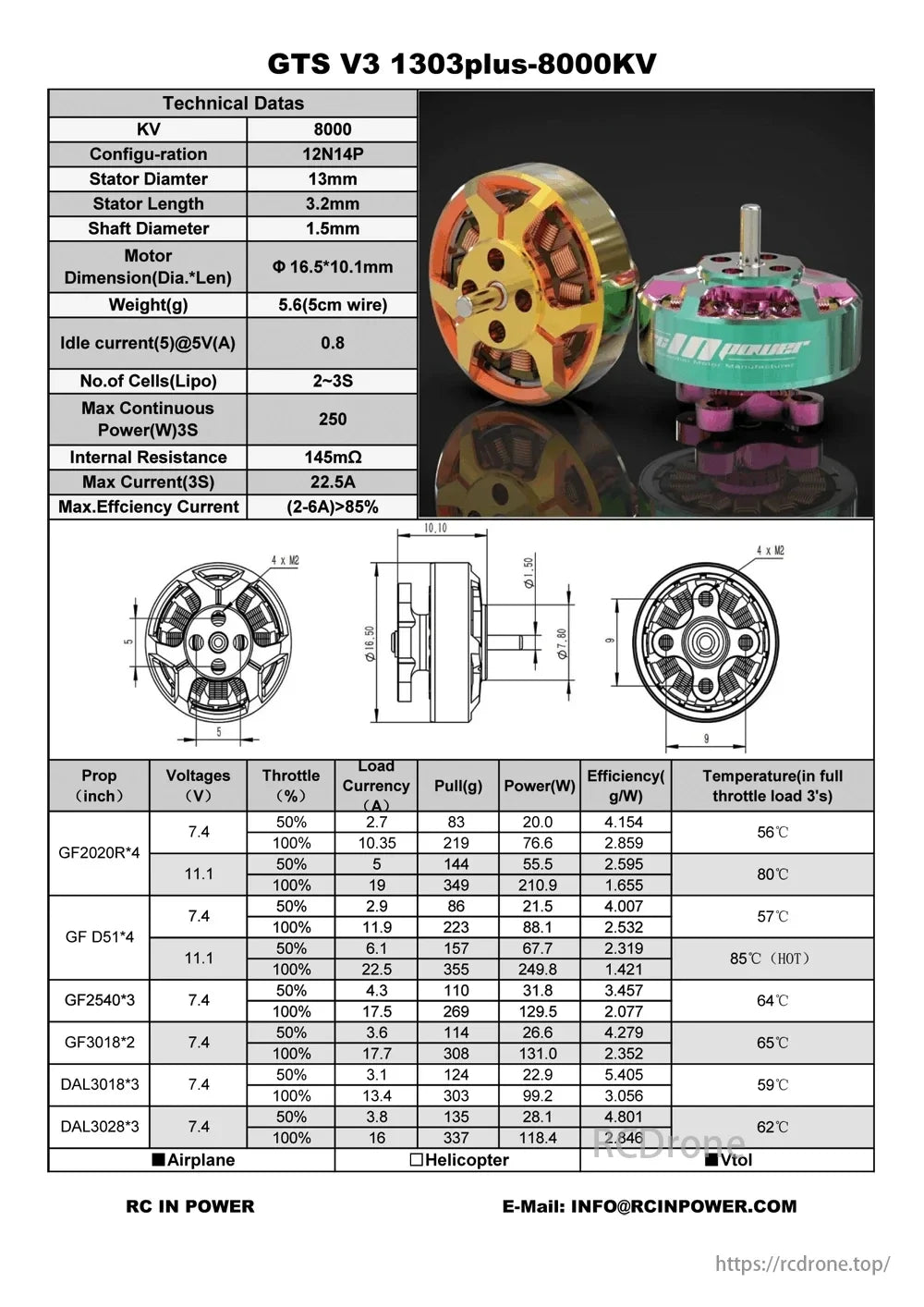

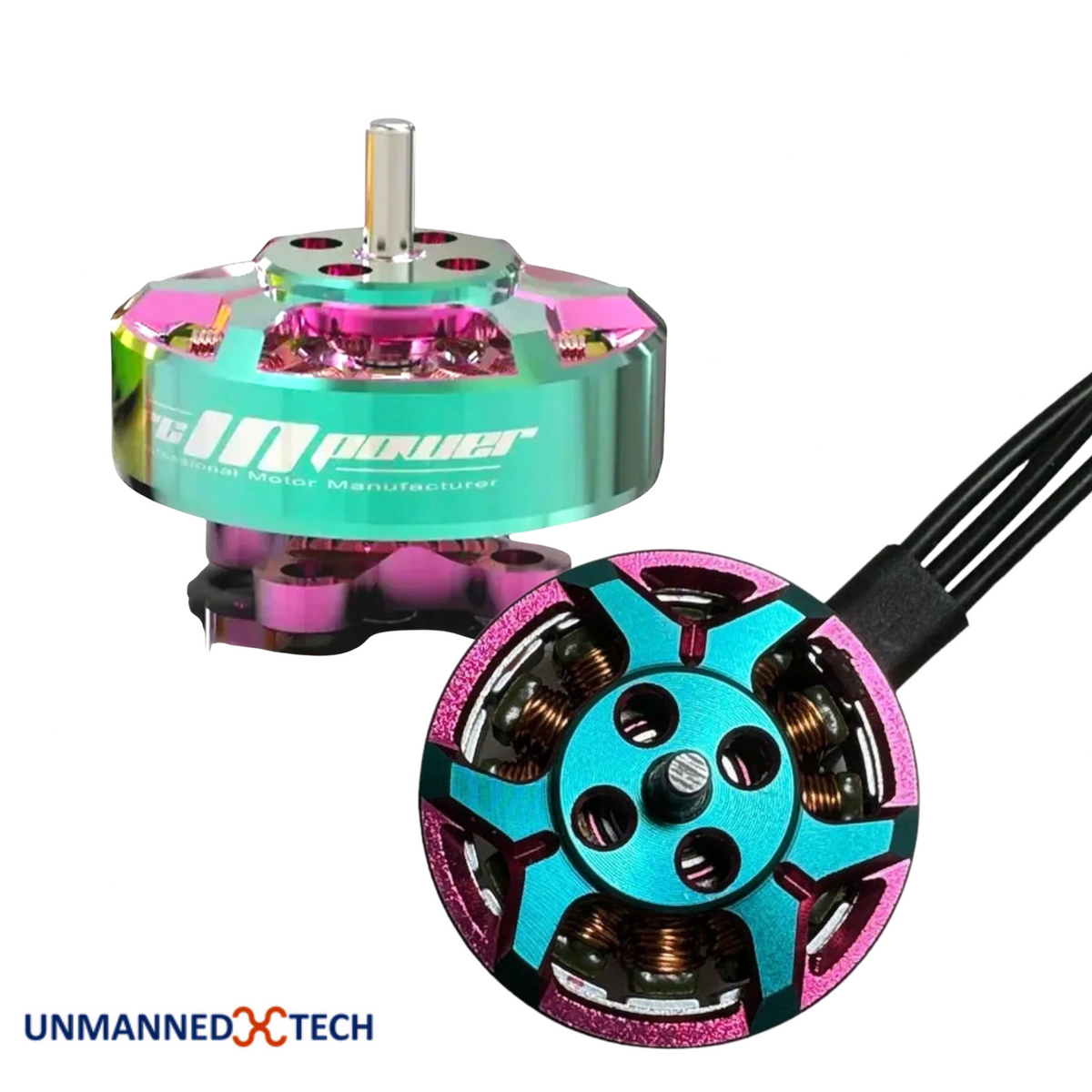

Motor images and test sheets
