Produktdetails
iFlight Commando 8 Pro GemX Dual-Band ELRS Radio
One radio, two RF bands, and far less reason to blame the link when the quad disappears behind concrete. The grey Commando 8 Pro combines 2.4GHz and 900/868MHz ExpressLRS through a dual-LR1121 system, with Gemini, True Diversity and Gemini Xrossband modes plus up to 1W output per band.
Key Highlights
- GemX Dual-Band ExpressLRS: Dual LR1121 RF hardware supports 2.4GHz and 900/868MHz with two antennas, giving compatible ELRS setups several ways to balance update rate, redundancy and penetration.
- Up to 1W Per Band: The internal transmitter reaches 30dBm on each supported band, with no bolt-on RF module needed for the built-in GemX system.
- Compact Hall-Gimbal Control: High-precision digital Hall gimbals put accurate stick input into a 315g gamepad-style radio that is easier to carry than a full-size tray transmitter.
- Bench and Simulator Friendly: USB-C wired and Bluetooth simulator connections make practice sessions possible without powering a quad or rearranging the entire bench.
- 6400mAh Built-In Battery: Two integrated 3200mAh 18650 cells provide up to three hours at 1W or around six hours at 100mW. USB-C PD supports up to 20W and a full charge in approximately 80 minutes.

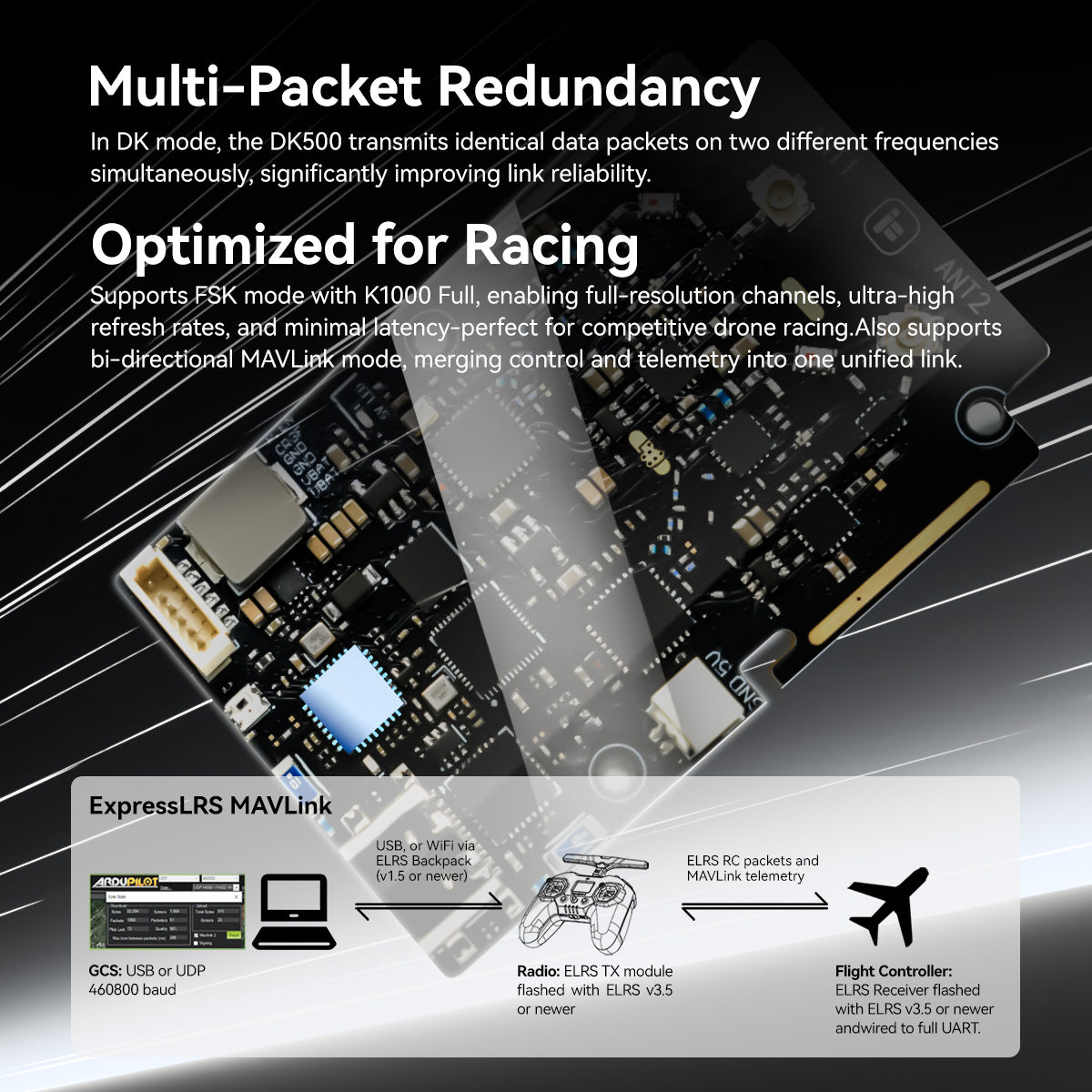

- Built-In Backpack Module: Compatible ELRS backpack functions can link with supported VTX, LED, OSD and MAVLink equipment.
Why You Want It
The Commando 8 Pro is for pilots who like the portable gamepad shape but do not want to be locked to one RF band. At a noisy race field, around reinforced structures or on a long-range setup, the GemX hardware gives you compatible dual-band and diversity modes without hanging another module off the back. The Hall gimbals keep the control side precise, while the five-axis menu buttons and EdgeTX/OpenTX control layout keep model setup and field changes close to hand.
Specifications
- Main MCU: STM32F407VET6
- RF chipset: Dual Semtech LR1121
- Protocol: ExpressLRS
- Frequency bands: 2.4GHz and 900/868MHz
- Transmission modes: Gemini, True Diversity and Gemini Xrossband
- Maximum RF power: Up to 1W (30dBm) per band
- Antenna system: Dual-band, dual-antenna
- Gimbals: High-precision digital Hall sensor gimbals
- Controls: EdgeTX/OpenTX layout with two five-axis menu buttons
- Switches: Two 2-position switches and two 3-position switches
- Simulator connections: USB-C wired and Bluetooth
- Battery: Two built-in 3200mAh 18650 cells, 6400mAh total
- Charging: USB-C PD, up to 20W
- Quoted runtime: Up to 3 hours at 1W or around 6 hours at 100mW
- Quoted full-charge time: Approximately 80 minutes
- Oscillator: TCXO
- External module support: Compatible with TBS transmitter modules
- Dimensions: 154 × 165 × 72mm (±0.5mm)
- Weight: 315g (±10g)
- Firmware target: iFlight ELRS Commando 8 GemX TX
FAQ
Does the Commando 8 Pro support both 2.4GHz and 900/868MHz?
Yes. Its dual LR1121 RF system supports both bands and provides Gemini, True Diversity and Gemini Xrossband modes. The receiver and its configuration must support the mode you select.
Can I use it with a simulator?
Yes. iFlight specifies both USB-C wired and Bluetooth simulator connectivity, so you can practise without putting another set of props at risk.
Does it need an external ELRS module?
No for the built-in GemX system. The dual-band ExpressLRS transmitter is integrated into the radio.
Can I fit another transmitter module?
Yes. iFlight lists compatibility with TBS transmitter modules. An external module is not included with this radio.
What's in the Box*
- 1 × iFlight Commando 8 Pro GemX radio transmitter in grey
Disclaimer
Available RF power and permitted frequency bands depend on local regulations. Range and link performance also depend on the receiver, antennas, installation, firmware settings and flying environment, because concrete rarely reads the marketing copy.
Still Here?
If you want dual-band ExpressLRS in a compact radio rather than a tower of add-on modules, the Commando 8 Pro is ready for the model memory.
