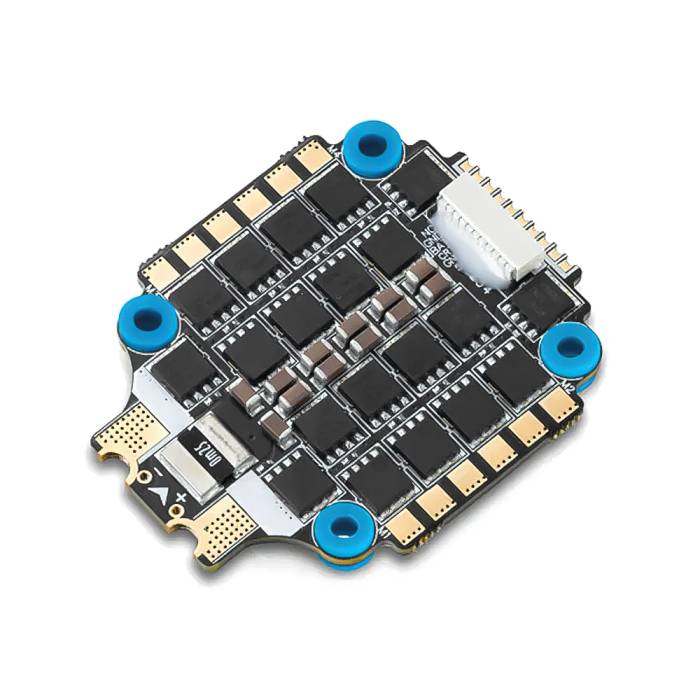

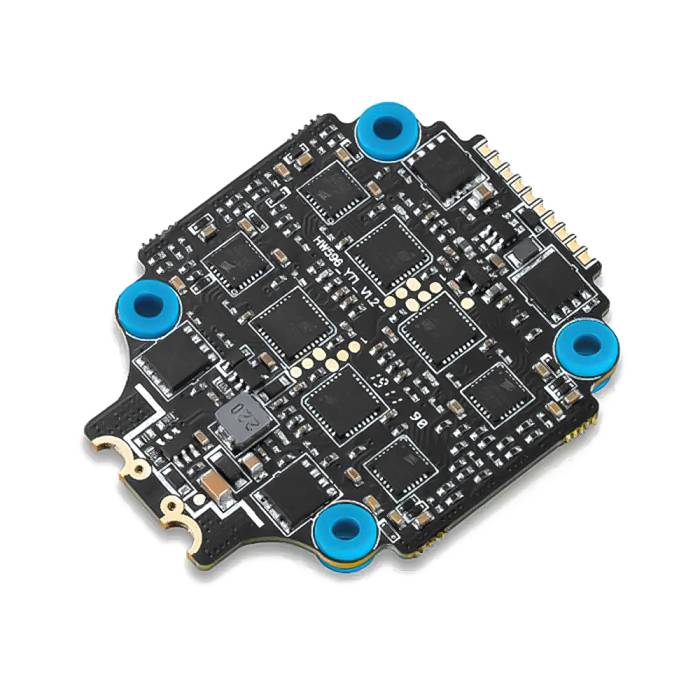

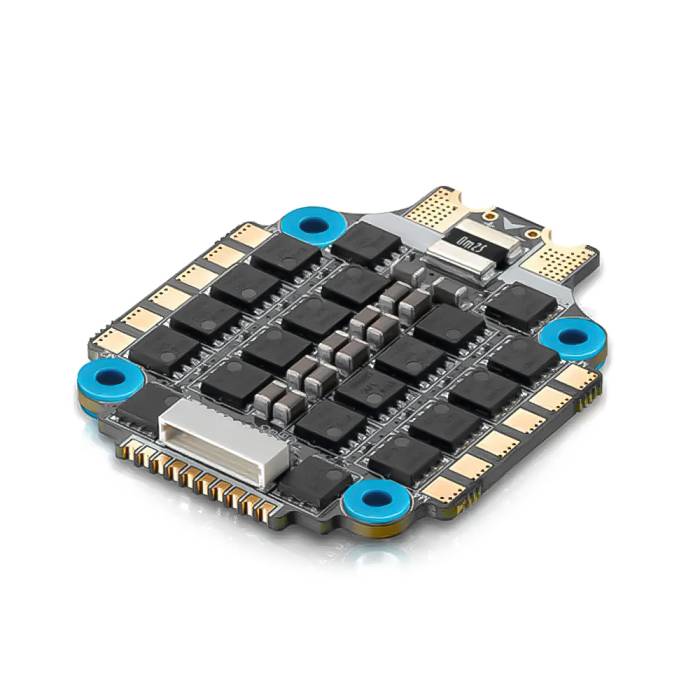

Hobbywing XRotor FPV G2 65A AM32 4in1 ESC

Nothing brings on existential dread quite like watching your massive 7-inch quadcopter execute a spontaneous desync mid-dive because your bargain-bin speed controller couldn't cope with the electrical noise. Say hello to the Hobbywing XRotor FPV G2 65A AM32 4in1 ESC, an absolute tank of a power system designed to keep your magic smoke firmly contained. This updated 30×30 hardware powerhouse dumps the legacy BLHeli_32 architecture to run open-source AM32 firmware natively out of the box, offering faster loop frequencies, sharper motor timing adjustments, and rock-solid reliability under extreme continuous amp draws. Backed by our 10 years of experience in the manufacturing and delivery of commercial FPV systems here at Unmanned Tech Shop UK, we can confidently say this is the hardware upgrade your heavy-lifter or racing stack deserves to survive aggressive cinematic pulls over damp British hills.

Key Highlights

• AM32 Open-Source Architecture: Pre-flashed with modern AM32 firmware for snappier parameter tuning, ultra-smooth startup notes, and a web-based configuration interface that puts aging closed ecosystems to shame.
• Industrial Conformal Coating: Factory-applied moisture protection shields your sensitive field-effect transistors (FETs) from short circuits caused by wet grass, morning dew, or light rain.
• ARM F4 Microcontroller Unit: Powered by a premium 32-bit ARM F4 MCU humming along at 120 MHz to process telemetry, current monitoring, and dynamic PWM refresh rates without breaking a sweat.

Why You Want It

Let's face it: you are tired of tuning out prop wash oscillations on a stack that shakes like a leaf. The Hobbywing XRotor FPV G2 mitigates electrical noise before it ever hits your Betaflight blackbox, using internal high-performance MOSFETs and native support for variable PWM refresh rates from 48 kHz to 96 kHz. By dynamically shifting the frequency, it maintains peak torque at low RPM while delivering silky smooth throttle response at full punch-out. The hardware includes a precise onboard voltmeter for real-time battery status, built-in shock-absorbing mounting grommets to damp mechanical vibrations, and clean solder tabs tailored for beefy 12AWG power leads. It is the ultimate insurance policy for power-hungry 4-6S rigs spinning aggressive multi-blade props.

Specifications

• Weight: 15g (excluding external power wires)
• Continuous Current: 65A per channel
• Peak Current: 80A per channel (10 seconds)
• Input Voltage: 3-6S LiPo Cells
• Processor: 32-bit ARM F4 MCU at 120 MHz
• Firmware: AM32 (XROTOR65 F421)
• PWM Frequency Range: 48–96 kHz (variable/dynamic adjustment)
• Telemetry & Monitoring: Built-in voltmeter and real-time amp sensor
• Signal Protocols: DShot 300 / DShot 600, traditional PWM
• Mounting Dimensions: 30.5 × 30.5 mm holes (with shock-absorbing dampeners)
• Physical Size: 52 × 42 × 6.6 mm
• Water Resistance: Factory conformal coated
• BEC Output: 5V at 0.6A

FAQ

How do I configure settings on this AM32-powered Hobbywing ESC?

Because this version runs open-source AM32 firmware instead of BLHeli_32, you can adjust your variable PWM frequencies, motor direction, and custom KV configurations directly via the web-based parameter tool at am32.ca using your Betaflight flight controller passthrough.

Does this 65A 4in1 ESC require an external capacitor?

Yes. While Hobbywing includes heavy-duty internal ceramic filtering and a protective conformal coating, running a high-power 6S quadcopter without a low-ESR capacitor soldered to the main battery pads will instantly subject your F4 MCU to catastrophic voltage spikes.

What’s in the Box*

• 1× Hobbywing XRotor FPV G2 65A AM32 4in1 ESC
• 1× 12AWG Silicone Power Wire Pair (Red/Black) with XT60 Connector
• 1× Multi-pin Flight Controller Wire Harness
• 1× Set of Shock-Absorbing Rubber Mounting Grommets

*Pack contents may vary slightly depending on factory batches, but we will make sure you get the actual genuine hardware you paid for.

Disclaimer

This is an exceptionally powerful multi-rotor speed controller capable of pushing a combined burst of over 300 Amps. It will happily melt flesh, vaporize cheap solder, or snap carbon fibre arms if configured incorrectly. Always remove your propellers before connecting a 6S battery to flash firmware, map motor directions, or test bidirectional DShot telemetry within Betaflight or iNav.

Still Here?

Your current 4in1 speed controller is holding onto dear life by a thread, and your blackbox gyro logs look like a horror film. You can either buy this genuine, conformal-coated Hobbywing powerhouse now, or you can risk an spectacular mid-air desync during your next flight. Add it to your cart—our warehouse team likes having things to pack.
