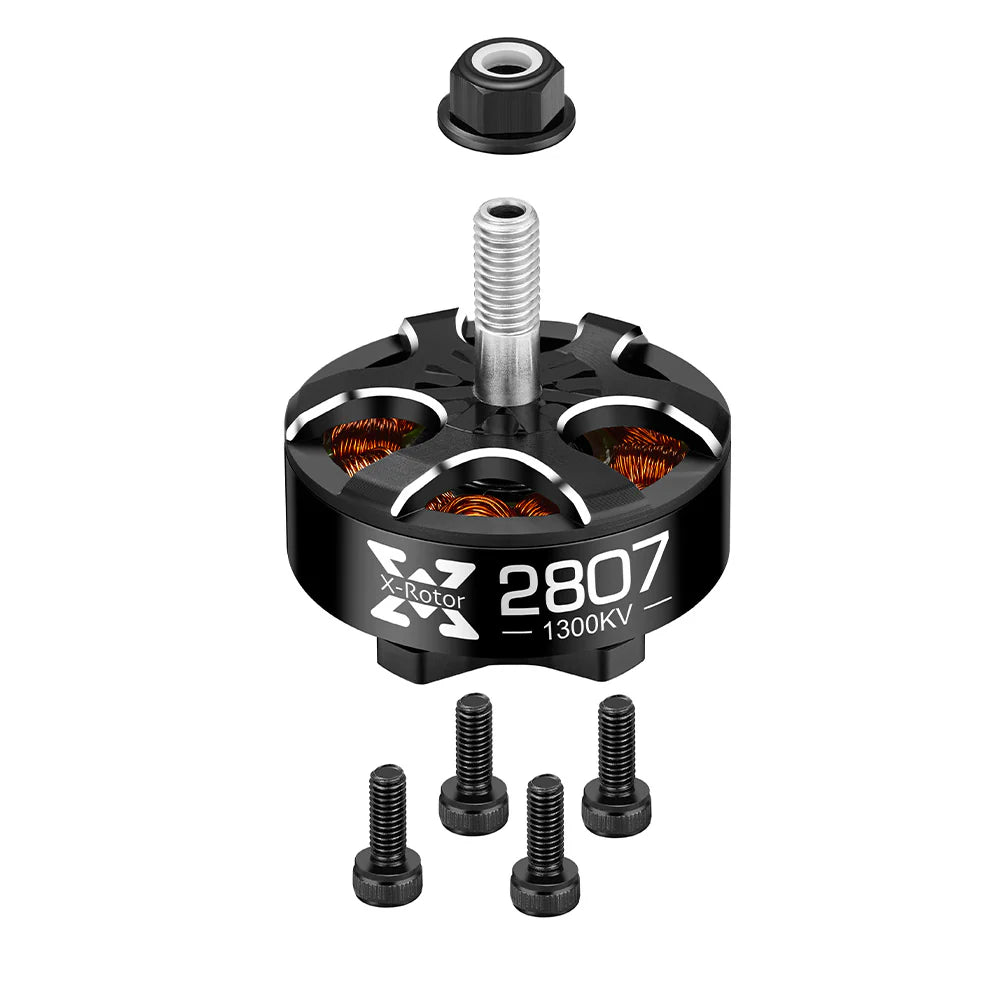

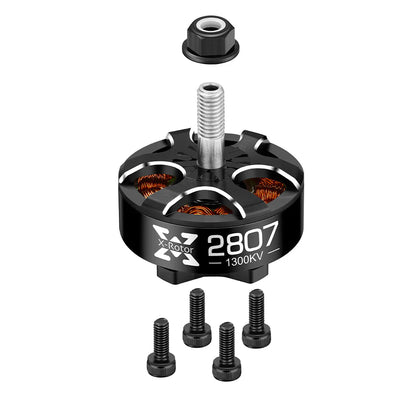

Hobbywing XRotor 2807 FPV Brushless Motor (1300KV / 1500KV / 1700KV)

Stop trying to make small 2207 motors happen on a 7-inch frame. You're just cooking your windings, destroying your battery efficiency, and making your electronic speed controller cry for help. The Hobbywing XRotor 2807 Brushless Motor series is the ultimate heavy-lift hardware upgrade designed explicitly for under-powered 6-inch and 7-inch long-range FPV drones. Available in 1300KV, 1500KV, and 1700KV variants, this high-torque macro quad motor series is engineered to carry heavy cinematic camera rigs across wide valleys without bursting into flames. At Unmanned Tech Shop UK, we have spent 10 years in the manufacturing and delivery of commercial FPV systems, meaning we know exactly how fast cheap stators turn into magic smoke. Featuring premium 12N14P slot-pole geometry and N52 arc-shaped strong magnetic tiles, these motors deliver the relentless torque needed to spin large multi-blade propellers cleanly, smoothly, and reliably.

Key Highlights

• Active Airflow Cooling: Features a specialized rotor thermal dissipation structure that accelerates airflow through the stator, reducing operational temperatures and extending maximum full-throttle runtime by up to 40%.
• Anti-Slip Propeller Mount: Designed with an integrated tooth-groove textured pattern on the adapter surface to mechanically lock your props down and prevent propeller slippage during high-torque freestyle punch-outs.
• Extreme Thermal Headroom: Wound with premium multi-strand enameled copper wire rated for 220°C high-temperature resistance (H-Class insulation) to ensure complete electrical reliability under heavy structural loads.
• Premium Stator Construction: Utilizes high-performance 0.2mm silicon steel laminations to decrease internal resistance and bump mid-to-high throttle efficiency by roughly 4%.

Why You Want It

Look, we know you’re building a long-range cruiser to film a mountain you’ll never actually climb. These ~58g stators provide the raw torque necessary to spin massive blades without the mid-air stuttering mess of an FPV motor that's clearly out of its depth. By packing an increased slot full rate (up by more than 5%), Hobbywing squeezed maximum electrical performance into a compact Φ34mm × 20.5mm profile. Pair them with the recommended XRotor FPV G2 65A AM32 4in1 ESC, and your Betaflight or iNav gyro traces will look cleaner than ever. It's built tough enough with a titanium-hybrid D5+M5 shaft to survive your inevitable "unplanned lithobraking" event into the hillside.

Specifications Comparison

FAQ

Which KV option should I choose for my long-range drone build?

Select the 1300KV variant if your priority is maximum flight time, battery efficiency, and smooth cruising on a standard 6S LiPo setup. The 1500KV option balances throttle resolution and pop on 4S to 5S cinematic rigs, while the 1700KV variant is engineered for high-speed 7-inch drone racing or aggressive freestyle maneuvers on 3S to 4S power systems.

What size mounting screws does the XRotor 2807 motor use?

The motor base features an industry-standard 19×19mm mounting footprint that requires M3 screws. Always measure your carbon fiber frame arm thickness before tightening to guarantee your mounting bolts do not pierce the internal copper stator windings and cause a short circuit.

What is the best ESC to pair with the Hobbywing 2807 motor?

For optimal performance, dynamic motor timing adjustment, and high reliability, it is highly recommended to pair this motor with the Hobbywing XRotor FPV G2 65A AM32 4in1 ESC, which safely manages the peak current demands of large stators.

What’s in the Box*

• 1× Hobbywing XRotor 2807 Brushless FPV Motor (1300KV, 1500KV, or 1700KV depending on selection)
• 1× M5 Flanged Aluminum Locknut
• 1× Pack of M3 Motor Mounting Screws

*Pack contents may vary slightly depending on factory batches, but we will make sure you get the actual hardware you paid for.

Disclaimer

Warranty does not cover tree-related incidents, water submersions, or using the motor spinning at 20,000 RPM as a high-speed finger pencil sharpener. FPV long-range aircraft are dangerous; always remove your 7-inch props before configuring bidirectional DShot telemetry, testing motor directions, or flashing firmware on your workbench.

Still Here?

Stop scrolling and start building. Your current rig is under-motored and you know it. You can either buy these genuine Hobbywing 2807 long-range workhorses now, or watch your quad desync and fall out of the sky on your next paid shoot while the client watches. Add them to your cart—we need the shelf space anyway.
