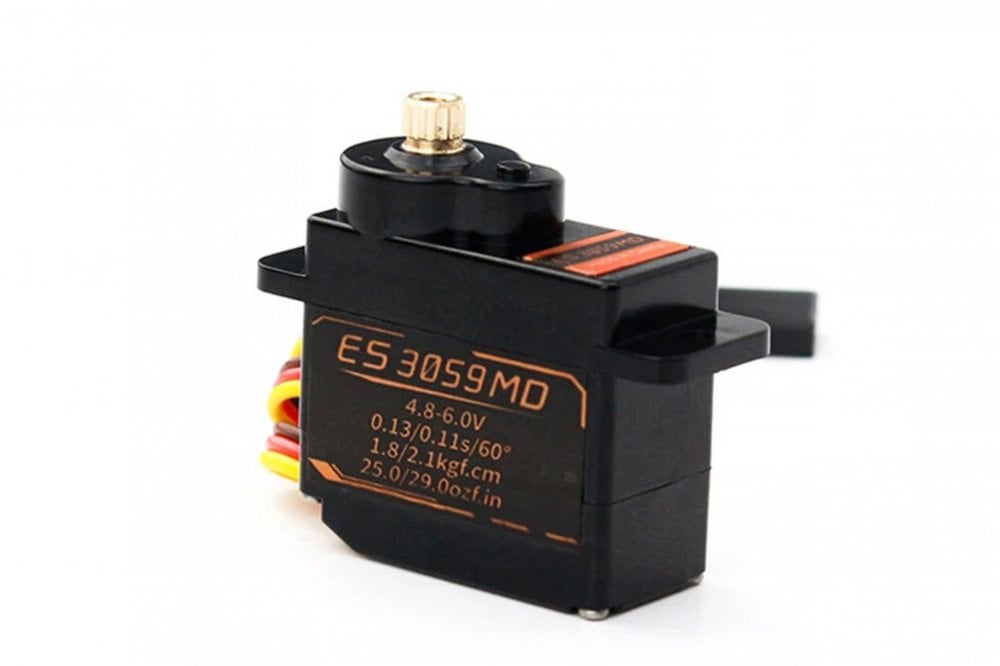

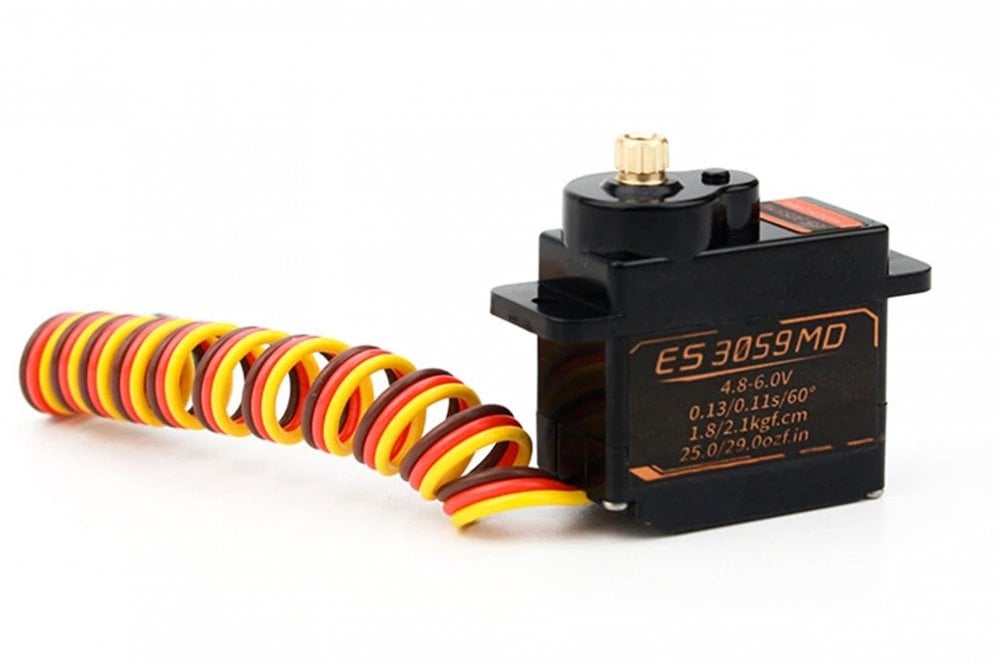

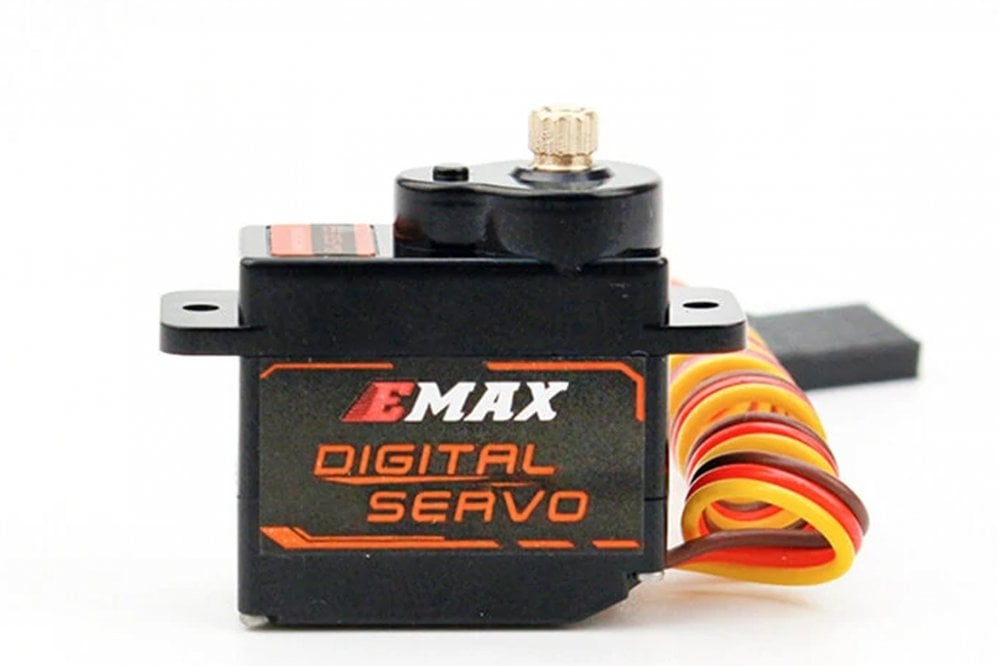

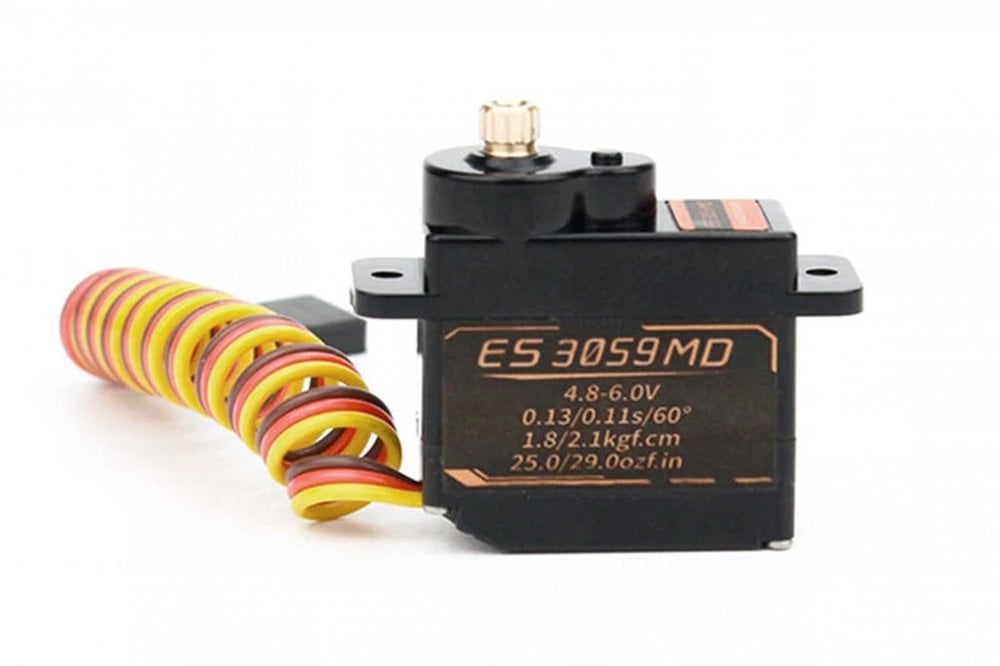

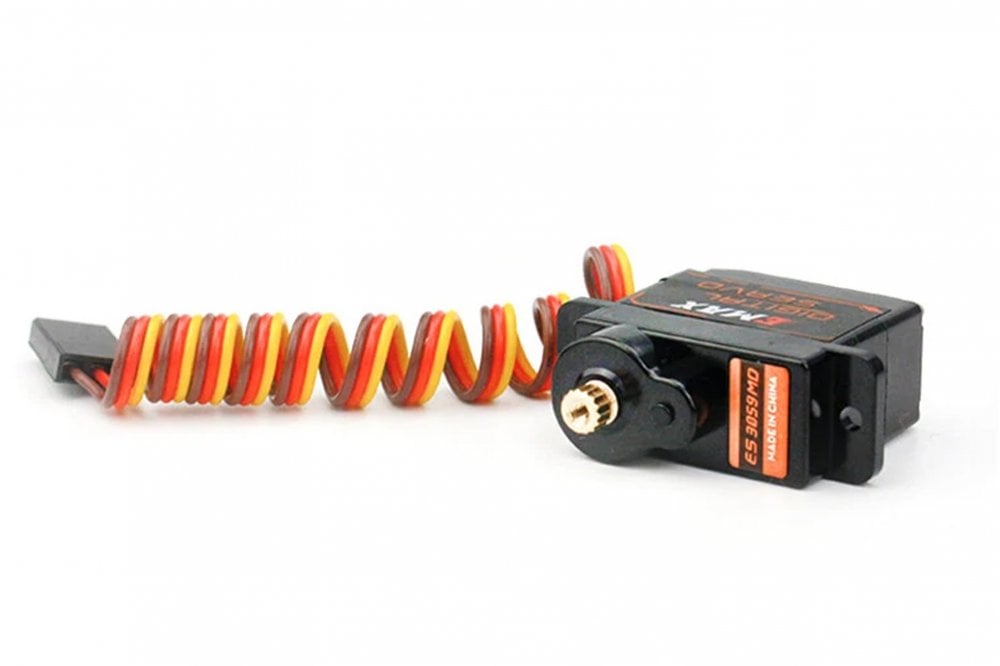

EMAX ES3059MD: 12 Grams of 'Actually Works'

Welcome to the glamorous world of actuators. While you were busy dreaming of 8K video feeds and long-range world records, this 12g EMAX ES3059MD was sitting in a warehouse, waiting to be the only thing standing between your RC model and a very expensive hole in the ground. It’s digital, it’s metal-geared, and it’s significantly more reliable than your last relationship.

Why You Want It

Let’s be real: you’re here because you stripped the plastic gears on a cheap knock-off and now you’ve learned your lesson. The ES3059MD features actual metal gears, because EMAX knows that you treat your gear with the same 'gentle touch' as a wrecking ball. It’s small enough to fit in your tightest builds but strong enough to keep your control surfaces from fluttering like a caffeinated moth.

Specs

• Weight: 12g (About the weight of three tea bags, for our UK friends).
• Operating Voltage: 4.8V to 6.0V (Standard stuff, don't try to power it with a car battery).
• Stall Torque: 1.6 kg.cm @ 4.8V / 2.0 kg.cm @ 6.0V (Plenty of 'oomph' for your mini-quads and fixed-wings).
• Speed: 0.12 sec/60° @ 4.8V / 0.10 sec/60° @ 6.0V (Faster than your reaction time after three pints).
• Gear Material: Metal (Because plastic is for LEGOs, not for flight).
• Signal: Digital (For the precision nerds who can actually tell the difference).

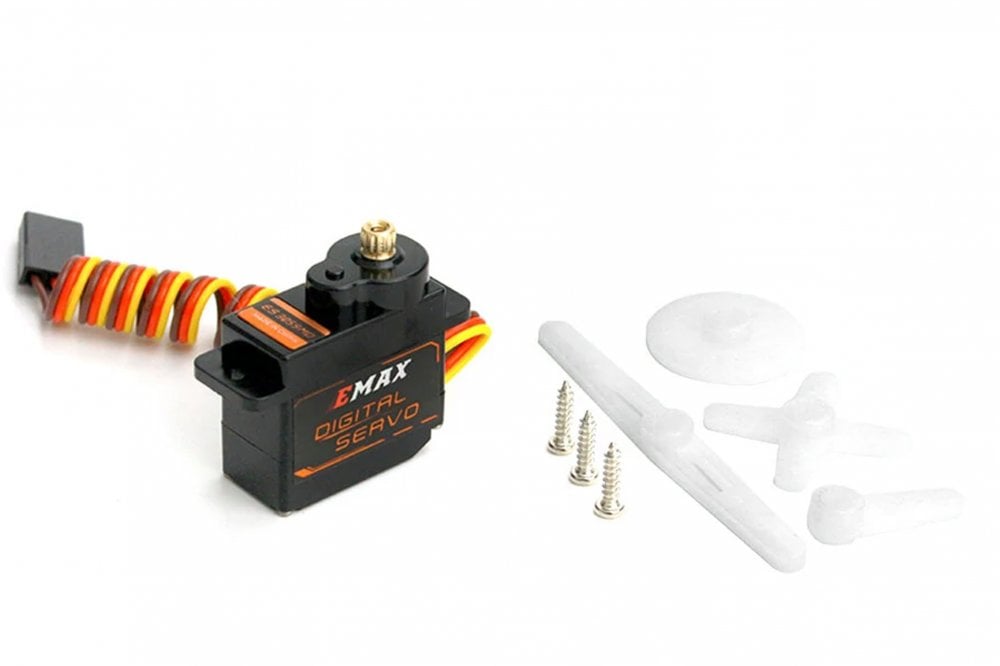

In the Box

• 1x EMAX ES3059MD Digital Servo
• 1x Mounting Hardware Kit (Various arms and screws that you’ll definitely lose under the workbench)

Compatibility

Works with any PWM-based flight controller, RC receiver, or that Arduino project you’ve been 'finishing' since 2021. If it speaks PWM, this servo listens.

Highlights

• Metal Gears: Designed to survive your 'unintentional rapid disassembly' events.
• Digital Precision: Less jitter, more 'pointing exactly where you told it to'.
• 12g Form Factor: The 'Goldilocks' weight for park flyers and robotics.

Notes

Ensure your BEC can handle the current draw if you're running multiple servos. Don't come crying to us if your 5V rail sags harder than a soggy biscuit.

Disclaimer

Unmanned Tech is not responsible for any robots that gain sentience and refuse to follow your PWM commands. Use responsibly.

Still Here?

You’re either a crawler-bot or someone who enjoys reading fine print. If you need a reliable, metal-geared digital actuator for your next FPV wing or robotic arm, stop over-analyzing the stall torque and just put it in the basket. Your project is waiting. #EMAX #RCUK #Robotics #ServoLife #FPVAddict
