Quick Answer
Construction site monitoring with RTK drones uses centimetre-accurate aerial surveys to track earthwork progress, measure stockpile volumes, and verify grading against design plans. An Emlid Reach base station provides real-time corrections to the drone, producing orthomosaics and 3D models accurate to 1-3 cm horizontally, enabling reliable weekly progress comparisons and volume calculations.
Why Use Drones for Construction Site Monitoring?
Traditional construction monitoring relies on ground-based surveys, manual measurements, and periodic walk-throughs. These methods are slow and capture only a fraction of what is happening on site. A drone can survey a 50-acre site in under 30 minutes, producing a complete georeferenced record of conditions at that moment.
The data from a single flight feeds multiple purposes: an orthomosaic for visual tracking, a 3D surface model for elevation analysis, and measurable outputs for volume calculations. Compare those outputs week to week and you have a continuous record of what changed, where, and by how much.
This matters because construction disputes often hinge on what was done and when. Drone surveys create an objective, timestamped record that reduces disagreements between contractors, clients, and project managers.
RTK positioning makes drone surveys reliable enough for measurement, not just photography. Without centimetre-level accuracy, you cannot trust volume numbers or elevation comparisons. An Emlid Reach base station streaming corrections to the drone in real time delivers that accuracy consistently.
Equipment for an RTK Construction Drone Setup
Your construction monitoring rig has three core components: the drone, the RTK positioning system, and the ground control reference.
The Drone
Almost any drone capable of carrying a mapping camera and receiving RTK corrections will work. RTK-ready drones from DJI (Mavic 3 Enterprise, Matrice series) and Autel (EVO II Enterprise) are common choices. If you are building a custom platform, the Emlid Reach M2 provides the GNSS receiver you need on the aircraft.
For construction monitoring, camera quality matters more than flight speed. A 20-megapixel sensor at 60-80 metres above ground gives 1.5-2 cm ground sampling distance, adequate for progress tracking and volume calculations.
The Base Station
The base station is the most important piece of the accuracy puzzle. It sits on a known point and streams correction data to the drone throughout the flight. The Emlid Reach RS2+ and Reach RS4 Pro are both built for this role. They track GPS, GLONASS, Galileo, BeiDou, and QZSS simultaneously, and their IP67 weather ratings mean they can sit out on a dusty, rainy construction site without complaint.
The base station does double duty on a construction site. Before the flight, use it as a rover to place or verify ground control points. Then set it up as a base to stream RTK corrections to the drone. One device, two jobs. If you want a complete package, the Reach RS2+/M2 UAV Mapping Kit bundles everything you need for both ground and air sides of the workflow.

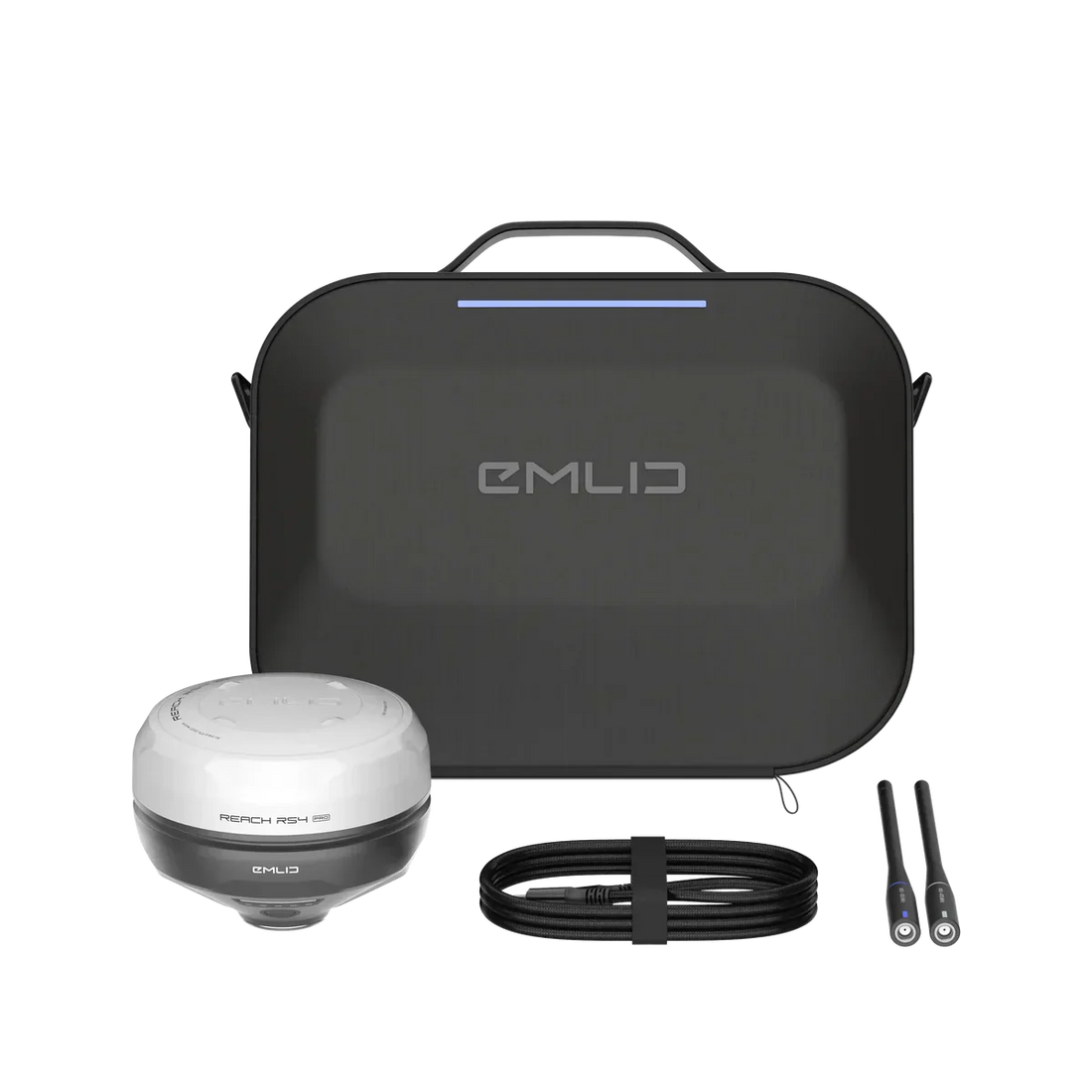

Our Emlid Reach RTK GNSS Receivers: Complete Guide covers the full product range, and the RS4 vs RS3 vs RS2+ comparison helps you pick the right receiver for your site conditions.
Ground Control Points
Even with RTK, placing a small number of ground control points is good practice. They serve as independent accuracy checks on your processed data. Five to eight well-distributed GCPs across a typical construction site is usually enough. Use permanent or semi-permanent markers on stable ground away from active earthwork zones, and resurvey them periodically to confirm they have not shifted.
Setting Up the Base Station on a Construction Site
Base station placement is a decision you should think about once, then lock in for the duration of the project. Consistency in base position means consistency across all your weekly surveys.
Choosing a Base Location
Pick a point with clear sky visibility in all directions, at least 15 degrees above the horizon. Construction sites are full of obstructions: cranes, scaffolding, stacked materials, and partially completed structures. Get the base above or away from these if possible. The roof of a site office or a dedicated survey pillar works well.
The base should be on stable ground that will not be disturbed by construction activity. Mark the point permanently with a driven peg or set bolt.
Configuring the Base
Power on the Reach receiver and open Emlid Flow. Set the device to base mode and configure it to log raw data at 1 Hz. Enter the known coordinates of your base point, or average the position over a 5-10 minute collection period.
For RTK streaming, you have two options depending on your site's internet connectivity. If you have reliable cellular coverage, use Emlid NTRIP Caster to stream corrections over the internet. If not, use the Local NTRIP option in Emlid Flow, which creates a direct correction link between base and drone over a local network. Our guide to setting up Emlid Reach as base and rover walks through both methods in detail.
Always enable raw data logging on the base, even when using RTK. If the RTK link drops, you can fall back to PPK post-processing using the base logs. The RTK vs PPK comparison article explains when each approach is most appropriate.
Planning and Flying Weekly Drone Surveys
Consistency is the foundation of useful construction monitoring. The goal is not a single accurate map but a series of comparable maps that show change over time. That means flying the same area, at the same height, with the same camera settings, on a regular schedule.
Establishing a Flight Template
Create a flight plan that covers the full site boundary plus a small buffer. Save it as a reusable template. Most flight planning apps (DJI Pilot, Litchi, QGroundControl) support this. Using the same template every week ensures your orthomosaics align properly and your volume calculations are based on consistent data.
Set the flight height to give you 1.5-2.5 cm GSD. For a 20-megapixel camera, that typically means 50-80 metres above ground level. Use 75-80% front overlap and 65-70% side overlap. These settings produce clean point clouds even over flat surfaces like unfinished pads.
Plan flights for consistent lighting. Mid-morning or mid-afternoon gives visible shadows without being harsh. Avoid midday when surfaces appear washed out.
Flight Day Workflow
On each survey day, follow the same sequence. Arrive on site. Verify the base station is powered on and logging. Check satellite availability in Emlid Flow. Confirm RTK fix status on the drone before launching. Fly the saved mission. Confirm base logs are recording throughout. Land and download the data.
The entire field operation, from arrival to departure, typically takes 30-60 minutes for a site up to 50 acres. That is faster than a single manual walk-through, and the data you collect is far more comprehensive.
If weather or scheduling prevents a flight on the planned day, fly as soon as possible and note the deviation in your records. Weekly surveys that drift to 10 or 14 days are still useful, but consistent weekly intervals give the cleanest progress comparisons.
Processing: From Photos to Maps and Models
Common processing tools include DroneDeploy, Pix4D, Agisoft Metashape, and WebODM. The choice matters less than the consistency of your processing settings.
Key Outputs for Construction Monitoring
Each flight produces three primary outputs:
- Orthomosaic: A single geo-corrected aerial image of the entire site. Use this for visual progress comparisons, measuring distances and areas, and overlaying design plans.
- Digital Surface Model (DSM): A 3D representation of all surface elevations, including buildings, stockpiles, and equipment. This is what you use for volume calculations and cut/fill analysis.
- Point cloud: A dense set of 3D points used for detailed analysis, cross-section generation, and comparison with design models.
When processing, use the same coordinate system, ground sampling resolution, and filtering settings every time. Changing processing parameters between flights introduces variability that shows up as false elevation differences in your comparisons.
Our PPK Drone Mapping Workflow guide covers the full processing pipeline, including geotagging, point cloud generation, and accuracy verification.
Accuracy Verification
After processing, check the RMSE (Root Mean Square Error) of your GCPs and checkpoints. With RTK positioning and good ground control, you should see 1-3 cm horizontal accuracy and 2-5 cm vertical accuracy consistently. If accuracy degrades, investigate before using the data for volume calculations or payment applications.
Common causes of accuracy loss include poor base station placement, RTK link drops during flight, and insufficient image overlap. The raw data logs from the Reach base and the drone's GNSS receiver will show you exactly what happened.
Progress Tracking: Comparing Surveys Over Time
The real value of weekly drone surveys emerges when you start comparing outputs. Overlapping orthomosaics from successive survey dates shows you exactly what changed, and comparing digital surface models quantifies those changes in cubic metres of material moved.
Orthomosaic Comparison
Most construction monitoring platforms support overlaying orthomosaics from different dates. You can view them side by side, blend them with colour coding, or use a flicker comparison that rapidly switches between dates. Each method highlights different aspects of site progress.
Side-by-side views work for presenting progress to stakeholders. Colour-blended overlays, where one date appears in red and another in blue, make earthwork changes immediately obvious. Flicker comparisons are the fastest way to spot subtle changes that might be missed on a single view.
These visual comparisons answer practical questions: has the excavation in sector B reached design depth? Are the foundations in building A poured? Has material been delivered to the staging area? A quick comparison of this week's orthomosaic against last week's gives immediate answers.
Design Overlay
Import your CAD design files or grading plans as an overlay on the orthomosaic. This shows you exactly where current conditions deviate from the design. Superintendents can walk the site with a tablet showing the drone map overlaid with the planned layout, making it easy to verify that work is proceeding in the right place and at the right elevation.
Timeline and Documentation
Each weekly survey becomes part of a chronological record that documents every phase of construction. This timeline supports dispute resolution, payment applications, planning compliance, and as-built records. Stakeholders who cannot visit the site can review the orthomosaic sequence to stay informed.
Volume Calculations: Stockpiles, Cut, and Fill
Volume calculation is where drone survey data directly translates into financial decisions. Material quantities affect payment applications, ordering schedules, and project budgets. Getting accurate numbers matters.
How Drone Volume Calculation Works
The process works by comparing two surface models. For a stockpile volume, you define the base of the pile (the reference surface) and measure the material above it. For cut/fill analysis, you compare the current ground surface against a design surface or a previous survey.
Photogrammetry software generates a dense 3D point cloud from your drone images. From this, it creates a digital surface model with an elevation value for every pixel. The software then integrates the difference between your reference surface and the measured surface to calculate volume.
The basic formula is straightforward: volume equals the sum of elevation differences multiplied by the area of each pixel. A cut/fill report gives you three numbers: cut volume (material removed), fill volume (material added), and net volume (the difference between the two).
Stockpile Measurements
Stockpile volumes are one of the most common drone calculations on construction sites. The workflow is simple: draw a polygon around the base of the pile in your processing software, and the software calculates the volume between the current surface and a reference plane defined by the points around the base.
With RTK-positioned imagery and 1.5-2 cm GSD, stockpile volume accuracy is typically within 2-5% of the true volume. That is more than adequate for most construction applications, where the material itself has variability in density and moisture content that introduces comparable uncertainty.
Fly stockpile surveys at the same height and overlap each time. Stockpiles change shape as material is added or removed, and consistent survey parameters ensure your volume comparisons are accurate. Track the weekly volumes in a spreadsheet or project dashboard to monitor material consumption rates and predict when reorders are needed.
Cut and Fill Analysis
Earthwork projects are measured in cut and fill. Cut is the volume of material excavated. Fill is the volume of material placed. Comparing two DSMs, either from consecutive surveys or from a survey against a design surface, gives you both quantities.
The results are typically presented as a heatmap. Areas where the current surface is above the reference appear in one colour (fill), and areas where it is below appear in another (cut). The total volumes are summarised in a report that can be attached to payment applications or progress claims.
For monthly payment applications, compare the current month's DSM against the previous month's. The difference gives you the volume of material moved during that period. For design compliance, compare against the engineering design surface to see how close grading is to the specified elevations.
Accuracy Factors for Volume Calculations
Several factors influence the accuracy of drone-based volume calculations:
- Ground sampling distance: Smaller pixels mean more precise surface representation. 1.5-2 cm GSD is the sweet spot for most construction volumes.
- Image overlap: Higher overlap produces denser point clouds, which means better surface definition on steep pile faces and excavated slopes.
- Stockpile shape: Irregular piles with overhanging edges or concave surfaces are harder to measure accurately than simple convex shapes.
- Reference surface definition: The points you choose to define the base of a stockpile or the reference for cut/fill directly affect the result. Be consistent with your selection.
- Vegetation and obstructions: Grass, standing water, and equipment parked on surfaces all affect the point cloud. Plan flights when surfaces are clear.
With good technique and RTK positioning, expect volume accuracy within 2-5% for stockpiles and 1-3% for larger earthwork areas.
Common Mistakes and How to Avoid Them
Skipping Ground Control
RTK positioning is accurate, but it is not infallible. A small number of GCPs, even just four or five, provides an independent accuracy check that catches problems the RTK system cannot detect on its own. Think of them as insurance for your data quality.
Changing Flight Parameters Between Surveys
If you change flight height, overlap, or camera settings between weekly surveys, your results become harder to compare. Lock in your flight template and use it consistently. If you must change parameters, note the change and understand how it affects your comparisons.
Placing the Base Near Obstructions
A base station next to a crane, building, or large stockpile will have degraded satellite visibility. The correction quality drops, and so does the accuracy of your entire survey. Take the time to find a clear location with good sky visibility in all directions.
Ignoring Weather Conditions
High winds move the drone and blur images. Heavy rain obscures surface detail. Low sun angles create long shadows that confuse photogrammetry software. Fly in calm, clear conditions when possible, and note any weather-related issues in your survey records.
Not Logging Raw Data
Raw GNSS data from both the base and rover provides a PPK fallback if the RTK link drops mid-flight. Without those logs, a dropped correction link means the affected images cannot be accurately positioned. Enable raw logging on every flight, every time. It costs nothing and takes seconds to configure.
Building a Sustainable Monitoring Programme
The best construction monitoring programme is one that runs reliably for the entire project duration. That means keeping the equipment simple, the workflow repeatable, and the data organised.
Assign one person to own the drone survey schedule. They do not need to be a surveyor, but they need to understand the flight template, base station setup, and processing workflow. An Emlid Reach system with Emlid Flow keeps the field operation straightforward enough that a trained site engineer can handle it.
Store each survey's outputs in a consistent folder structure with the date, deliverable type, and any associated reports. Cloud platforms like DroneDeploy and Propeller manage this automatically. If you process locally, set up the folder structure yourself and stick to it.
Schedule surveys at the start of the project, not ad hoc. A fixed weekly slot makes monitoring a predictable part of the project rhythm. If earthwork activity peaks mid-week, fly on Friday so the weekly volume report captures the most work done.
Frequently Asked Questions
Q: How accurate are drone volume calculations compared to traditional survey methods?
A: With RTK positioning and good photogrammetry technique, drone volume calculations are typically within 2-5% of traditional survey methods for stockpiles and 1-3% for large earthwork areas. The main sources of uncertainty are stockpile shape irregularity and the definition of the reference surface, not the drone data itself.
Q: Do I still need ground control points with RTK?
A: Yes, a small number. RTK provides accurate positioning for each image, but ground control points give you an independent way to verify that accuracy. Four to six well-distributed GCPs are usually sufficient. They catch problems that the RTK system cannot self-detect.
Q: How often should I fly construction surveys?
A: Weekly surveys are standard for active construction sites with ongoing earthwork. For sites in early groundwork phases where conditions change rapidly, twice-weekly flights may be justified. During slower phases like structural work or finishing, fortnightly or monthly surveys may be adequate. Match your survey frequency to the pace of change on site.
Q: Can I use the same Emlid base station for both drone surveys and ground surveying?
A: Yes. A Reach RS2+ or RS4 Pro can function as a rover for placing GCPs and as a base station for the drone. Use it in RTK rover mode to survey your control points, then switch it to base mode for the drone flight. The Emlid Flow app makes switching between roles straightforward.
Q: What happens if the RTK link drops during a flight?
A: If you have raw data logging enabled on both the base and the drone's GNSS receiver, you can post-process the flight data using PPK. This corrects any images that lost RTK fix. Always enable raw data logging as a fallback, regardless of whether you plan to use RTK or PPK as your primary method.
Q: Which software should I use for processing construction drone data?
A: DroneDeploy, Pix4D, and Agisoft Metashape are the most widely used options. DroneDeploy is popular for its ease of use and built-in construction tools (cut/fill maps, stockpile reports). Pix4D offers more control over processing parameters. WebODM is a capable open-source alternative. Choose based on your team's experience and the complexity of your deliverables.
