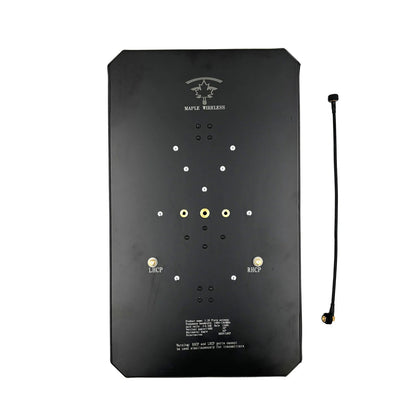

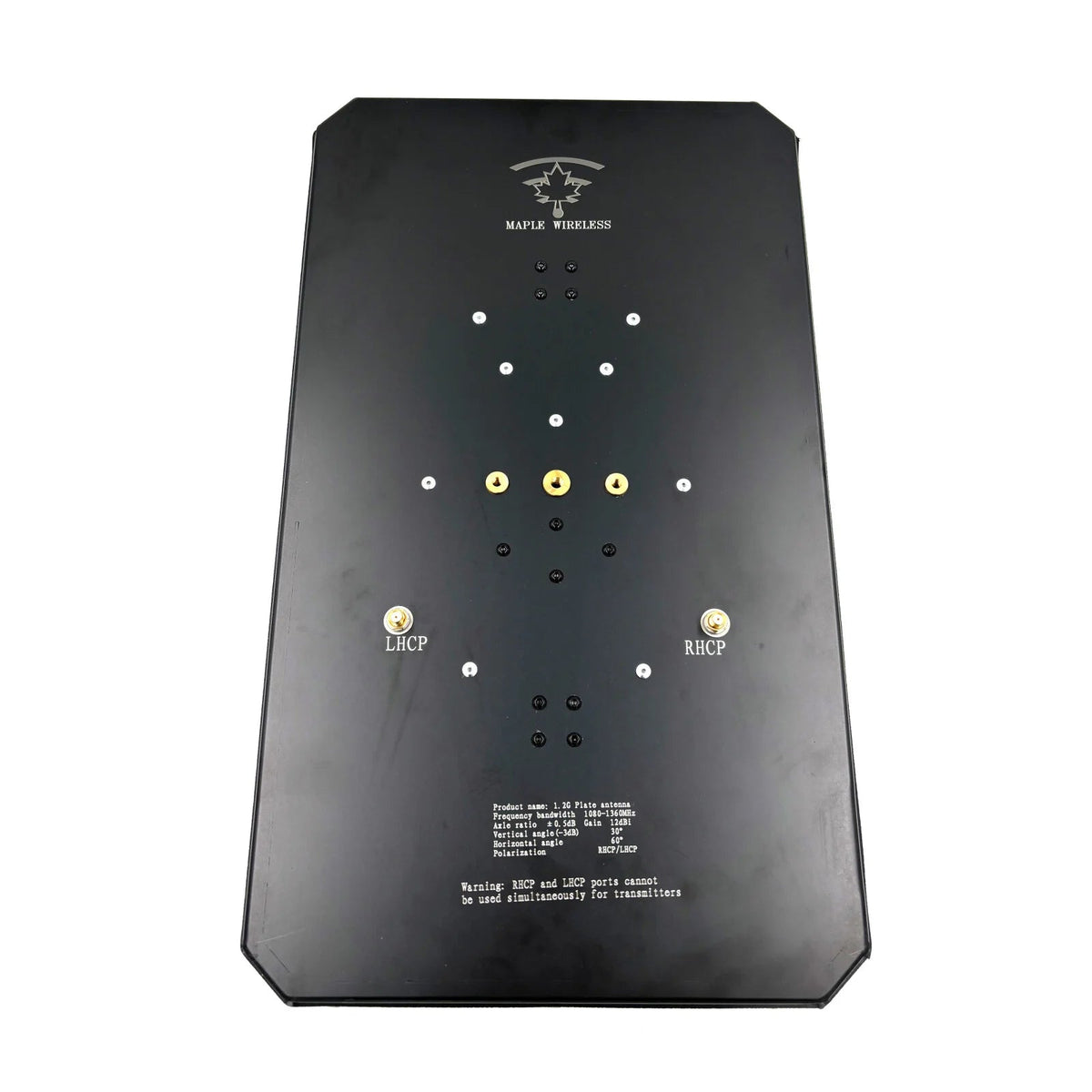

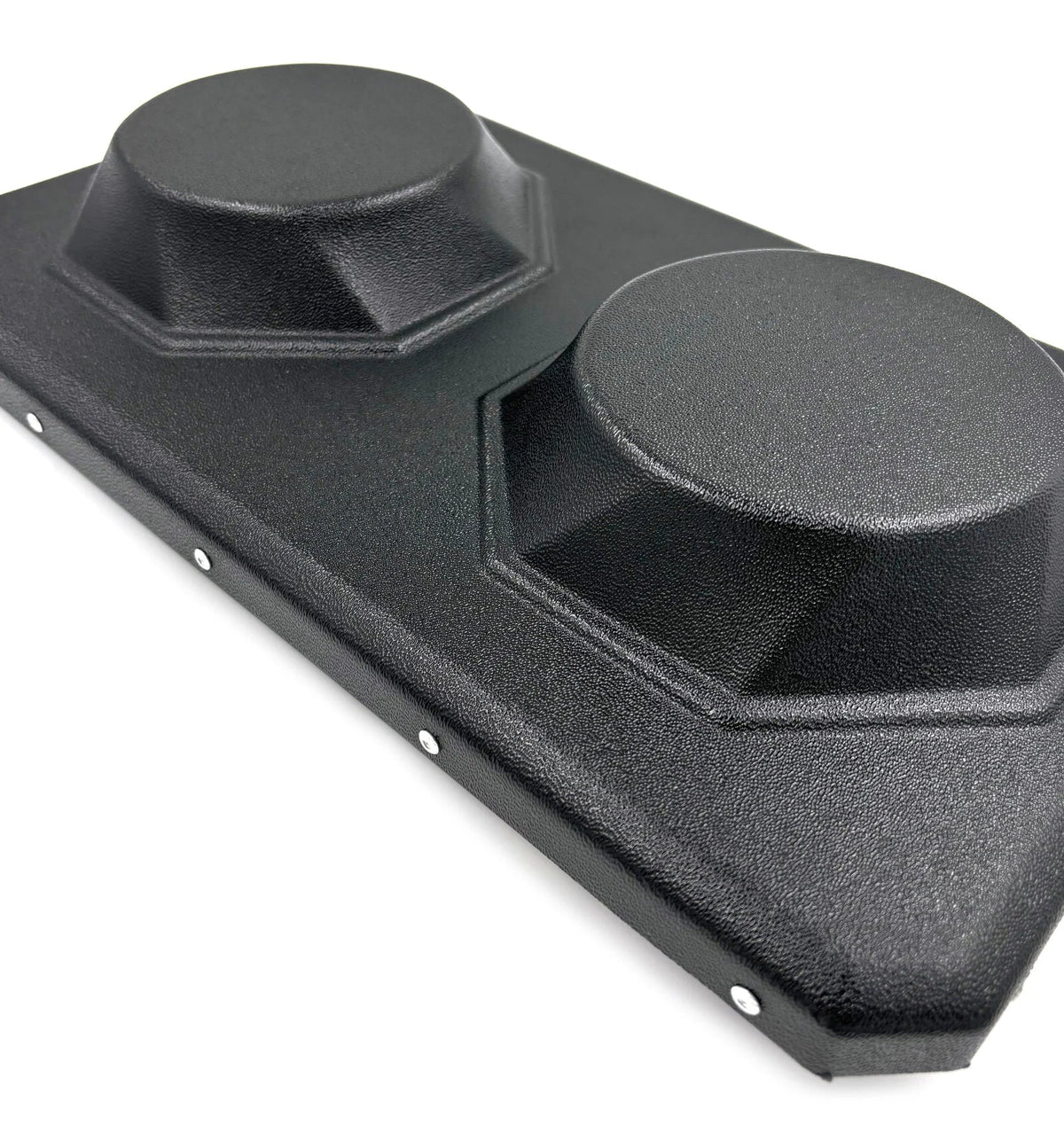

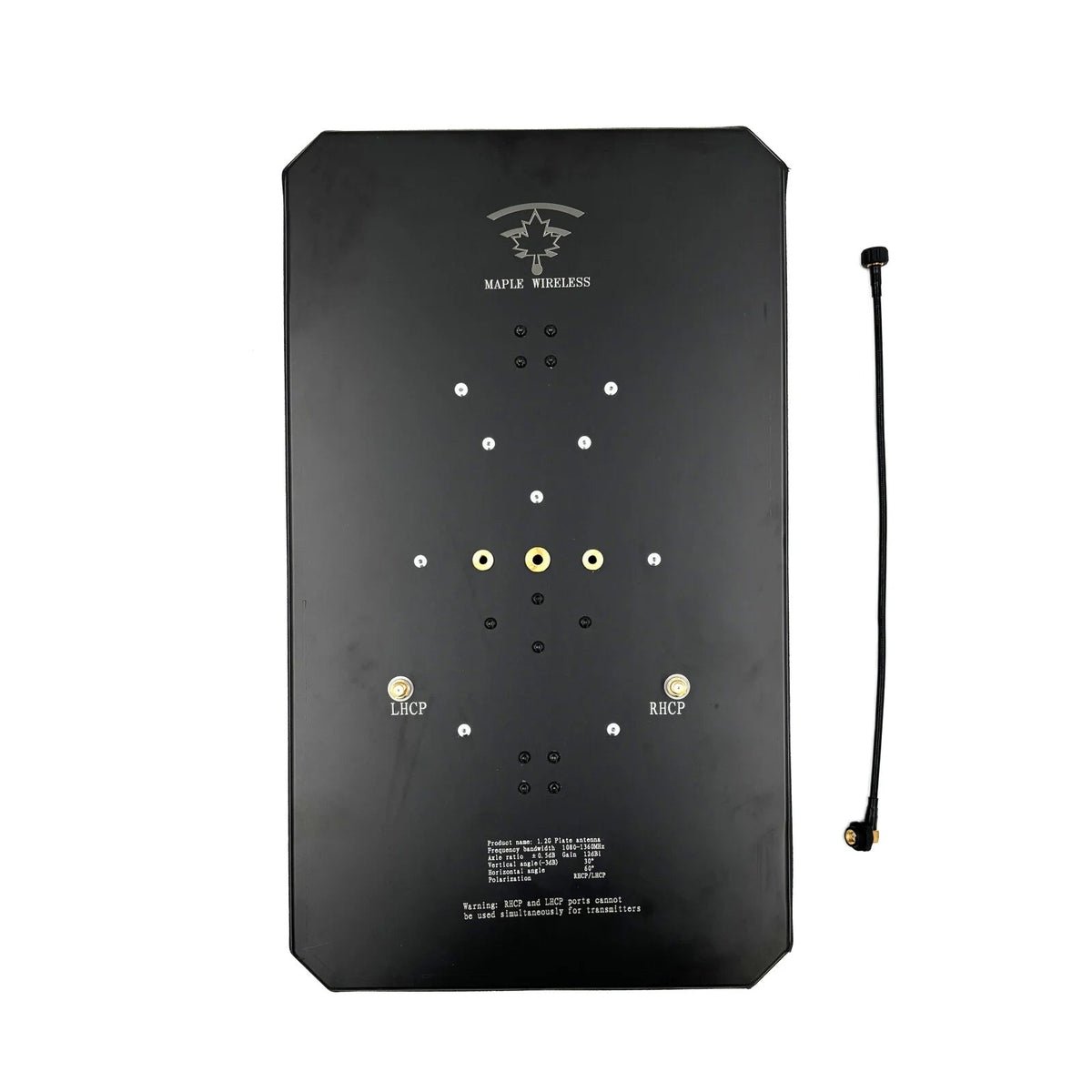

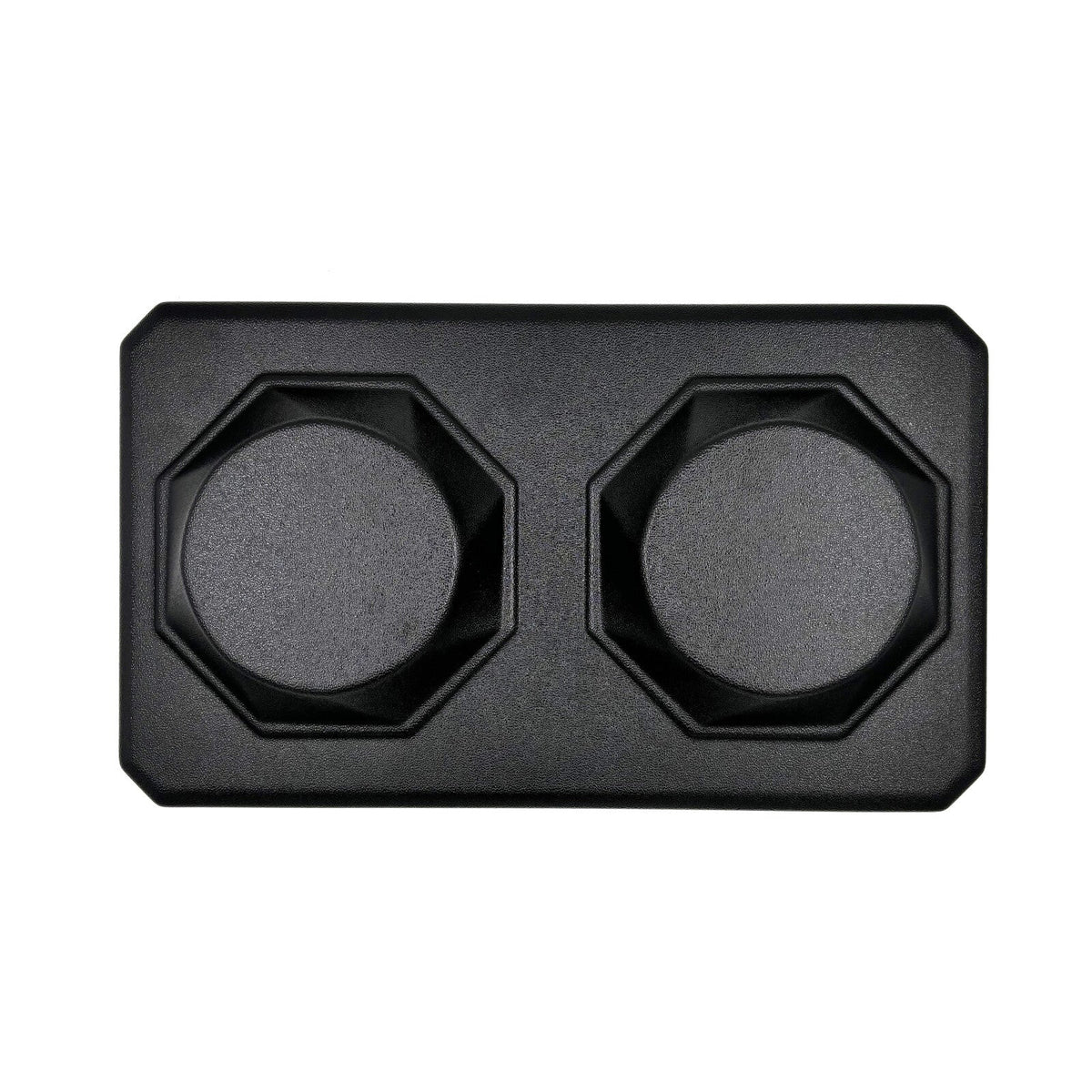

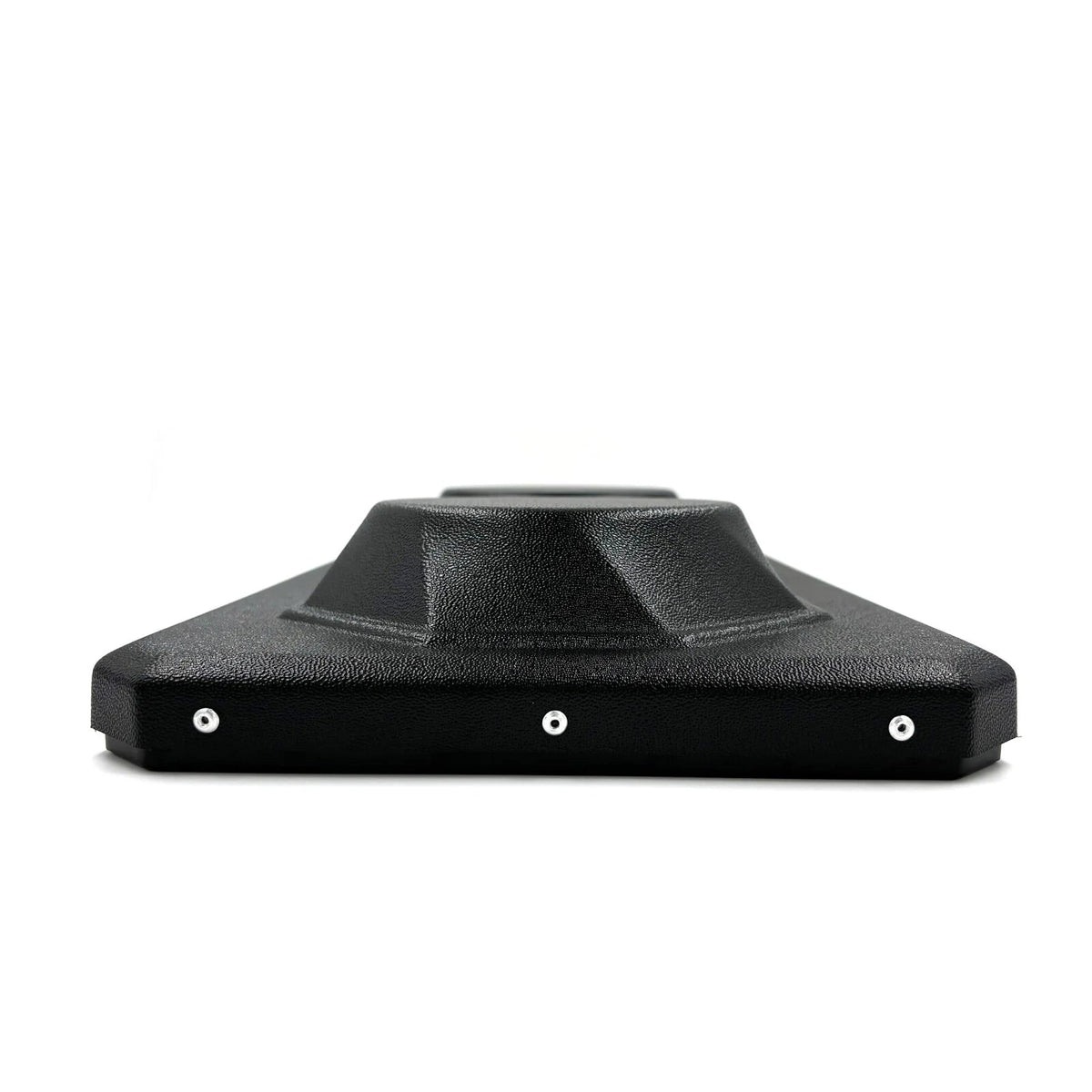

Maple Wireless 1.2GHz 12dBi Patch Antenna

Still trying to push long-range FPV video through 5.8GHz and wondering why your feed dies behind a single twig? Upgrade your ground station with the Maple Wireless 1.2GHz 12dBi Directional Patch Antenna. Operating cleanly across the 1080-1360MHz band, this high-gain directional antenna punches straight through sub-optimal conditions and clutter. With ten years of UK FPV experience under our belts, we know that reliable video RX requires real RF engineering, not luck. Delivering a beefy 12.8dBi gain with support for both RHCP and LHCP setups, this patch ensures your video receiver locks onto pristine analog or digital signals down the wire.

Highlights

• 12.8dBi Signal Gain: Delivers extreme directional range for extended long-range FPV missions.
• Broad 1080-1360MHz Coverage: Perfectly tuned across standard 1.2GHz and 1.3GHz video bands.

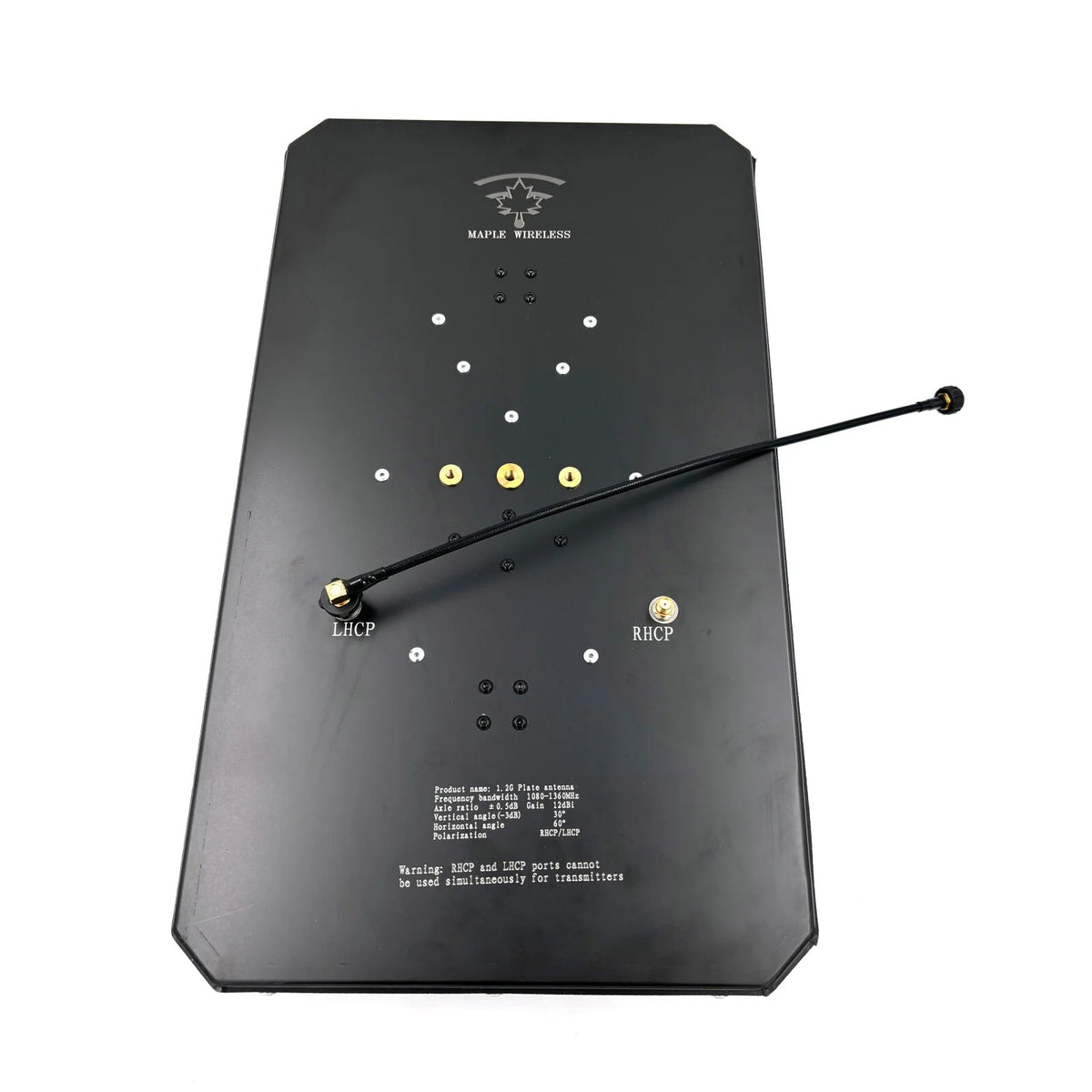

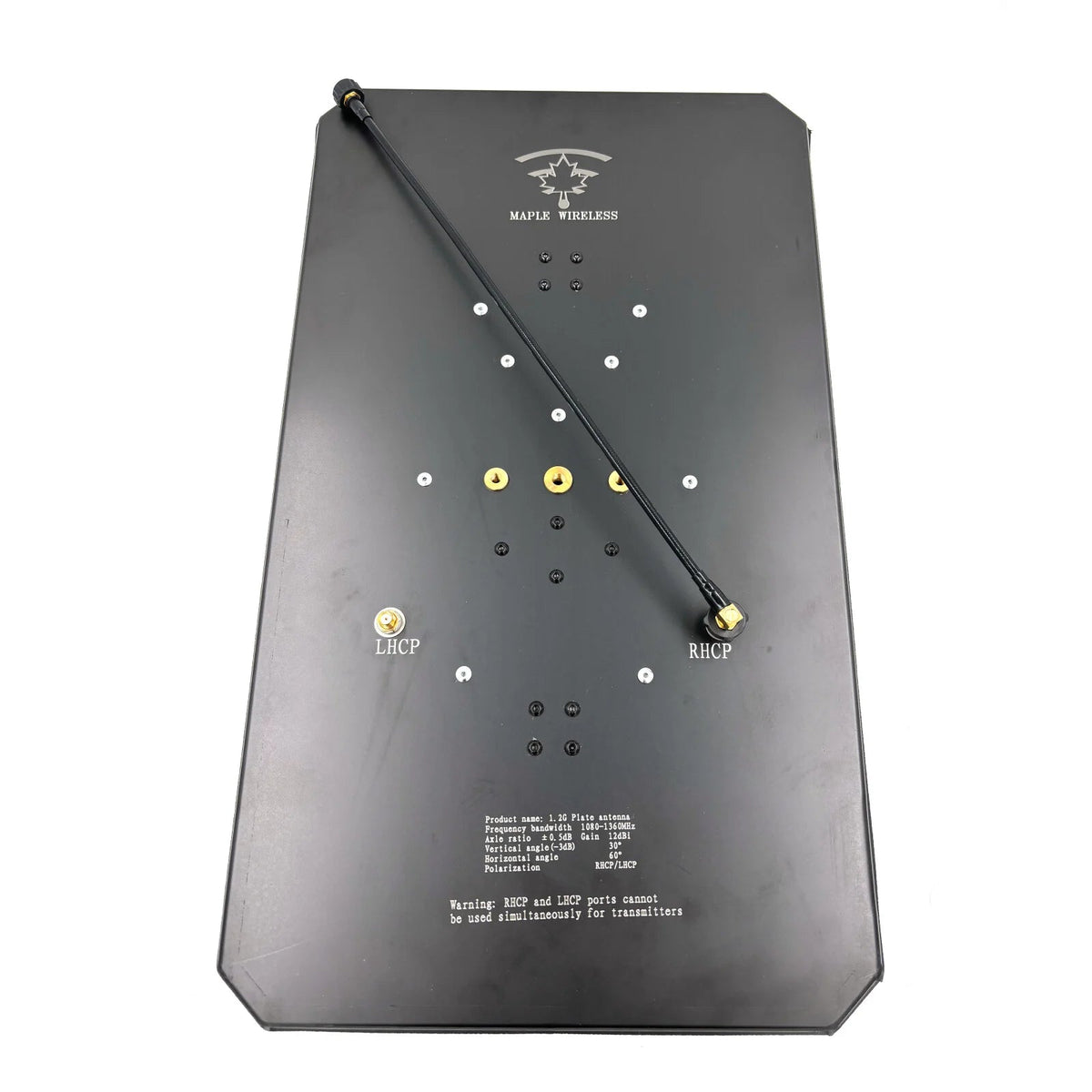

• Dual Polarization Support: Compatible with both RHCP and LHCP antenna configurations.
• Low VSWR (<1.5): Maximizes signal efficiency and reduces signal loss at the receiver.

Why You Want It

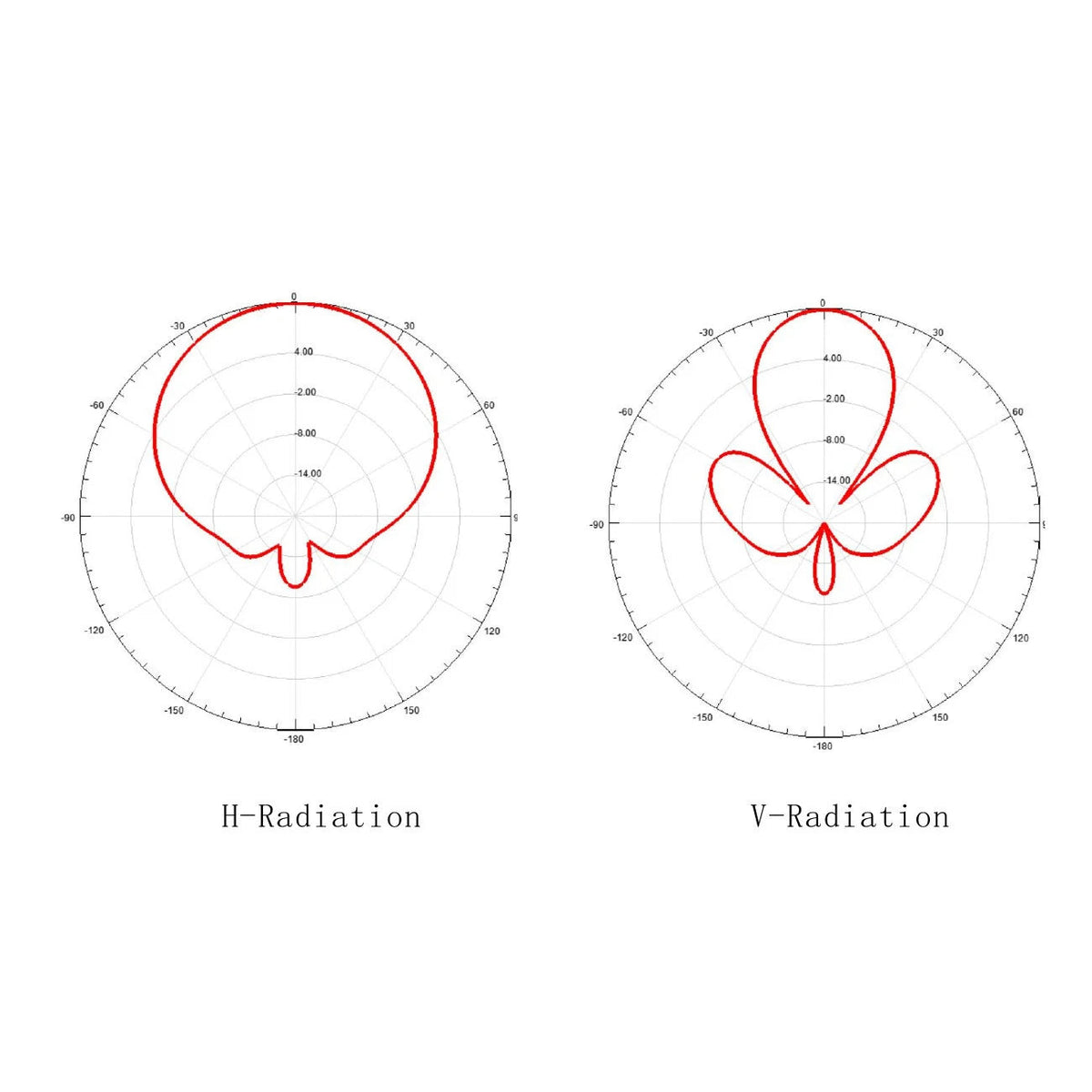

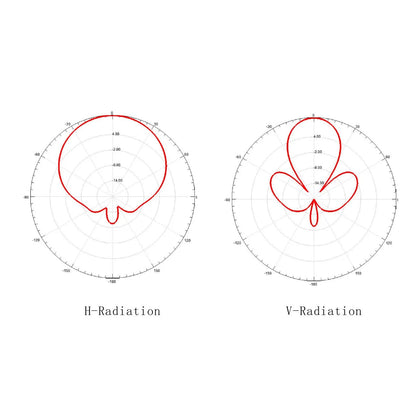

Because signal dropouts kilometers out are bad for your heart rate and worse for your quad. Designed specifically for ground stations and antenna trackers, this patch antenna provides a ±30° beamwidth (-3dB) and a wide 120° flight angle. You get massive directional range without having to aim with sub-millimeter precision. Stop flying on a prayer and give your VRX the clear feed it deserves.

Specs

• Frequency range: 1080-1360MHz
• Input impedance: 50Ω
• VSWR: <1.5
• Gain: 12.8dBi
• Beam of flight: 120°
• Beamwidth at -3dB: ±30°
• Maximum power output: 10W
• Polarization: RHCP/LHCP
• Axial ratio: ±0.5dB
• Connector: SMA
• Electrostatic protection: direct grounding
• Ambient temperature: -40~+60°C
• Size: 410*240*65mm
• Weight: 924g


FAQ

Is this 1.2GHz antenna directional or omnidirectional?

It is a directional patch antenna, meaning it must be pointed in the general direction of your drone for maximum video range.

Does this antenna work with 1.3GHz FPV frequencies?

Yes, its operating range of 1080-1360MHz fully encompasses standard 1.2GHz and 1.3GHz FPV channels.

In the Box

• 1x Maple Wireless 1.2GHz 12dBi Directional Patch Antenna
