GEPRC TAKER F405 20A ELRS AIO: Shrink Your Build, Not Your Ego

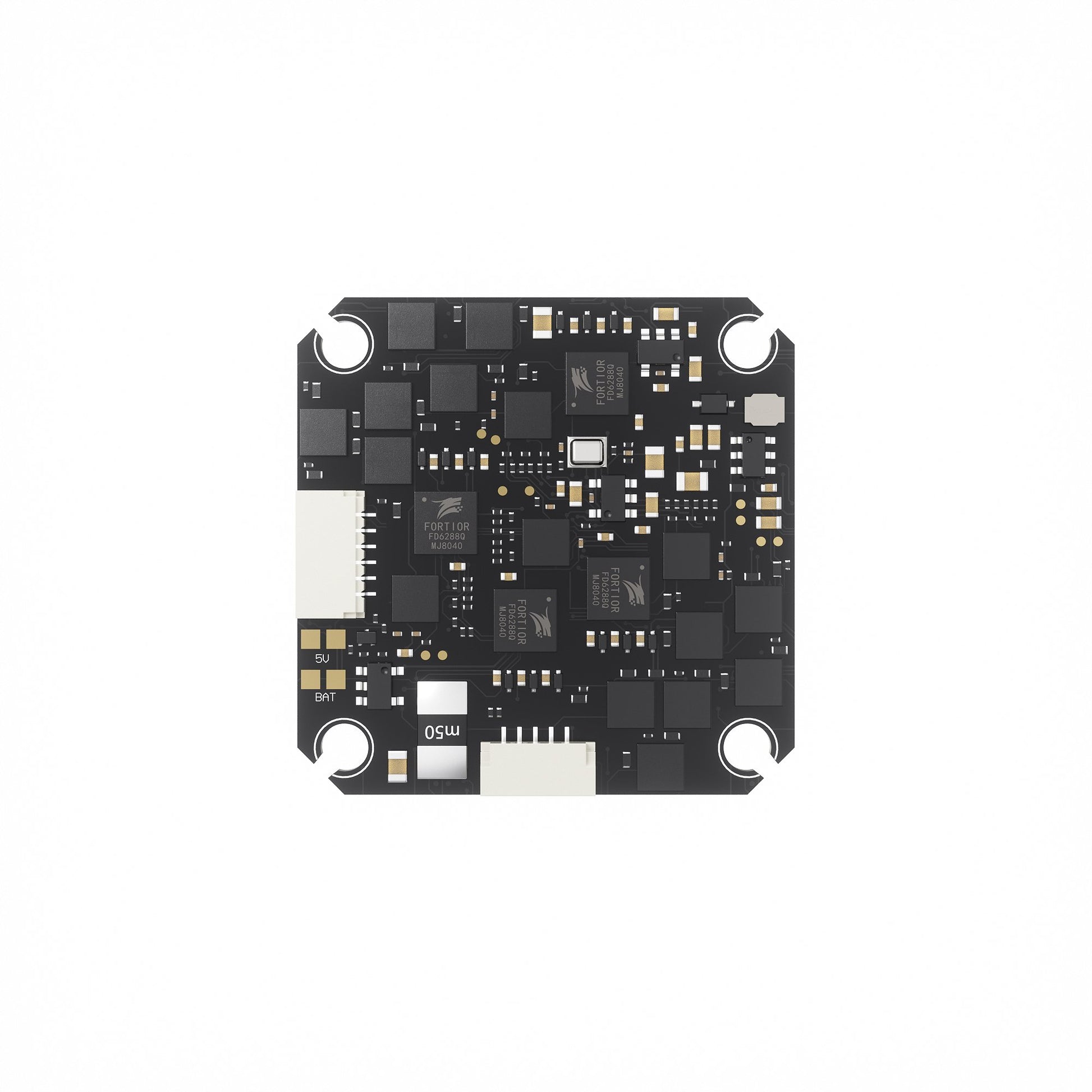

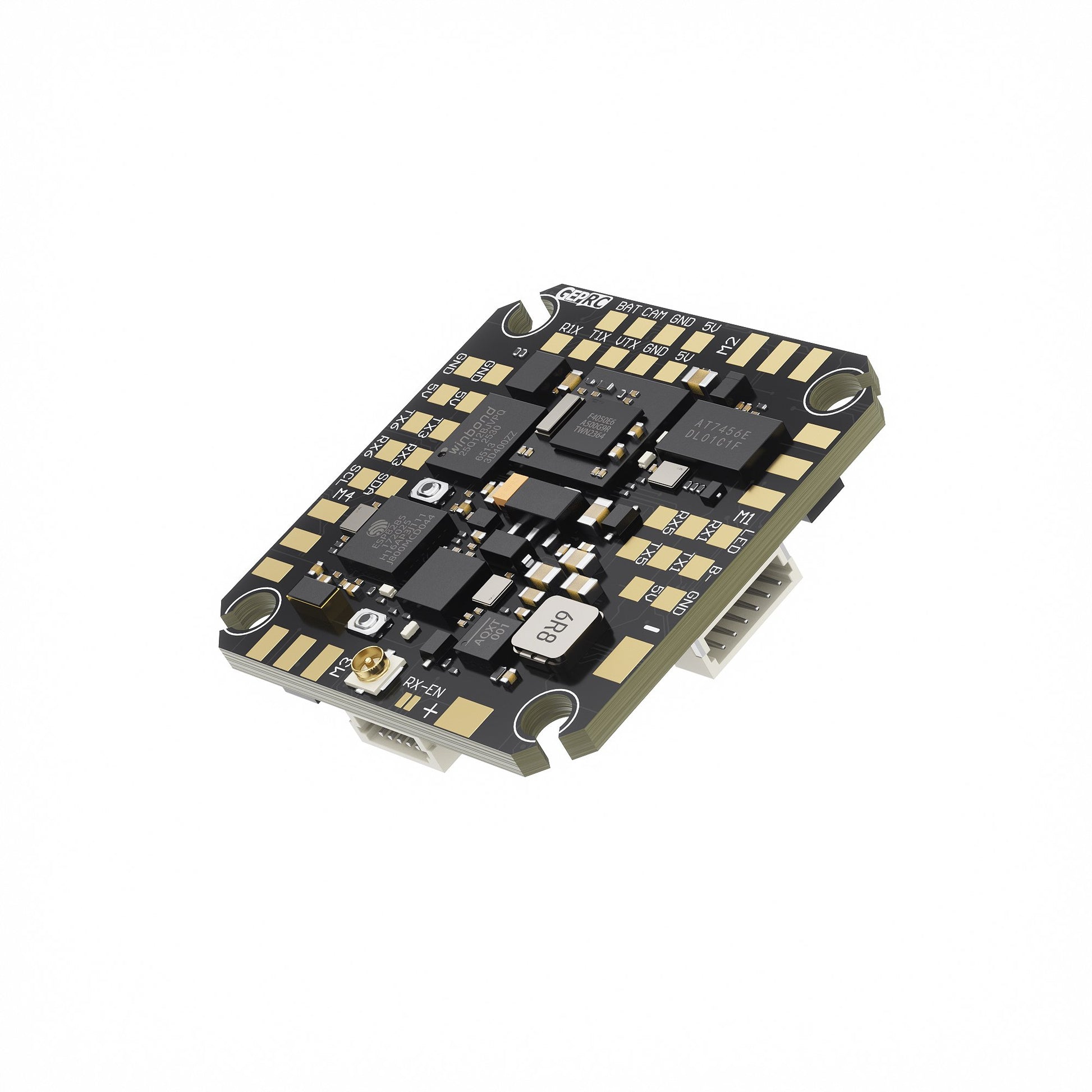

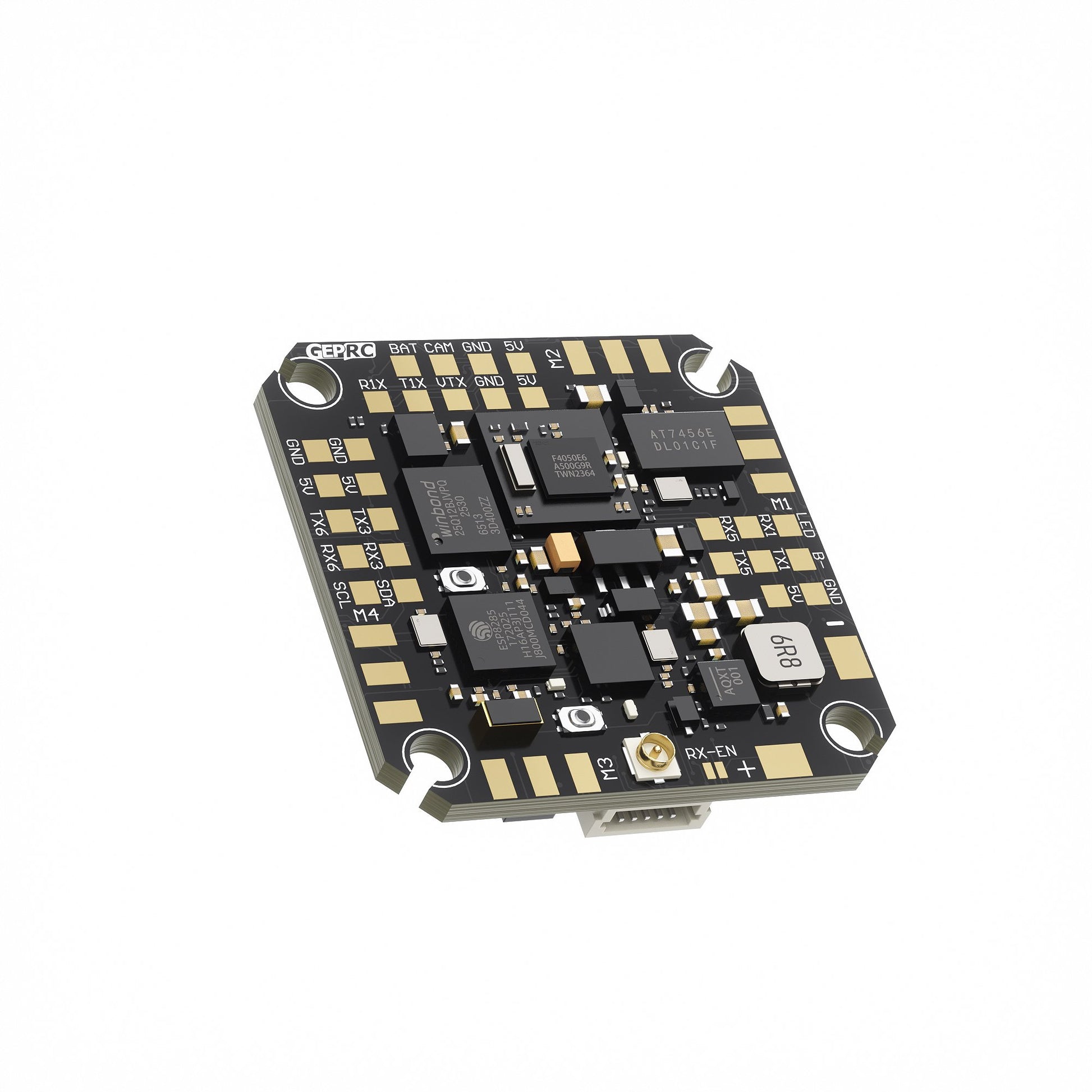

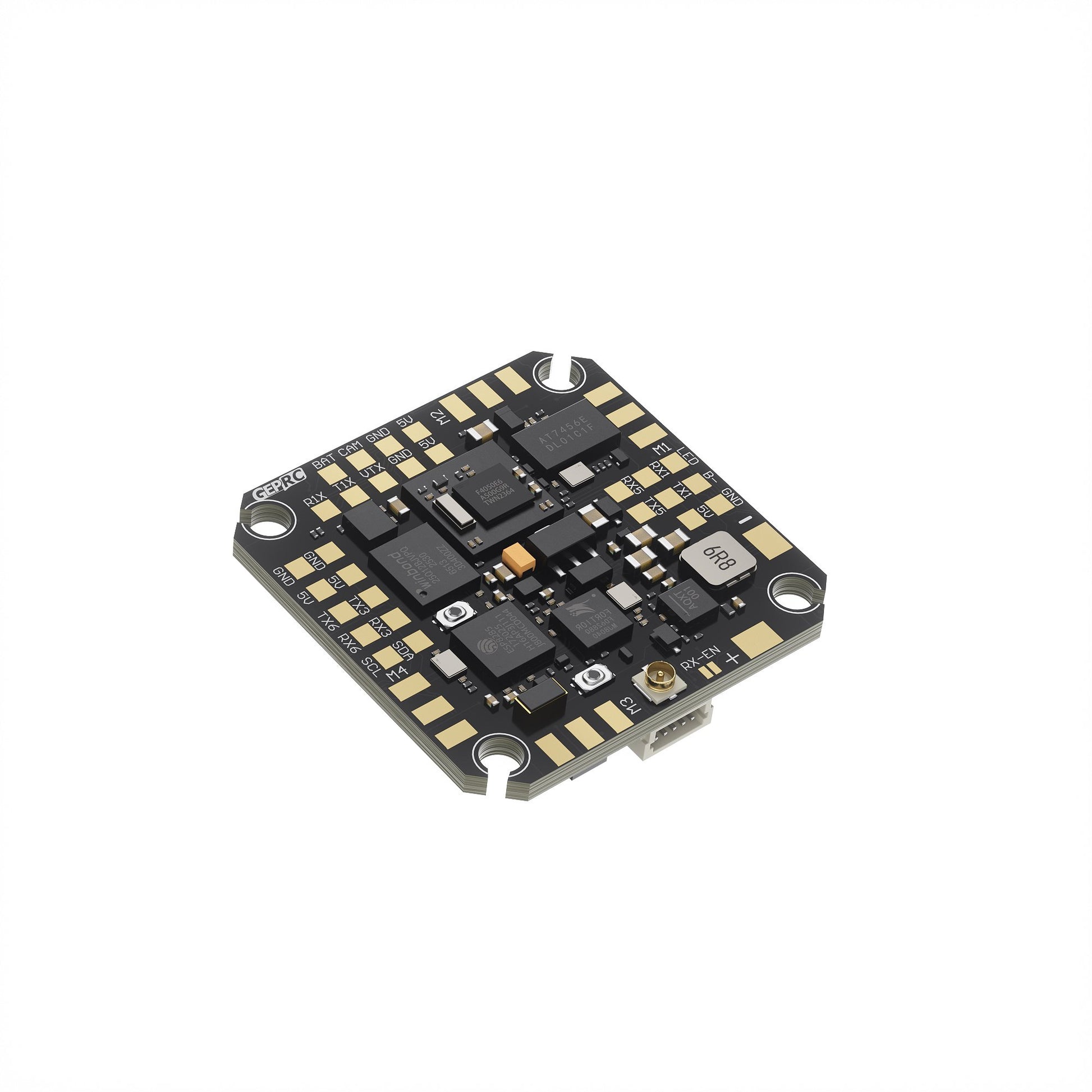

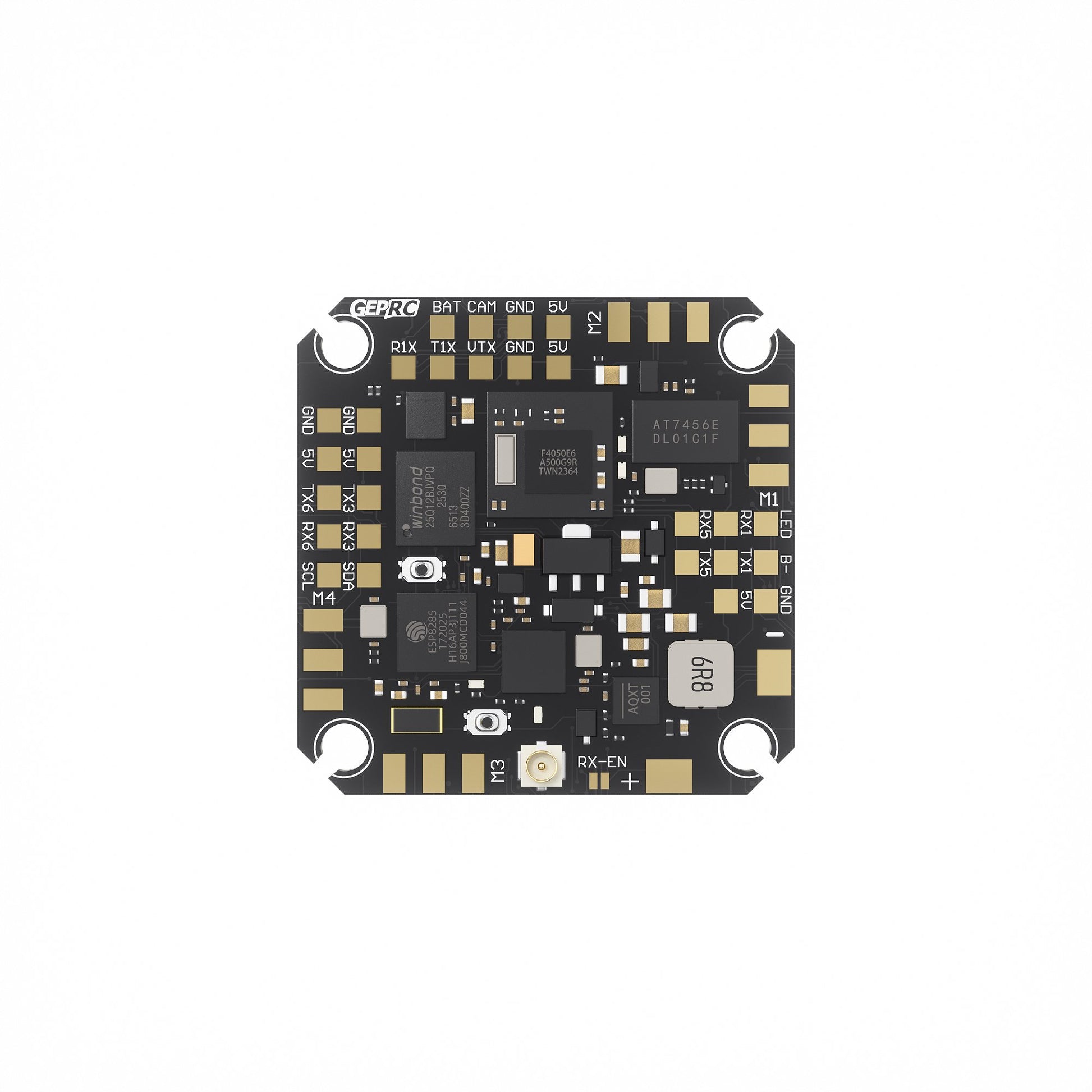

Listen, we know you’re tired of your micro-drone looking like a spaghetti factory exploded inside a toothpick frame. The GEPRC TAKER F405 AIO is here to save you from your own cable-management sins. It’s an F405 MCU, a 20A ESC, and an ELRS 2.4GHz receiver all crammed onto a board smaller than a biscuit. It’s more integrated than a silicon valley bio-hacker and significantly more useful.

Why You Want It

You want this because soldering five different components together is a great way to spend a Saturday if you enjoy frustration and the smell of burnt flux. This AIO features a dedicated 6-pin connector for your digital VTX, meaning you can plug in your HD system and spend that saved time actually flying (or crashing, let’s be realistic). With 5 full UARTs, it has more ports than a coastal town in Devon, giving you plenty of room for GPS, LEDs, and whatever else you think will make you a better pilot. Spoiler: it won’t, but the Bluejay firmware will at least make your throttle feel butter-smooth while you hit that tree.

Specs

• Product Name: TAKER F405 20A ELRS2.4G 2–4S AIO
• MCU: STM32 F405 BGA
• MU: ICM42688-P (SPI)
• FC Firmware: GEPRC_TAKER_F405 AIO
• Blackbox: 16Mb onboard flash
• OSD: Betaflight OSD with AT7456E chip
• UART:R1-T1 / R2 / R3-T3 / R4-T4 / R5-T5 / R6-T6
• Buzzer: Yes
• LED: Yes
• USB: SH1.0 6-Pin connector to Type-C USB
• BEC Output: 5V @ 2.5A
• ESC Firmware: Bluejay 20A
• Continuous Current: 20A
• Peak Current: 25A (10 seconds)
• Input Voltage: 2–4S LiPo
• ESC Protocols: DShot600, OneShot, MultiShot
• Dimensions: 31.5mm × 31.5mm
• Mounting Pattern: 25.5 × 25.5mm, φM3 rubber grommets to M2 screws
• Weight: 7g

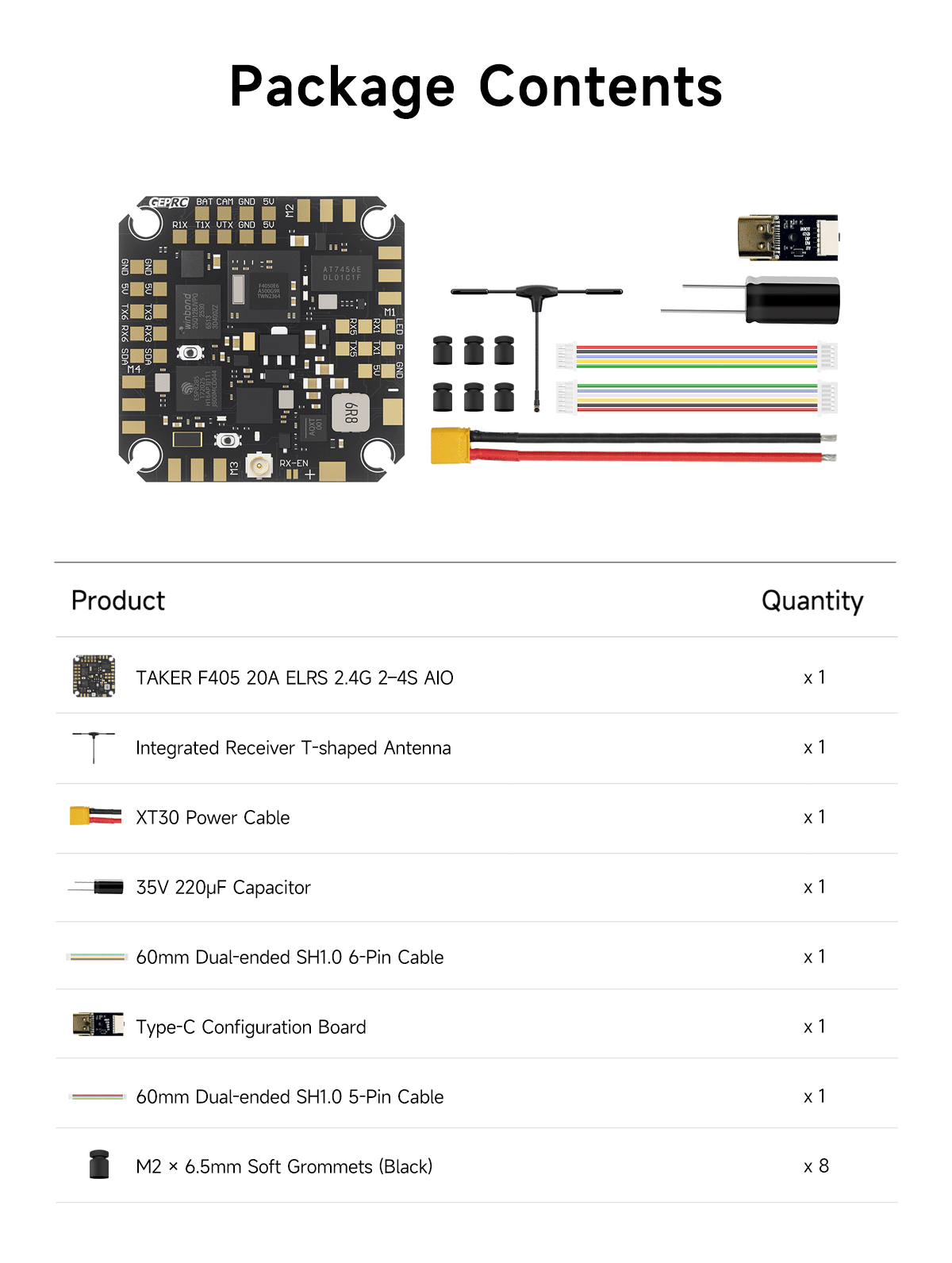

In the Box

• 1 × TAKER F405 20A ELRS2.4G 2–4S AIO
• 1 × XT30 18AWG 7cm Power Cable
• 1 × 35V 220µF Capacitor
• 1 × 60mm SH1.0 6-Pin Dual-Ended Cable
• 1 × SH1.0 6-Pin Cable
• 1 × Type-C Configuration Board
• 1 × 60mm SH1.0 5-Pin Dual-Ended Cable
• 8 × M2×6.5mm FC Rubber Grommets (Black)

Compatibility

Designed specifically for 1.6-inch to 2.2-inch micro FPV builds. It plays nice with Bluejay, DShot600, and your inevitable sense of buyer's remorse when you realise you need to buy a whole new frame to fit its 25.5x25.5mm mounting pattern.

Highlights

• Bluejay Ready: Pre-flashed for that crisp, digital ESC goodness.
• Plug-and-Play VTX: SH1.0 6-pin port means less time squinting at solder pads.
• Blackbox: 16Mb onboard flash to record your mistakes in high definition.

Notes

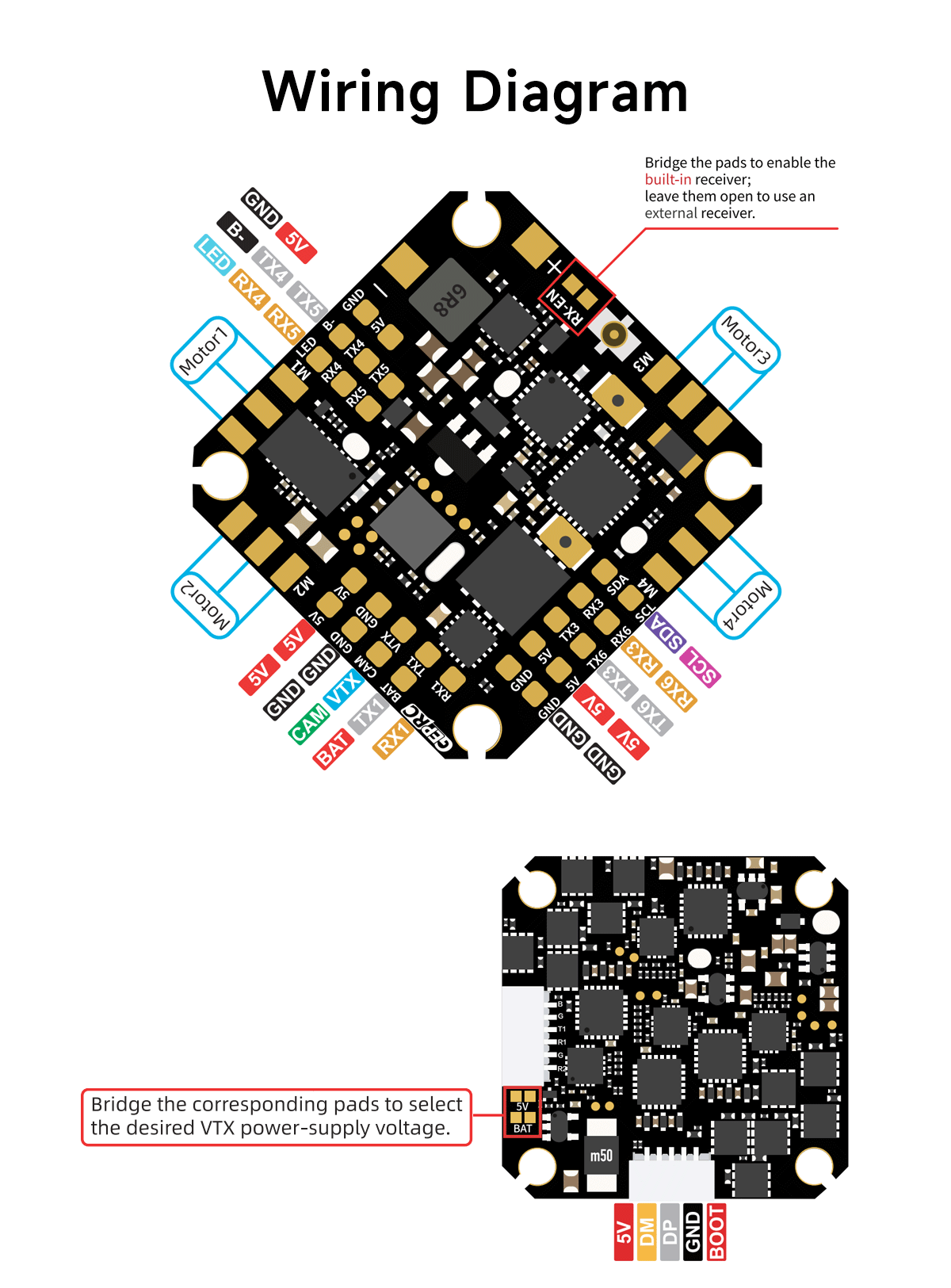

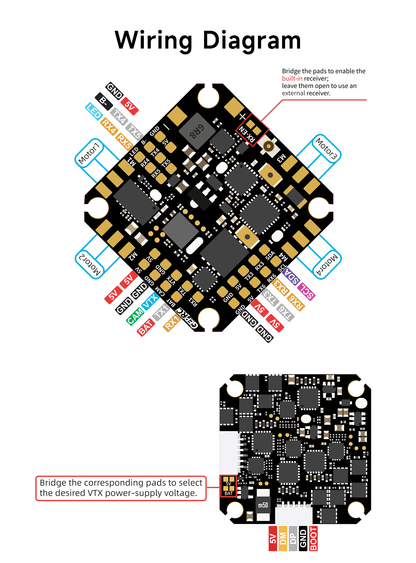

Use the included grommets. Vibration is the enemy, and your motors are likely screaming for help. Ensure you check the wiring diagram before plugging in your HD VTX, unless you enjoy expensive paperweights.

Disclaimer

We aren't responsible for you letting the magic smoke out. Solder carefully, fly legally, and don't blame the AIO for your landing skills.

Still Here?

Stop scrolling and start building. This GEPRC TAKER F405 AIO is the path of least resistance to a clean micro build. If you're still reading this, you're probably just procrastinating on that repair job. Buy it, fix it, fly it. #FPVLife #GEPRC #MicroWhoop #DroneBuilder #UnmannedTech
