Détails du produit

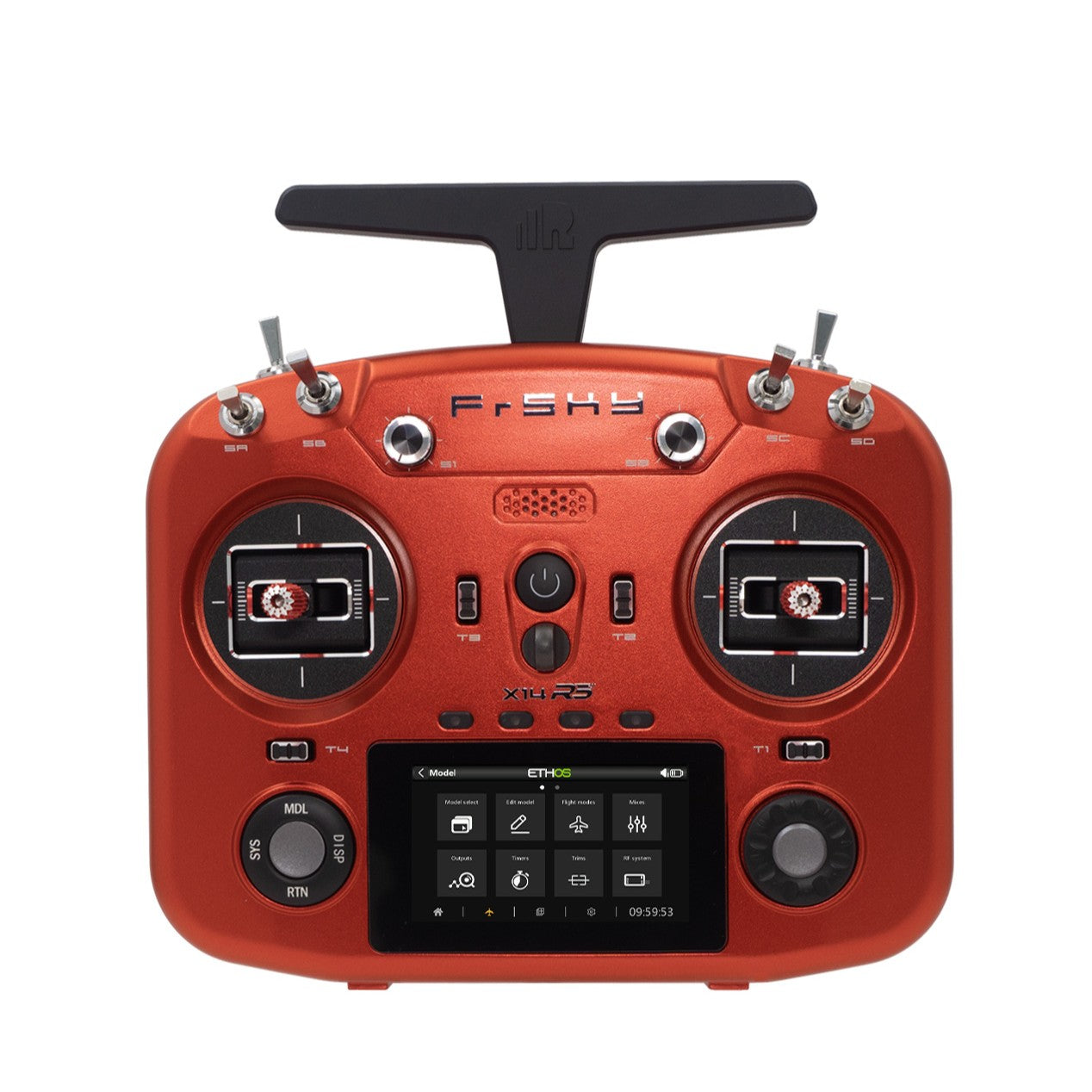

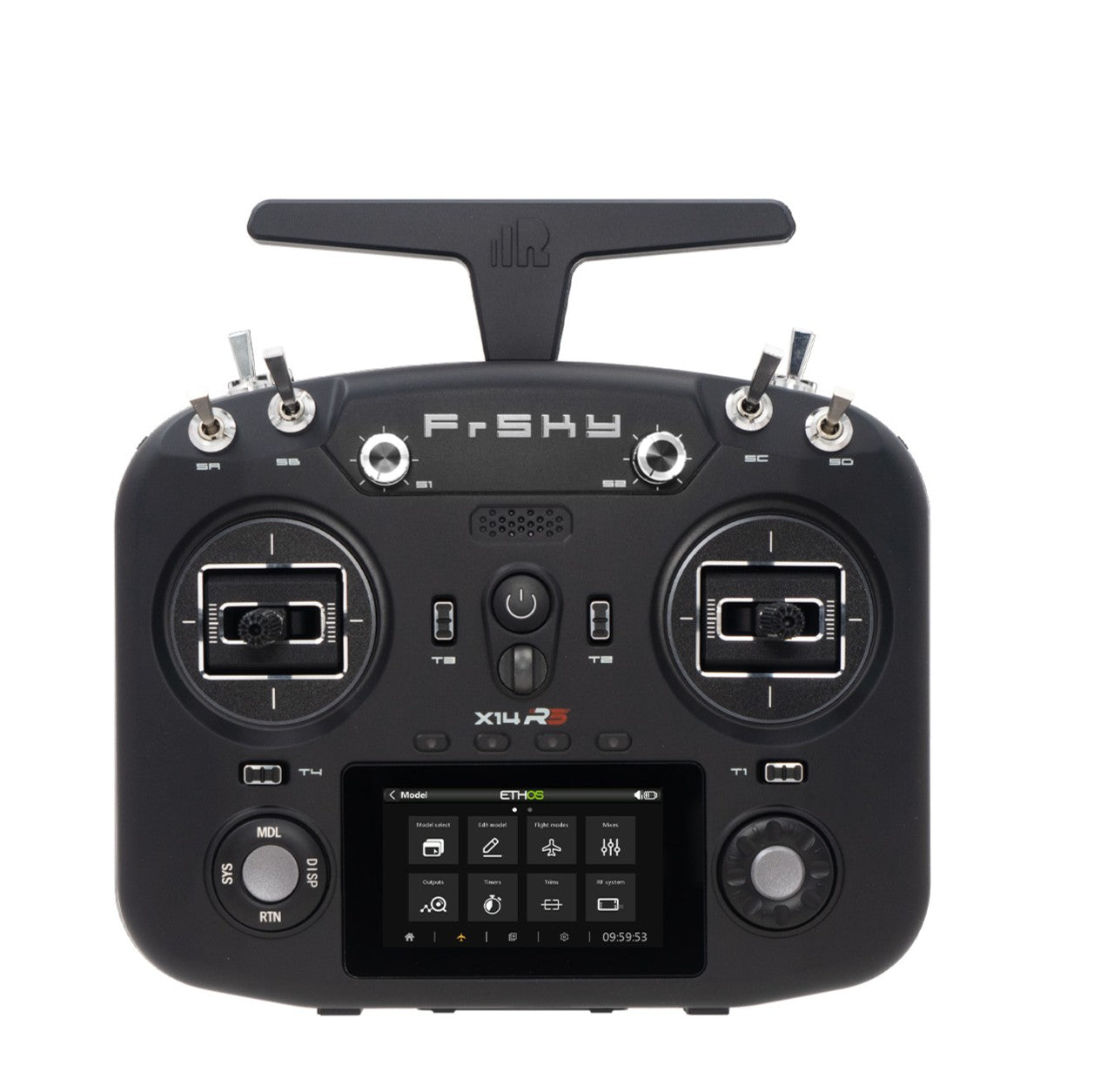

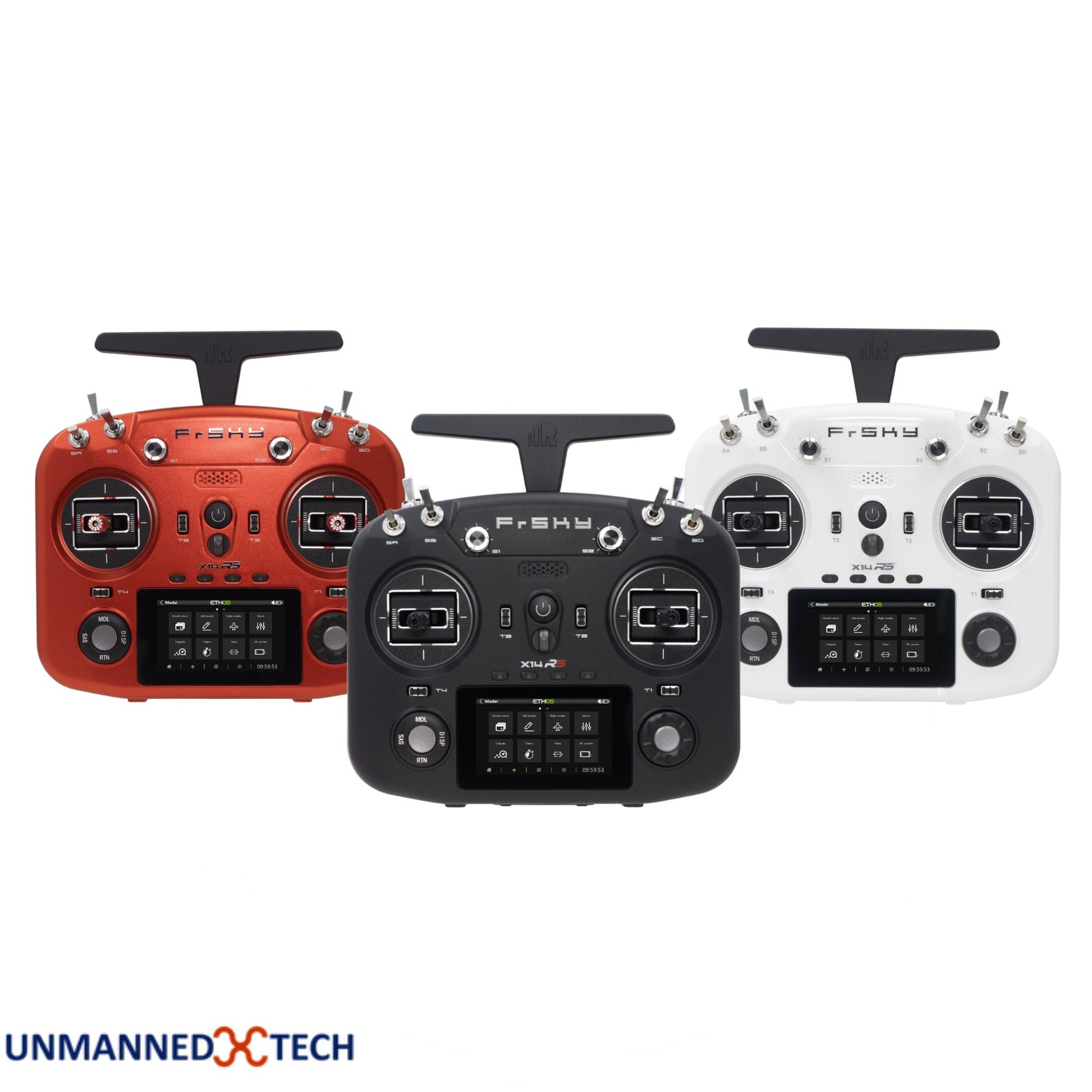

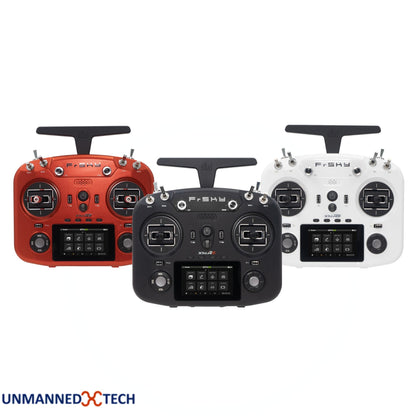

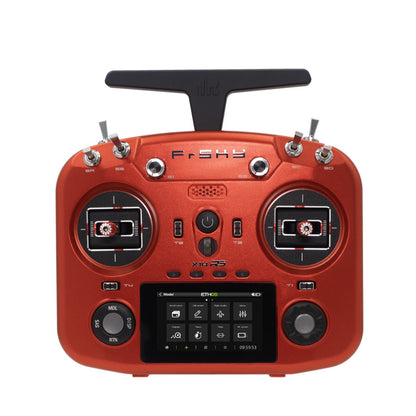

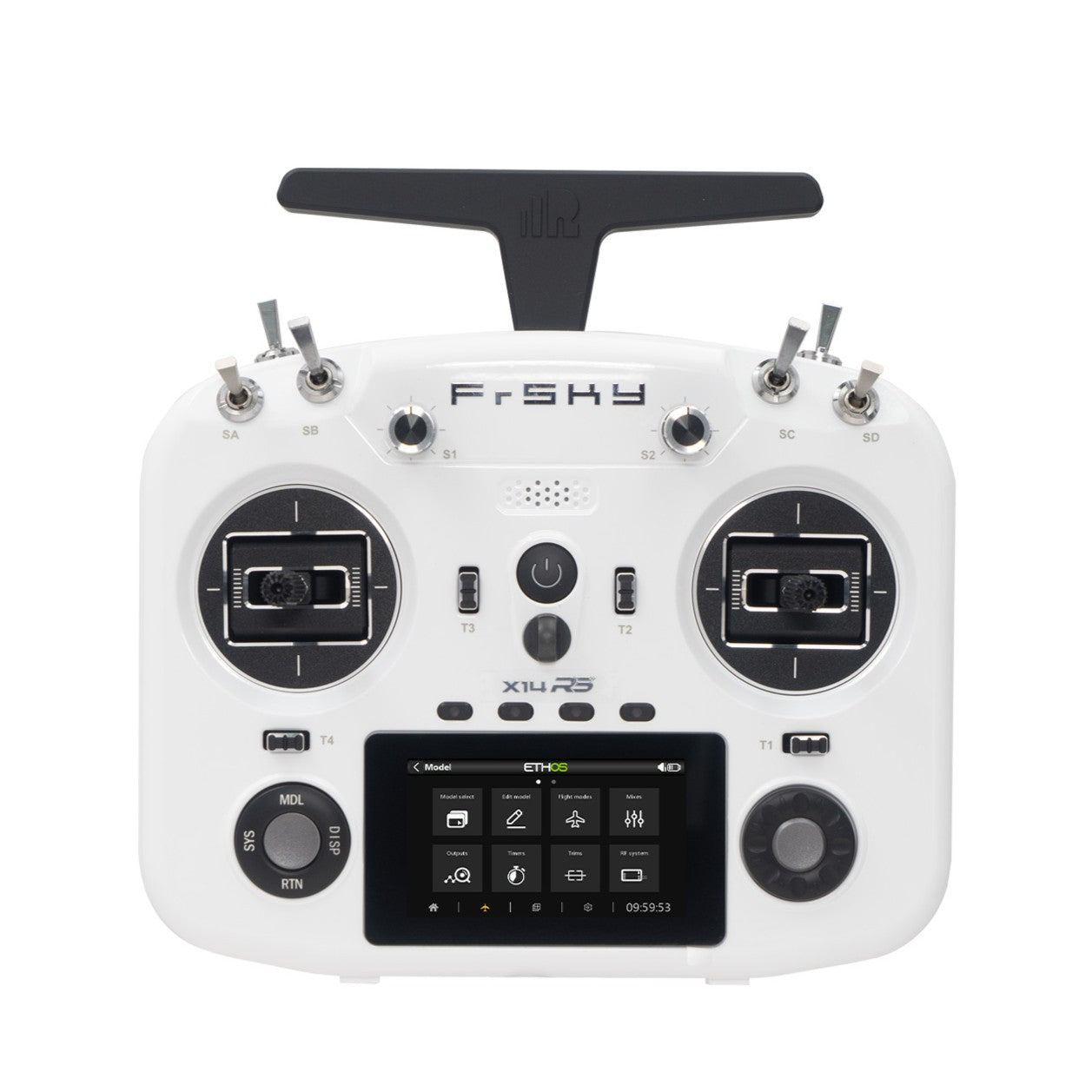

The FrSky TWIN X14RS is a compact Mode 2 ETHOS transmitter with a TD-ISRM RS dual-band RF system, a 3-inch touchscreen and CNC-machined MC18 Hall-sensor gimbals. It gives pilots the protocol flexibility of FrSky's larger radios in a lighter, easier-to-hold format.
Why choose the X14RS?
- Flexible dual-band RF: supports 900MHz/2.4GHz TD mode, dual-2.4GHz TW mode, ACCESS 2.4GHz, ACCESS R9 and ACCST D16.
- MC18 CNC Hall gimbals: 10-bearing metal gimbals with a 60° default travel angle; the supplied limiter tool allows 45° Y-axis travel.
- Compact ETHOS interface: 3-inch 640 × 360 colour touchscreen, four quick-mode buttons and two rear momentary buttons.
- Built-in and expandable storage: 512MB internal flash plus a TF-card slot.
- Useful field features: six-axis gyroscope, haptic and voice alerts, PARA wireless trainer support and a Lite external-module bay.
- USB-C charging: supports charging a suitable 2S Li battery in the transmitter.
Key specifications
- Operating system: ETHOS
- Internal RF module: TD-ISRM RS
- Channels: up to 24
- Display: 3-inch 640 × 360 colour touchscreen
- Gimbals: MC18 all-CNC Hall-sensor gimbals
- Operating voltage: 6.5–8.4V (2S Li battery)
- Dimensions: 192 × 193 × 72mm
- Weight: approximately 703g with battery
- Compatibility: ACCST D16, ACCESS, TW and TD receivers
Please note: This is the EU/LBT Mode 2 version. Receiver compatibility depends on matching protocol and firmware; check your existing receiver before ordering.
