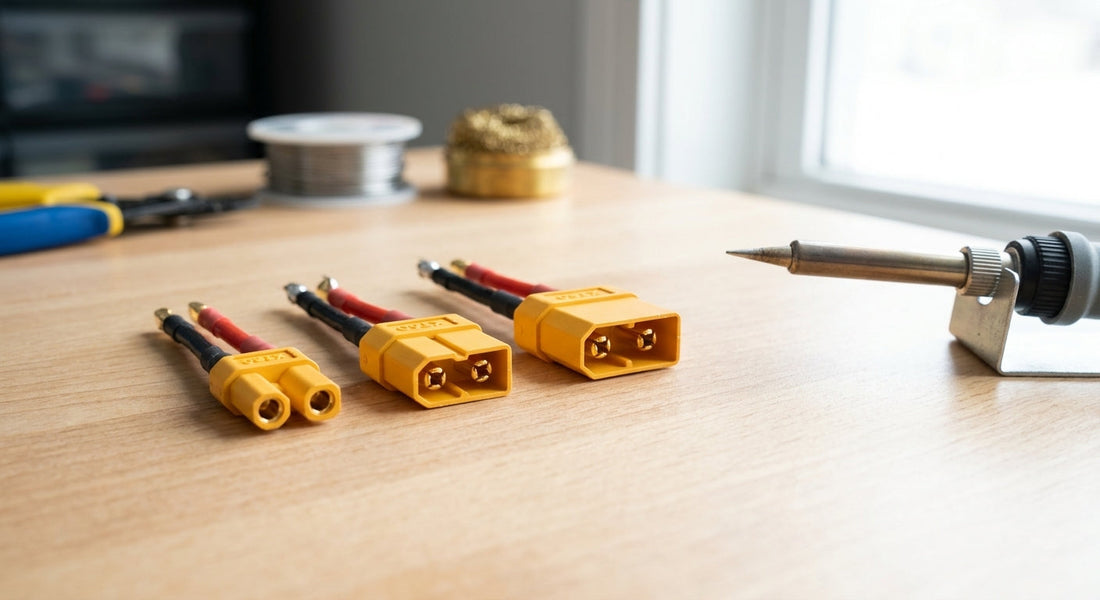

XT30, XT60 or XT90? The Number Is Not the Rating
Quick Answer
Choose a battery connector by measured or credibly estimated current, not battery voltage alone. Classic AMASS data sheets rate XT30 at 15A continuous and 30A momentary, XT60 at 30A and 60A, and XT90H at 45A and 90A. For most 5-inch FPV builds, XT60 is the sensible balance of current capacity, size and parts availability.
XT30 vs XT60 vs XT90: The Useful Numbers
Search results often quote the number in the connector name as though it were a universal continuous rating. It is not. The classic AMASS component sheets separate rated current from momentary current, and the result also depends on the stated wire size, temperature rise, contact condition and genuine connector construction.
| Connector | Rated current | Momentary current | Recommended cable in cited sheet | Our practical starting point |
|---|---|---|---|---|
| XT30 / XT30U | 15A | 30A | 18AWG | Small FPV aircraft and light battery leads |
| XT60 | 30A | 60A | 12AWG | Typical 5-inch freestyle and racing builds |
| XT90H | 45A | 90A | 10AWG | Large aircraft and higher-current power systems |
Those are connector data-sheet limits, not permission to run every installation at the momentary figure. A worn socket, poor solder joint, undersized lead or counterfeit housing can become the limiting part first. If your logged current sits close to a limit rather than touching it for a brief spike, move up a connector size.
What We Would Fit
We stock XT30U connectors in packs of 10 for small builds and a battery connector set with XT60, EC3 and T-plug parts for bench work. Our default for a conventional 5-inch 4S or 6S quad is XT60; the voltage does not determine that choice, but the aircraft class commonly puts current and wire size beyond sensible XT30 use.
For a larger aircraft, choose XT90 only when the current calculation, ESC logs or power-system specification justify the extra mass and bulk. The connectors collection is useful for matching the aircraft side and battery side before soldering.
The Adapter Trap
An adapter changes plug format, not current capacity. Our XT30-to-XT60 adapter still contains an XT30 interface, so the smaller connector remains the bottleneck. Likewise, an XT90-to-XT60 adapter does not make the XT60 side a 90A connection.
Use adapters for charging or temporary compatibility only when the load stays within the smallest connector and wire in the chain. For a permanent aircraft conversion, replace the connector properly rather than hiding a mismatch behind an adapter. Our FPV power-distribution guide explains how the battery lead, ESC and voltage rails fit together.
Soldering Without Creating the Real Weak Point
Match the conductor to both the current and the connector's solder cup. Tin the wire and cup, use flux, heat the joint decisively, then keep it still while it solidifies. Stop if the housing begins to soften or a contact moves. Fit heat-shrink over each exposed terminal and check polarity with a multimeter before connecting a battery.
Never cut both battery leads together: the tool can short the pack. Work on one insulated lead at a time. If a connector is discoloured, loose, pitted or hotter than the wire after a flight, replace the pair and inspect the solder joint; our battery voltage-sag guide covers the symptoms a resistive connection can cause.
FAQ
Q: Is XT30 rated for 30A continuously?
A: No. The classic AMASS XT30 sheet states 15A rated current and 30A momentary current with 18AWG cable. Treating 30A as a continuous target removes the margin for heat, wear and installation quality.
Q: Is XT60 always enough for a 6S drone?
A: Not automatically. Six cells describe voltage, not current. Use expected or logged amperage, wire size and connector temperature; a high-current 6S aircraft can need a larger connector.
Q: Does XT30U carry more current than XT30?
A: Not on the AMASS ratings we checked. XT30U is a revised, lighter housing format, while current listings and distributor data still specify 15A rated current.
Q: Should I pull a tight connector by its wires?
A: No. Grip both housings, keep them aligned and pull them apart without loading the solder joints or cable strands.
