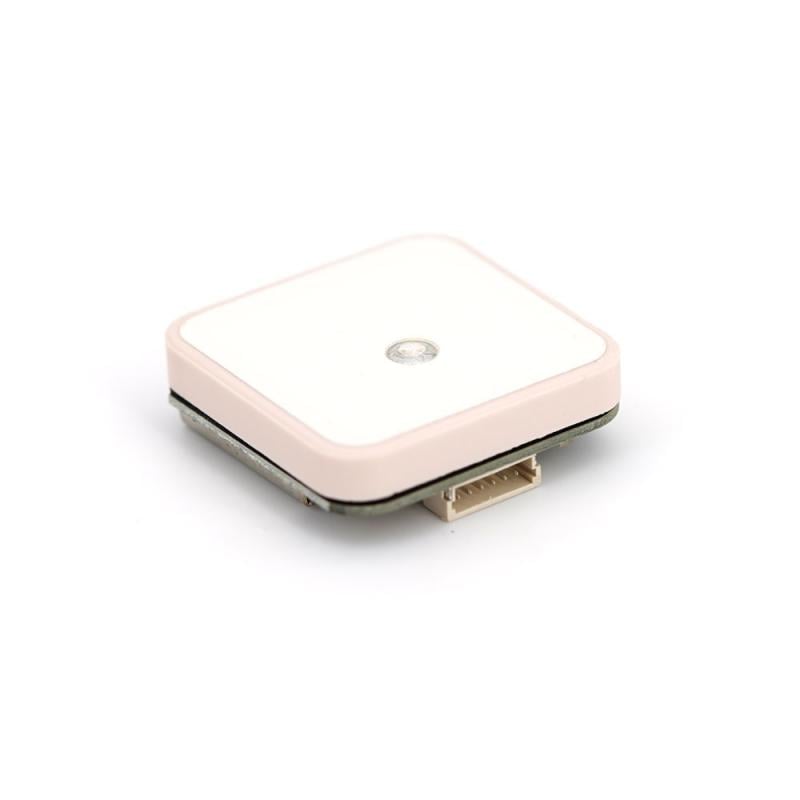

TBS M10Q GPS GLONASS Module With QMC5883 Compass

Unleash Next-Generation Navigation with the ublox UBX-M10050 Chipset

Embark on a journey of unmatched accuracy and efficiency with the TBS M10Q GPS GLONASS. Equipped with the formidable ublox UBX-M10050 chipset, this powerhouse of a GPS module does more than just point north. It’s like having a mini-supercomputer guiding you through the shortest queues at the coffee shop!

Triple Frequency for Triple the Fun

Who needs a simple dual-band GPS when you can have triple frequencies? With L1 at 1575.42 MHz, L2 at 1561.10 MHz, and L3 at 1602.00 MHz, this device ensures you’re never lost, even if you find yourself in the Bermuda Triangle.

Speedy Starts and Stellar Sensitivity

Forget the days of staring at your device waiting for a signal. The TBS M10Q boasts a hot start time of approximately 1 second — yes, almost as fast as your reaction to a dropped ice cream. With tracking sensitivity at -166dBm and a cold start of merely 26 seconds, it’s ready faster than you can say “Where am I?”

Pinpoint Precision

Navigate with confidence as the TBS M10Q delivers stunning horizontal position accuracy under 2 meters. Whether you’re hiking, flying, or diving (okay, maybe not diving), it keeps you on track. And with a timepulse signal accuracy of RMS 30 ns, even time travelers would nod in approval.

Built for the Bold

This module isn’t just about getting you from point A to B. It thrives up to a maximum height of 50,000 meters — where eagles dare. And with a top speed of 500 m/s and a max acceleration of ≤ 4G, it’s virtually unshakeable, no matter the adventure.

Compact, Yet Mighty

With dimensions of merely 25 x 25 x 7.7 mm and weighing in at a featherlight 13.5 grams, the TBS M10Q could very well be mistaken for a postage stamp that knows exactly where it’s going.

Energy Efficient

Running on a mere 5V input voltage and with a configurable refresh rate from 0.25Hz to 18Hz, this GPS module is as energy-efficient as it gets. It’s like having an eco-friendly co-pilot.

Magnetic Personality

Not to forget, it includes a built-in QMC5883 magnetometer, because why not add a compass into the mix? It’s like the cherry on top of this navigational sundae.

Optimize your travels, elevate your adventures, and never get lost (unless you want to) with the TBS M10Q GPS GLONASS. Where will it take you next?

Specifications

• Chipset – ublox UBX-M10050
• Flash memory for saving configuration.
• Frequency – L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
• Baud Rate – 4800bps-921600bps, default 115200bps
• Channel – N/a
• Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
• Cold start – Average 26 seconds
• Warm start – Average 24 seconds
• Hot start – Average 1 second
• Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
• Maximum height – 50000m
• Maximum speed – 500 m/s
• Maximum acceleration – ≦ 4G
• Refresh Rate – 0.25Hz-18Hz, default 1Hz
• Size – 25 x 25 x 7.7mm
• Weight – 13.5g
• Input Voltage – 5V
• Magnetometer: QMC5883

Included

1x TBS M10Q GPS GLONASS
