Pixhawk 6X Pro Autopilot

Discover the Holybro Pixhawk 6X Pro: The Autopilot Powerhouse for Your UAV

Elevate your drone’s performance to professional heights with the Holybro Pixhawk 6X Pro Autopilot Kit. This isn’t just any flight controller; it’s a meticulously engineered powerhouse designed for commercial and industrial use, where precision and reliability are not just niceties but necessities.

Engineered to Defy Disturbances

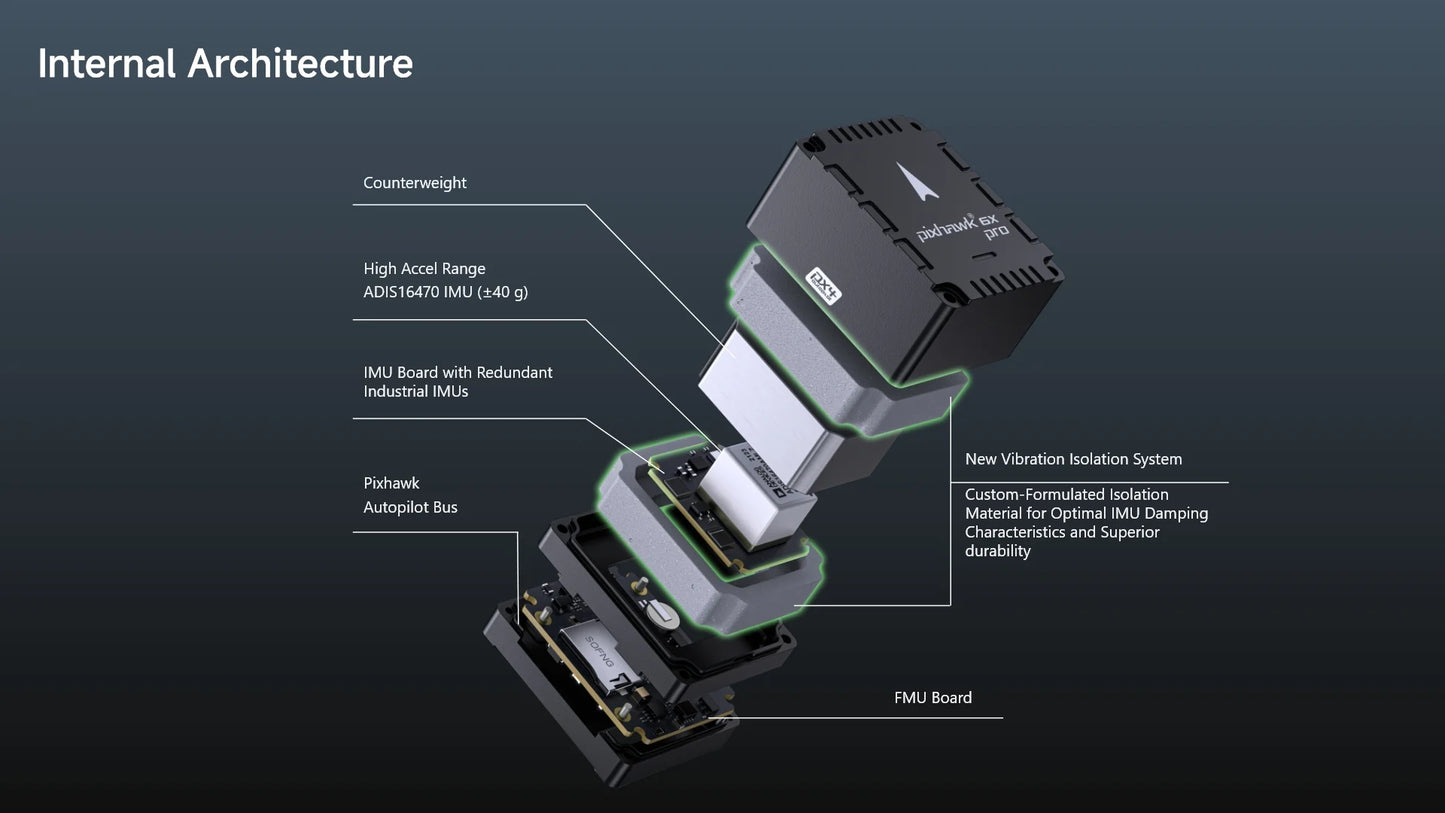

At the heart of the Pixhawk 6X Pro’s superiority is its groundbreaking IMU vibration isolation technology. Say goodbye to the traditional mishaps of in-flight jitters. This system employs a clever combination of special silicone-based materials and a strategic increase in mass to dampen unwanted vibrations. More mass means less shake, ensuring that the gyro sensors receive a pristine feed of data on your drone’s movements. This results in an unparalleled locked-in flight performance that commercial pilots dream about.

Technological Titan Inside

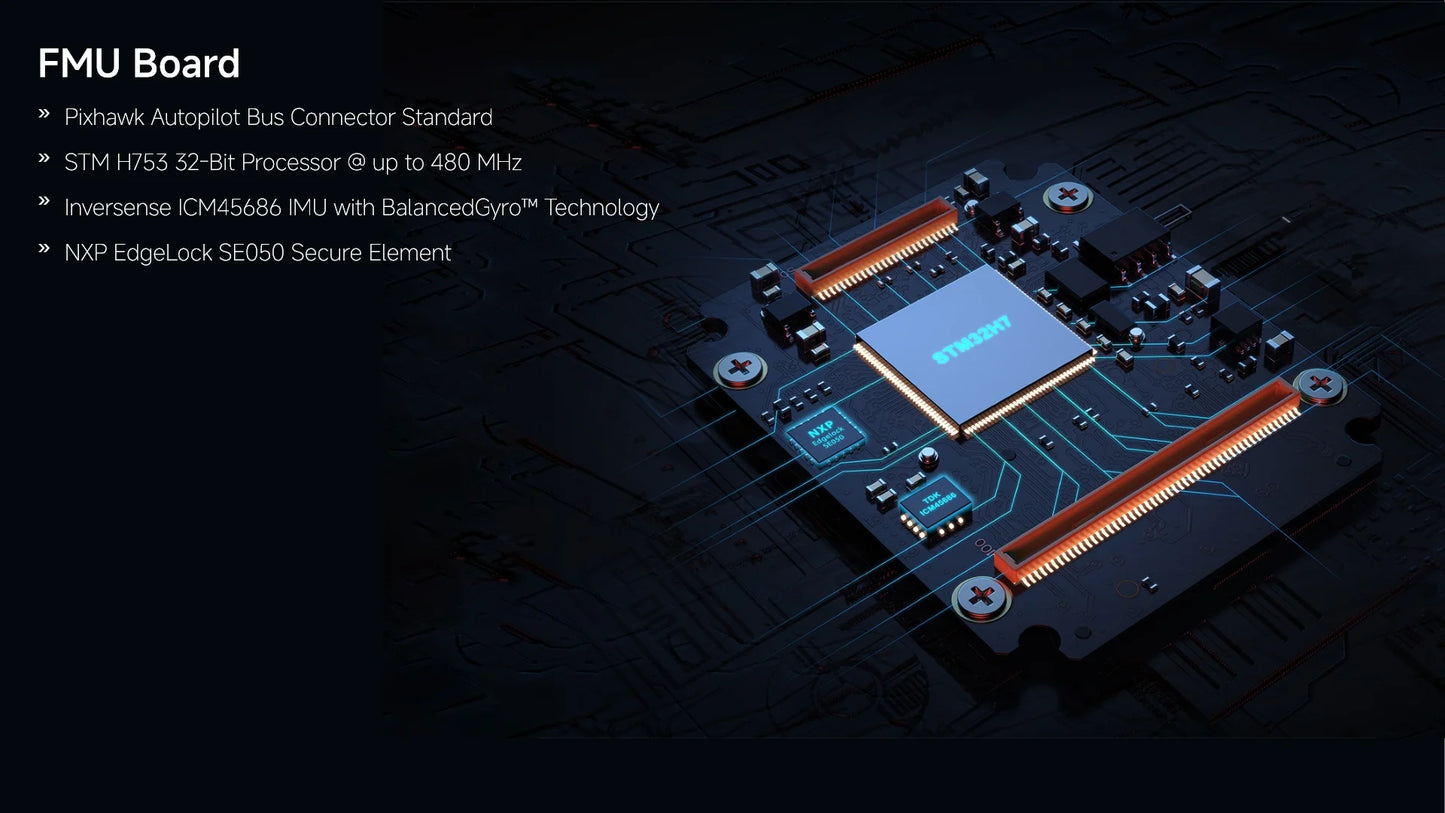

Underneath its robust shell, the Pixhawk 6X Pro is brimming with cutting-edge technology. The flight controller is powered by an STMicroelectronics STM32H753 MCU, ensuring lightning-fast processing speeds up to 480 MHz. Accompanying this powerhouse are top-tier sensors from giants like Analog Devices, Bosch, and InvenSense, making this controller a flexible and reliable choice for any autonomous flying vehicle.

Redundancy for Reliability

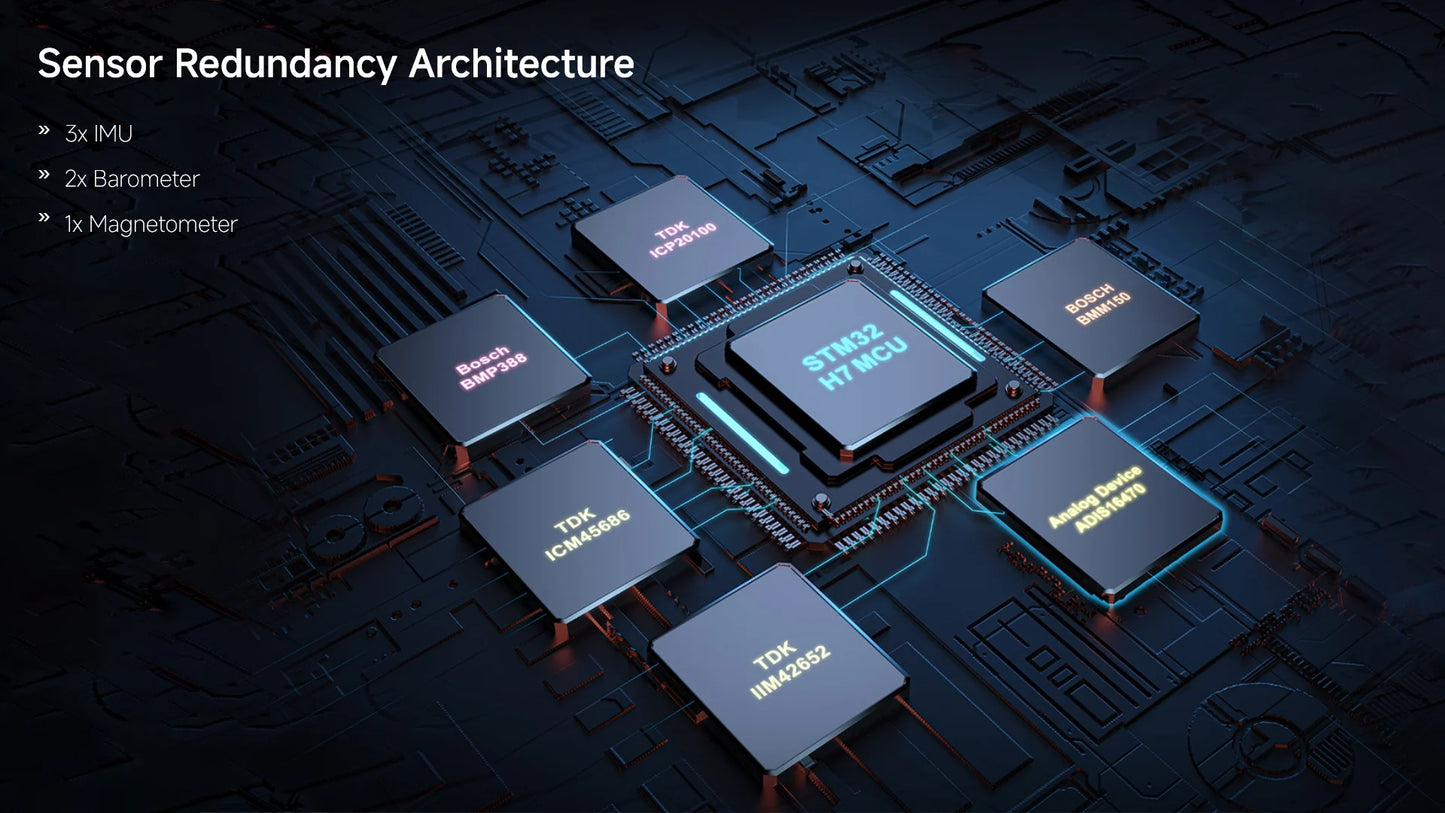

Fear not the dreaded sensor failure. The Pixhawk 6X Pro features triple redundant IMUs and double redundant barometers on separate buses. With industrial-grade IMUs (ADIS16470 & IIM42652), you get enhanced performance, superior shock and vibration tolerance, and consistent reliability over time and under varying temperatures. If one sensor goes down, the system smartly switches to another without missing a beat, maintaining steadfast control.

Designed for the Demands

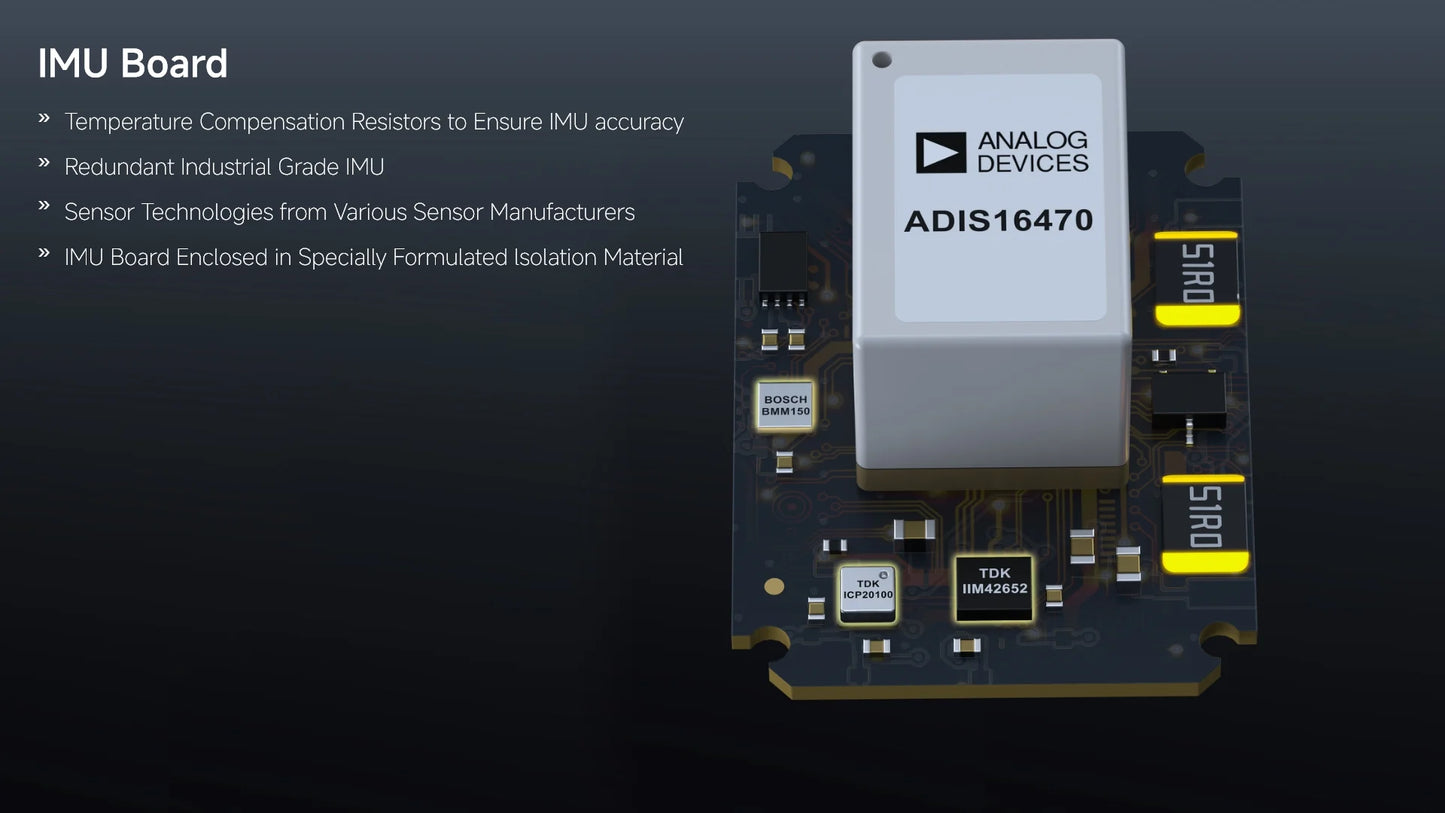

Whether it’s a routine survey or a critical inspection, the Pixhawk 6X Pro is equipped to handle it all. It boasts a high-performance, low-noise IMU board that’s temperature-controlled to operate optimally across different environments. The onboard Ethernet interface enables high-speed communication with mission computers, making complex operations smooth and manageable.

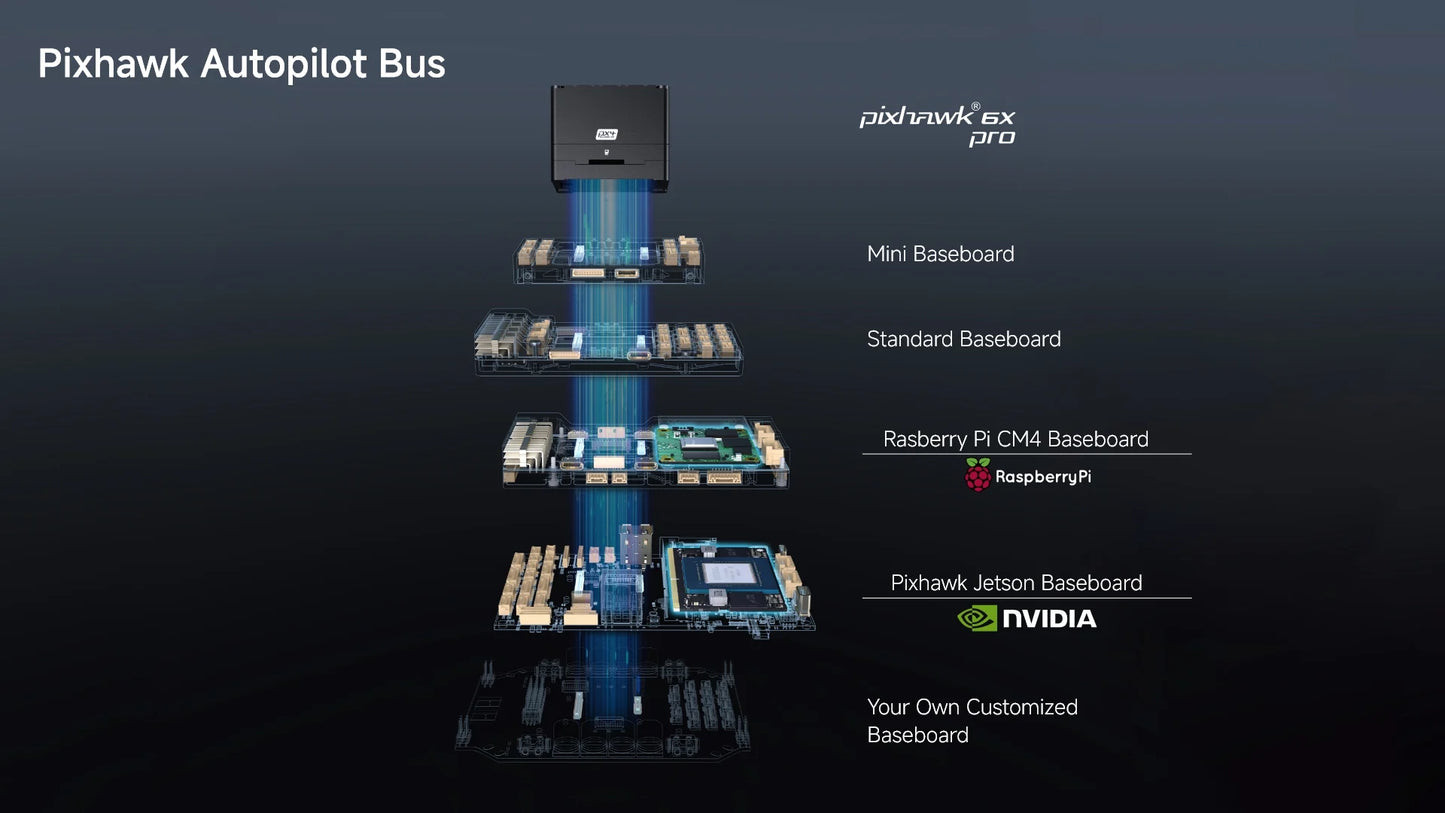

Choose Your Fighter: Standard, Mini, RPI, or Jetson

The Pixhawk 6X Pro FC can fit onto any of the Pixhawk 6x baseboards, be is standard, mini, Raspberri Pi Carrier, or Nvidia Jetson Carrier, giving you ultimate flexibility depending on your mission requirements.

In the Box:

• Pixhawk 6X Pro Flight Controller

Crafted for the Connoisseurs

Whether it’s maintaining the peace on a professional film set or mapping out uncharted territories, the Pixhawk 6X Pro is not just another component in your drone – it’s the pilot’s peace of mind, encapsulated in silicon and software. Ready for a flight controller that meets the rigors of your ambitious projects? The Holybro Pixhawk 6X Pro is your ticket to the skies, executed with engineering excellence.

Experience the next level of drone autonomy and reliability. Fly the future with Pixhawk 6X Pro.

Specification

Processors & Sensors

• FMU Processor: STM32H753
  • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
• IO Processor: STM32F103
  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors
  • Accel/Gyro: ADIS16470
    • ±40g, Vibration Isolated, Industrial IMU
  • Accel/Gyro: IIM-42652
    • ±16g, Vibration Isolated, Industrial IMU
  • Accel/Gyro: ICM-45686 with BalancedGyro™ Technology
    • ±32g, Hard Mounted
  • Barometer: ICP20100
  • Barometer: BMP388
  • Mag: BMM150

Electrical data

• Voltage Ratings:
  • Max input voltage: 6V
  • USB Power Input: 4.75~5.25V
  • Servo Rail Input: 0~36V
• Current Ratings:
  • Telem1 output current limiter: 1.5A
  • All other port combined output current limiter: 1.5A

Mechanical data

• Dimensions
  • Flight Controller Module: 38.8 x 31.8 x 30.1mm
  • Standard Baseboard: 52.4 x 102 x 16.7mm  (Aluminum)
  • Mini Baseboard: 43.4 x 72.8 x 14.2 mm
• Weight
  • Flight Controller Module: 50g
  • Standard Baseboard: 72.5g  (Aluminum)
  • Mini Baseboard: 26.5g

Reference Links:

• Isolation Material Testing Data
• Power module comparison chart
• Dimensions
• PX4 & Ardupilot Guide

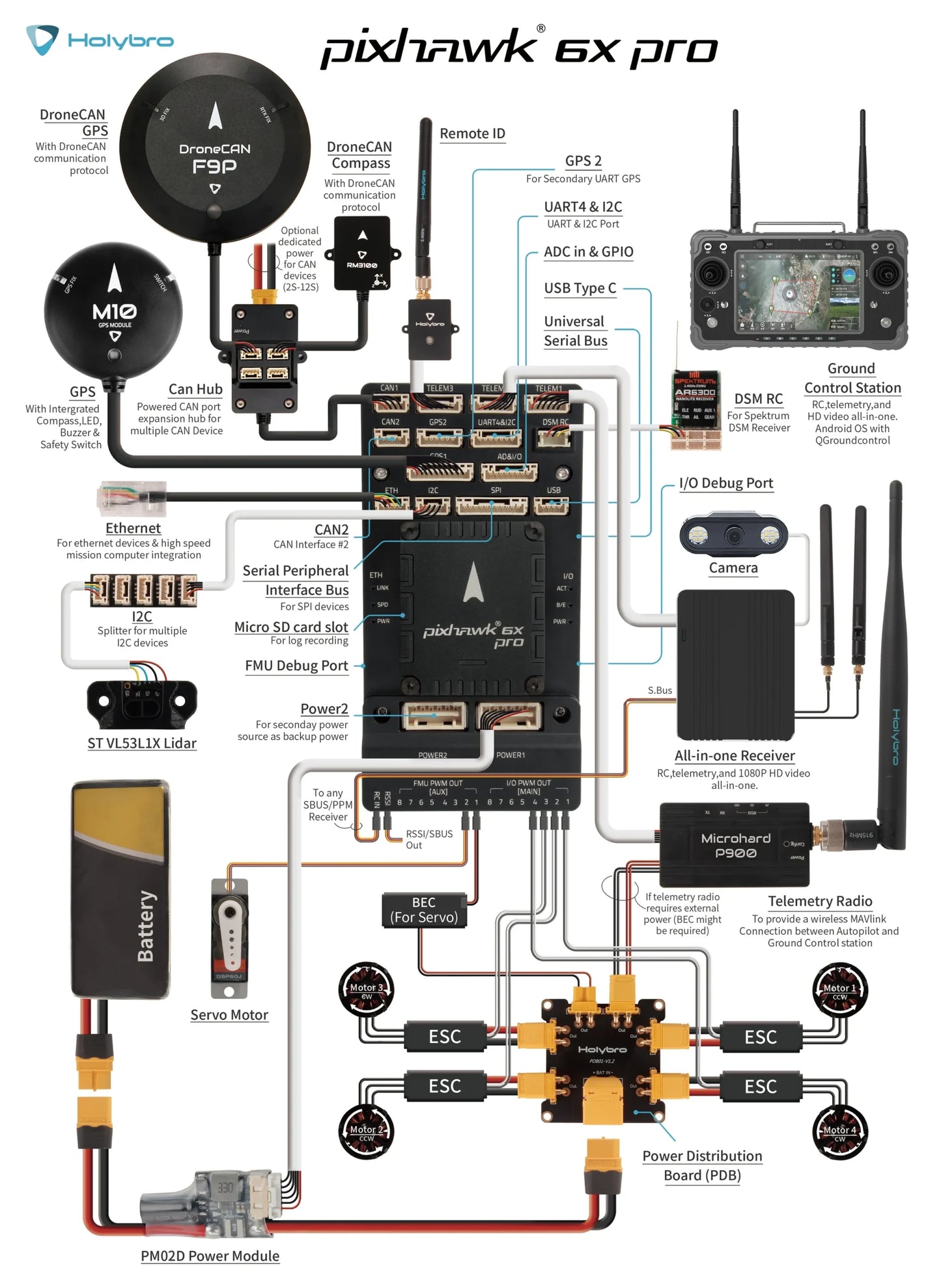

• Sample Wiring Diagram
