Matek Power Module PM20S-2: A Versatile Power Solution for Advanced Projects
Introducing the Matek PM20S-2 Power Module, your reliable partner engineered for high-voltage applications. Crafted with robust 100V DC components, this power module enhances your projects with superior efficiency and flexibility. The PM20S-2 supports a wide operating input voltage range from 9V to 85V, complete with 85V TVS protection, ensuring your setups are safeguarded against unexpected voltage spikes.
Dual Independent Voltage Regulators for Maximum Efficiency
The PM20S-2 features two independent step-down voltage regulators, each tailored to deliver exceptional performance:
- Regulator 1: Offers selectable output voltages of 5.3V, 6.1V, or 8.1V. It is designed to handle a continuous output current of up to 15A and can surge up to a peak of 22A.
- Regulator 2: Provides options for 5.3V, 8.1V, or 12.2V, with the same robust current capabilities as Regulator 1.
Both regulators boast impressive efficiency ratings between 90% to 96%, ensuring that energy is used judiciously, reducing waste and enhancing system stability.
Designed for Precision and Durability
Each regulator within the PM20S-2 maintains an output voltage tolerance of just 1.5%, which means your sensitive components receive exactly the power they need without the risk of damage. Furthermore, the module includes features like thermal shutdown at 150°C, short-circuit tolerance for up to 1 second, overcurrent protection with self-recovery, and minimal output ripple.
Compact and Lightweight
The PM20S-2 is not just powerful, but also compact. Measuring only 61x40x15mm and weighing 63g, it fits effortlessly into a wide range of setups without adding bulk, making it an ideal choice for mobile and airborne applications.

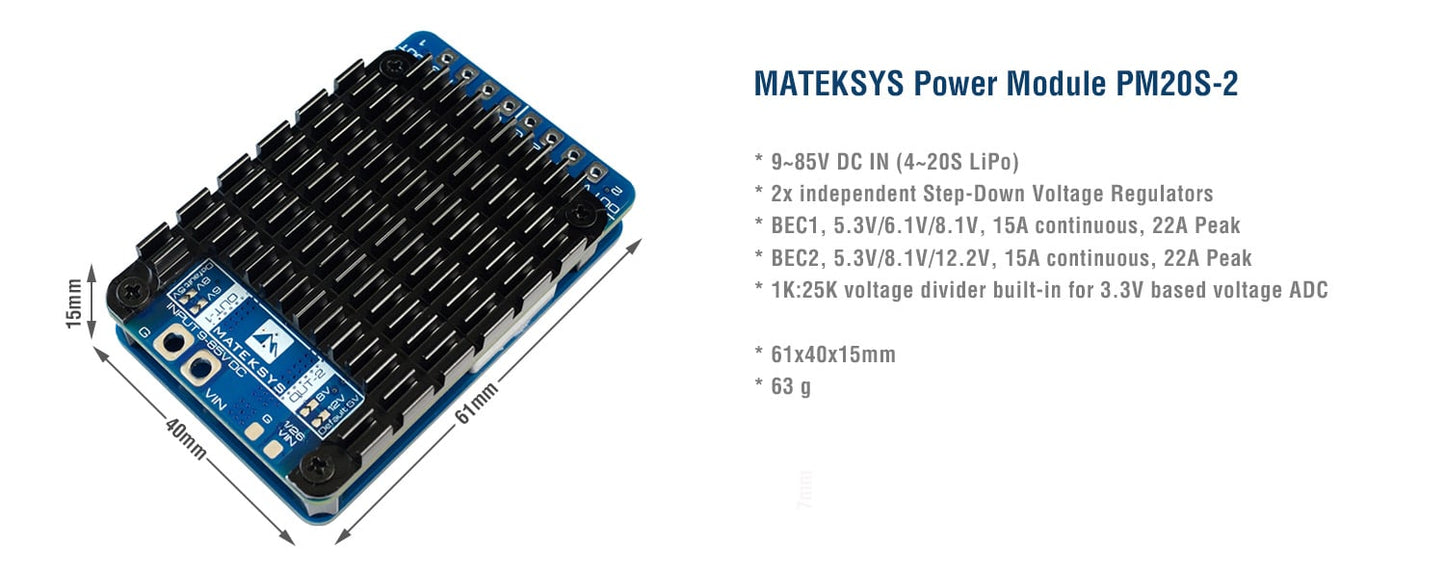

Technical Specifications and Features:
-
- PM20S-2 is made with 100V DC components.
- Support 9V to 85V DC operating Input voltage with 85V TVS protection
- 2x independent Step-Down Voltage Regulators
- Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- 1K:25K voltage divider built-in for 3.3V based voltage ADC

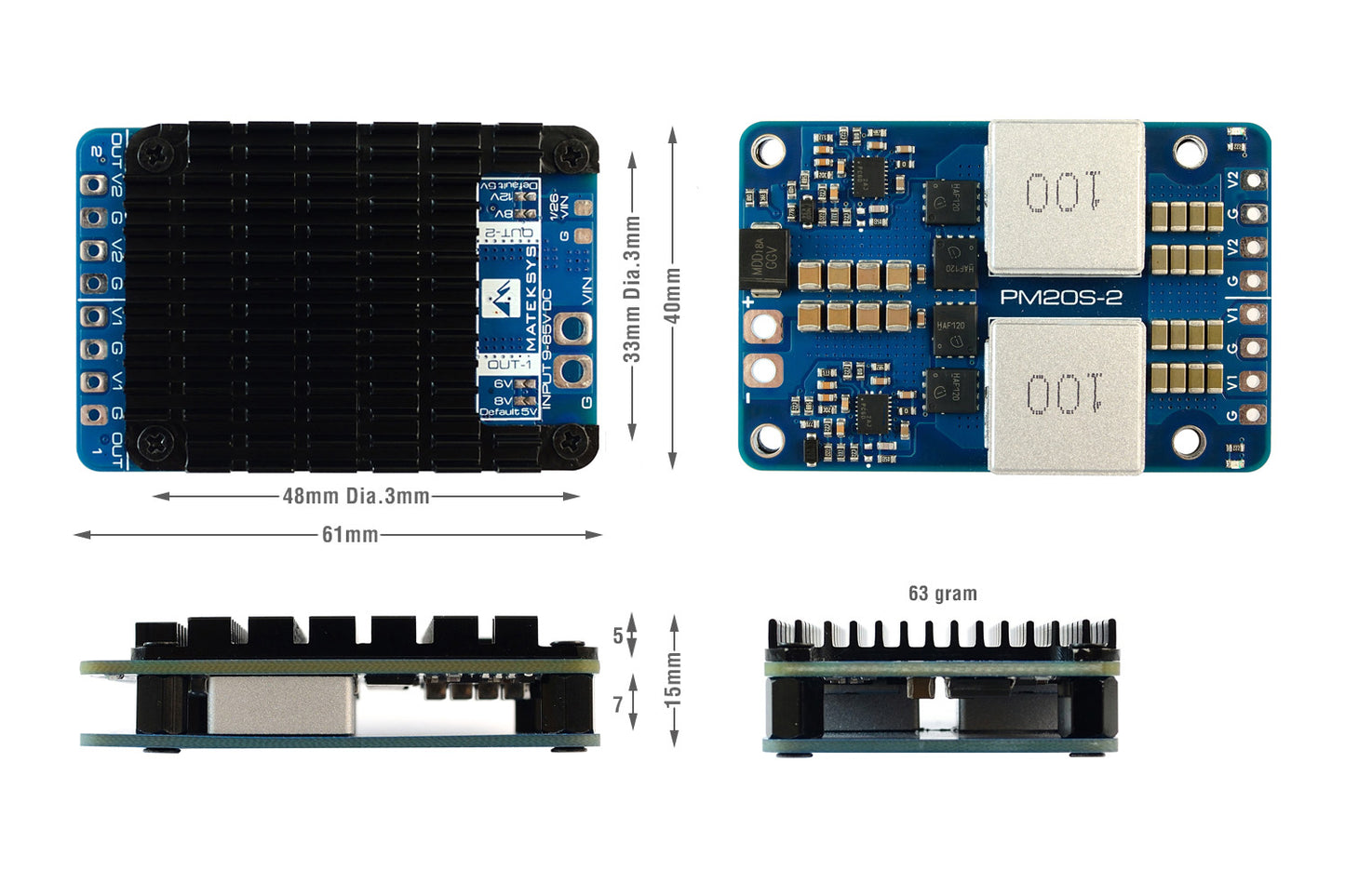

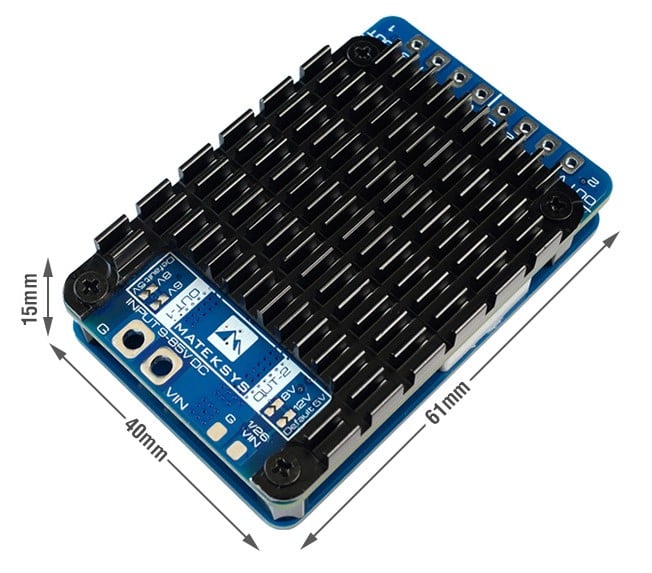

- Size & Weight: 61x40x15mm, 63g
- 3D step file PM20S-2.zip
Regulator 1

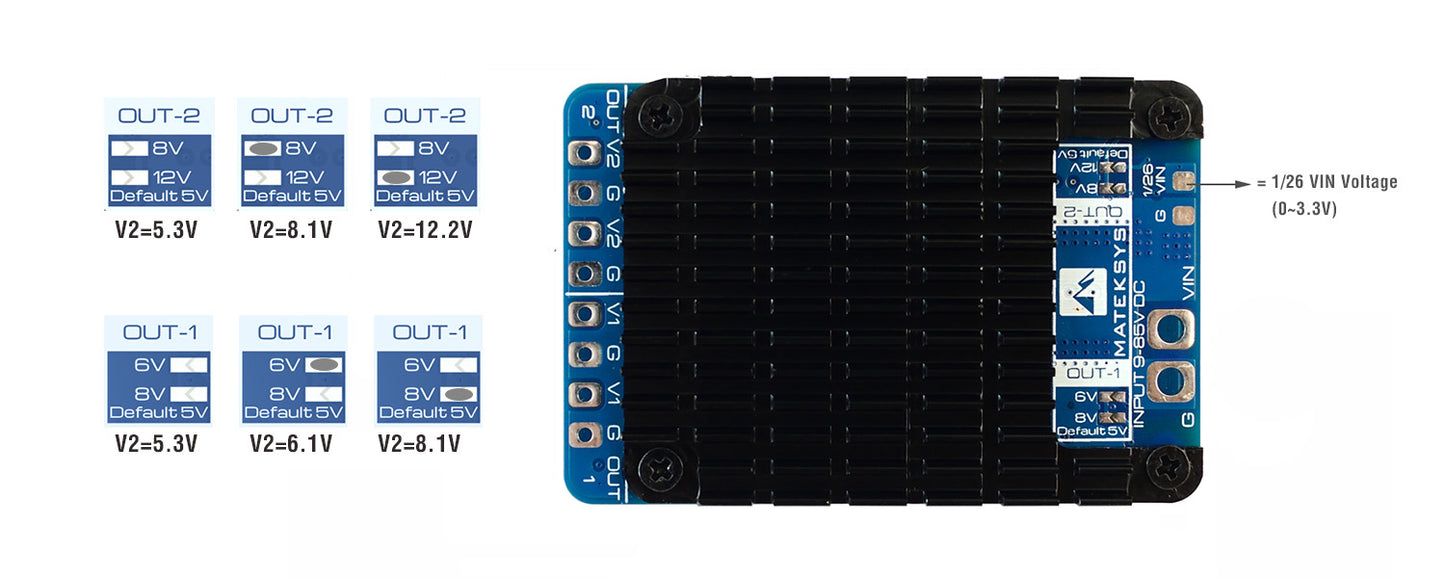

- Output voltage 5.3V / 6.1V / 8.1V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection &Â self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
- Output voltage 5.3V / 8.1V/12.2V options.
- Output voltage tolerance 1.5%
- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 58mV (VIN=58V, Output 12V @ 5A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection &Â self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
In the Box:
- 1x Matek PM20S-2 Power Module
