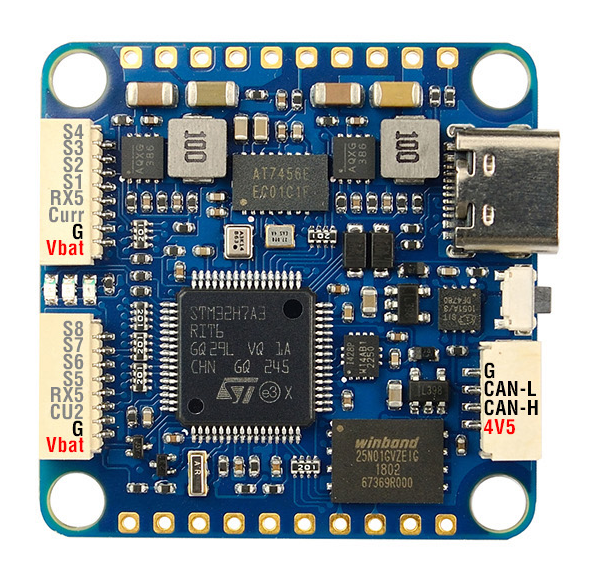

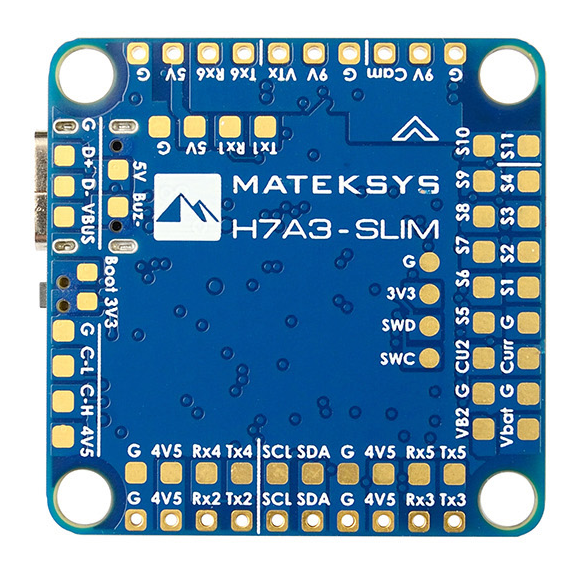

Matek H7A3-SLIM Flight Controller

Unveil a new realm of drone flight control with the Matek Flight Controller H7A3-SLIM, engineered to deliver unparalleled control and reliability. Featuring the advanced STM32H7A3RIT6 processor with a turbocharged 280MHz Cortex-M7 core, this flight controller is the brain your drone needs to perform at its best.

Top Features:

• Powerful Processor: Equipped with the STM32H7A3RIT6, operating at 280MHz for swift and efficient flight control.
• High Precision Sensors: Includes the ICM42688P IMU for accurate movement tracking and the SPL06-001 barometer for stable altitude management.

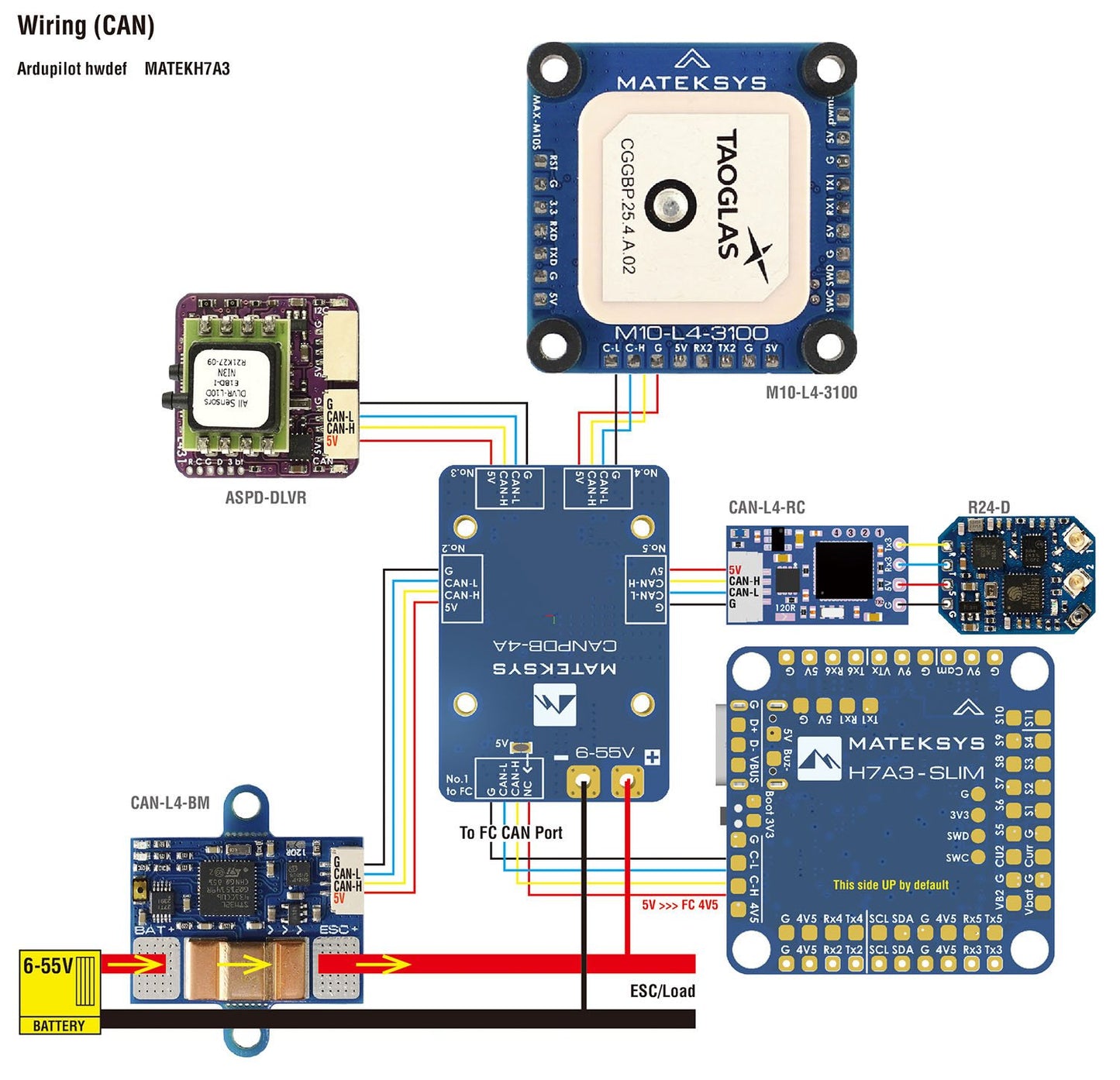

• Versatile Connectivity: Boasts 6 UARTs, a single I2C, and a CAN bus interface, ensuring wide-ranging compatibility and communication options.
• Extensive Output Options: Features 11 PWM outputs, empowering you with extensive motor and accessory control.
• Enhanced Power Management: Integrated dual BEC outputs providing 5V and 9V, optimized for various drone components.
• Comprehensive Firmware Support: Fully compatible with the latest ArduPilot firmware, ensuring smooth and customizable operations.

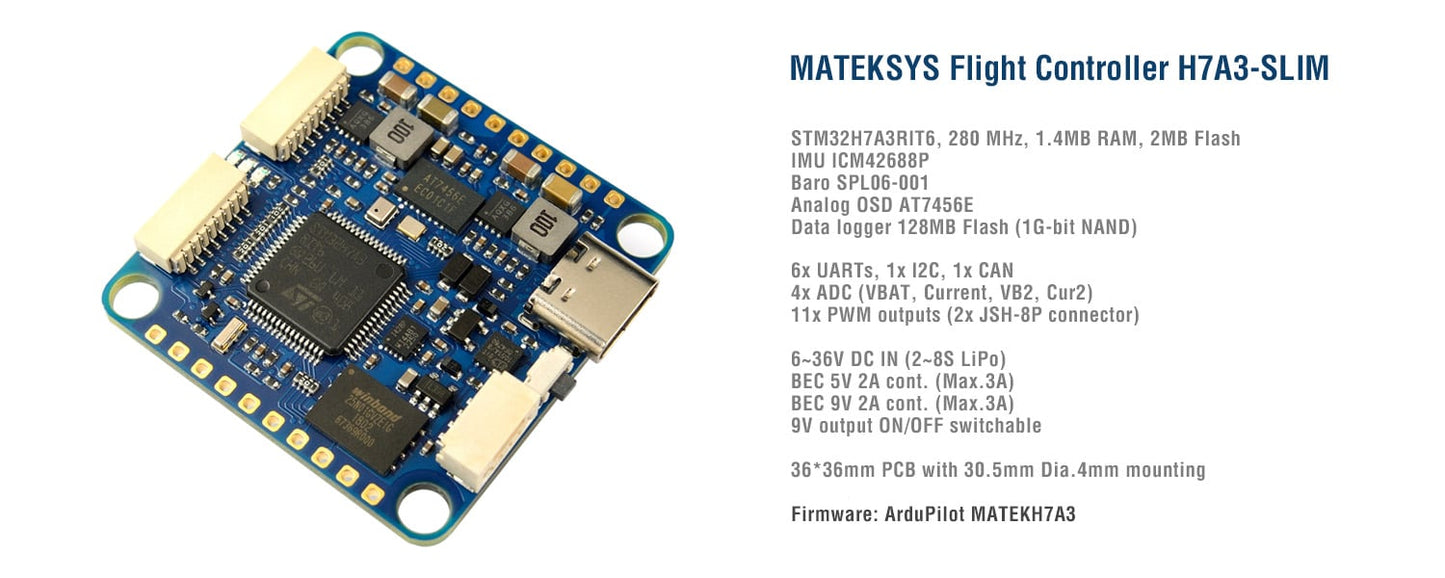

In-Depth Specifications:

• MCU Performance: 1.4MB RAM and 2MB Flash memory for complex maneuvers and updates.
• Connectivity: Includes a high-speed USB Type-C port and support for digital video OSD through any spare UART.
• Power Flexibility: Accepts a wide input range from 636V (28S LiPo), with dedicated LDO for 3.3V output.
• Mounting and Dimensions: Standard 30.5 x 30.5mm mounting holes, enclosed in a compact 36 x 36 x 5 mm frame weighing just 7g.

What’s Included?

• 1x Matek H7A3-SLIM Flight Controller
• 6x Silicon Grommets M4 to M3 for vibration dampening
• Connectivity cables including 2x JST-SH1.0_8pin and 1x JST-GH-4P to JST-GH-4P for CAN port.
