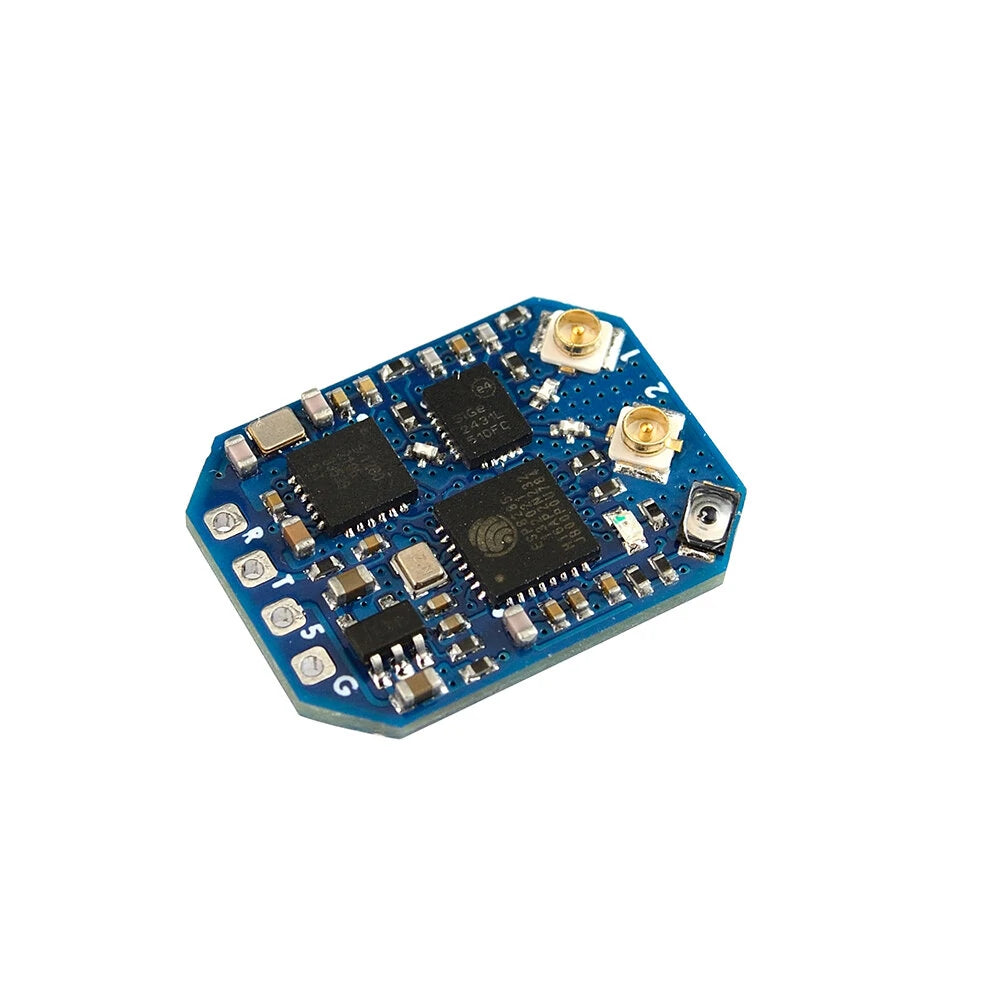

Matek ELRS-R24-D 2.4Ghz Receiver

£17.09 (ex VAT £14.24)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

SKU: 9B2-A66-6FF Category: Tags: , Brand:

This is a diversity ELRS receiver from Matek. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

Matek ELRS-R24-D 2.4Ghz Receiver

£17.09 (ex VAT £14.24)

Out of stock
Restock in 2+ Weeks

Want to be notified when this product is back in stock?

This is a diversity ELRS receiver from Matek. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

Not the cheapest?

We will try to beat it!

⚠️Always test your item before soldering, issues caused by soldering aren't covered by warranty.

SKU: 9B2-A66-6FF Category: Tags: , Brand:

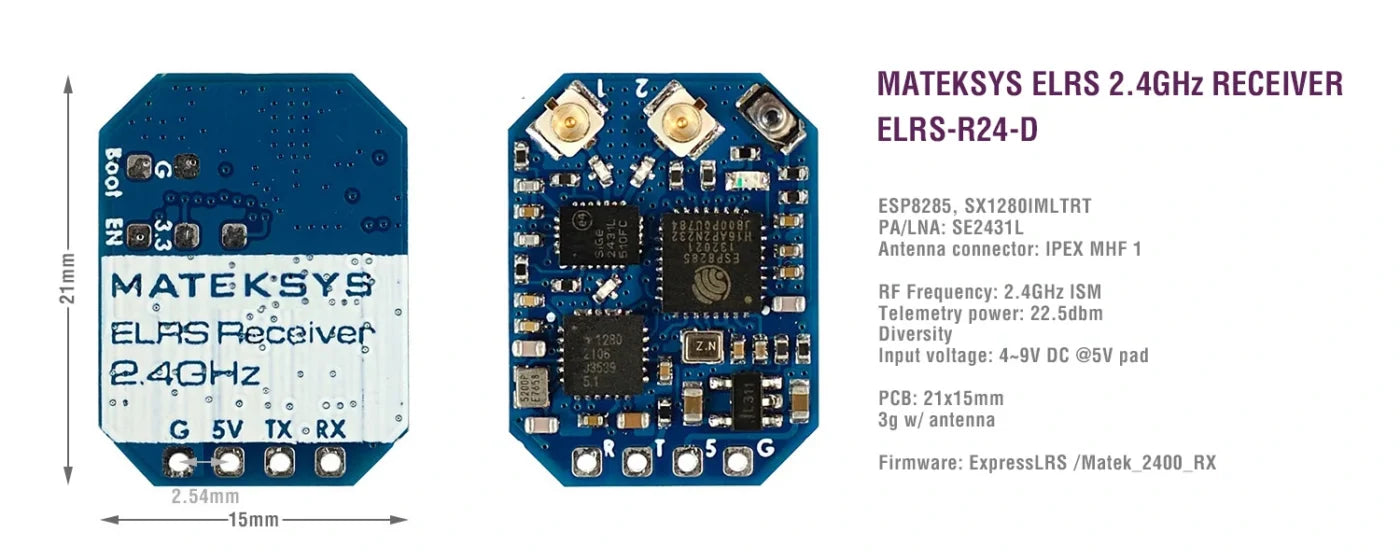

Matek elrs info

Matek ELRS PWM Converter for RC Planes Cars Boats 😲

Specifications

  • Brand Name: MATEKSYS
  • Item Name: ELRS-R24-D RC Receiver
  • Model: ELRS-R24-D
  • Weight: 3g (with 2x antennas)

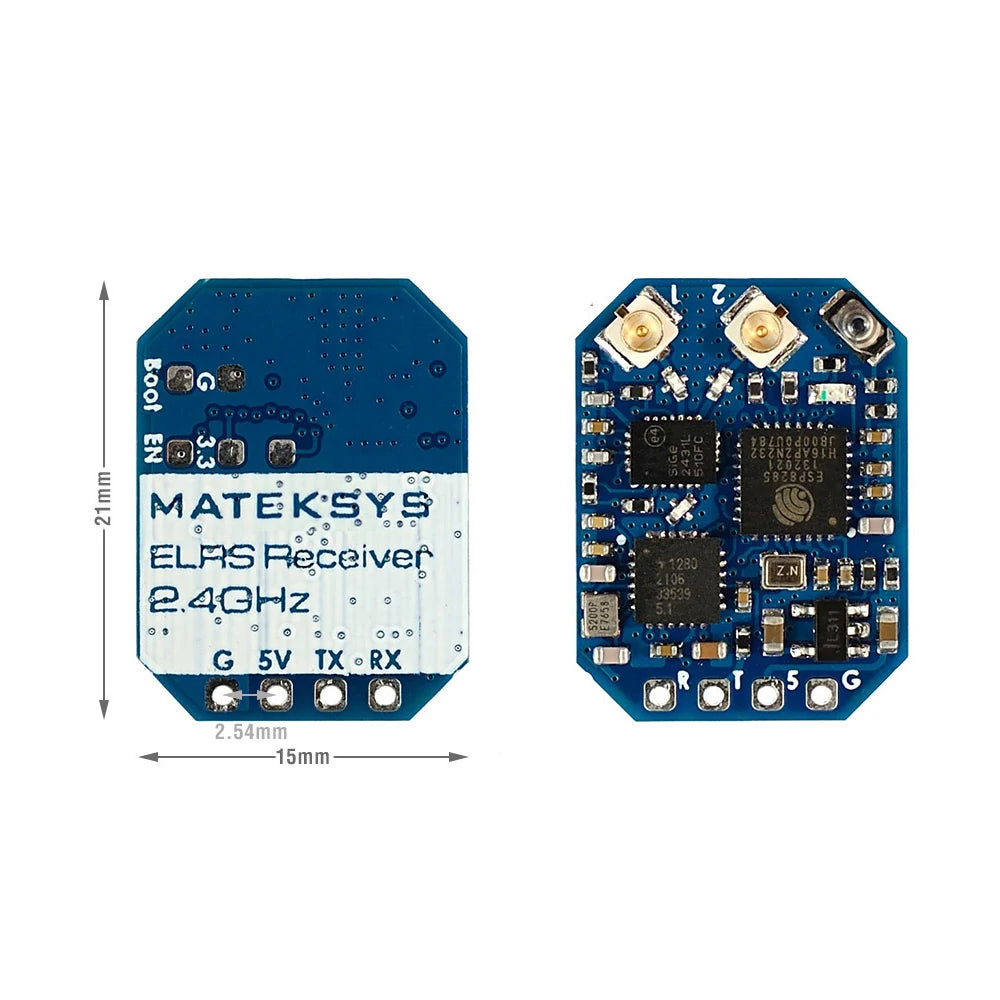

  • PCB Size: 21x15mm
  • ESP8285, SX1280IMLTRT
  • PA/LNA: SE2431L
  • Antenna connector: IPEX MHF 1
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: 22.5dbm~23dbm
  • SE2431L RX_gain: 12.5dB
  • Diversity (antenna-switching), default ANT2
  • Receiver protocol: CRSF
  • Input voltage: 4~9V DC @ 5V pad
  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)

Firmware Information:

  • ExpressLRS MATEK_2400_RX
  • Firmware update via UART or WIFI
  • ELRS-R24-D: enable “USE_DIVERSITY” (checked) when flashing in ExpressLRS configurator

Notes

“Any ELRS 2.4Ghz receivers can work with any ELRS 2.4Ghz TX Modules, from any manufacturer and even the DIY ones. This is as long as they have the same binding phrase and configuration options (Regulatory Domain, Performance Options and Extra Data).”

More details about ExpressLRS, pls check out the official ExpressLRS wiki

Wiring with FC

Receiver RX — FC UART_TX for Telemetry

Receiver TX — FC UART_RX for Control

Receiver 5V — FC 5V or 4v5

Receiver G — FC GND

Receiver protocol: Serial-based receiver – CRSF

Traditional Binding

Receivers have ExpressLRS fw V1.1.0 preloaded without BINDING_PHRASE

1. Power on and off your receiver three times

2. Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode

3. Use the [BIND] button on the Transmitter Lua script, which sends out a binding pulse

4. Receiver will switch to slow blink once it has received binding pulse.

5. Power off and power on receiver again. If the receiver LED switch to solid on from slow blink, it’s bound with your transmitter.

Important

If the RX firmware has a bind phrase, the RX will never enter binding mode using the above procedure. It must be flashed without a binding phrase to do traditional binding.

Flashing with ESP_NodeMCU-PyFlasher

1. Connect receiver to USB-TTL module(RX-TX, TX-RX, 5V-5V, G-GND)

2. Connect USB to PC while pressing and holding the boot button in.

3. Open ESP_NodeMCU-PyFlasher

4. Select Serial port of USB-TTL module, load firmware, select “Dual Output(DOUT)” and “Yes.wipes all data“

5. Click “Flash NodeMCU“

6. After flashing, Power off and power on your receiver, receiver will enter binding mode(quick double blink).

Flashing with ELRS configurator

  • MATEK_2400_RX target is not available in ELRS configurator 1.0.8 and fw release 1.1.0 for now

Included

  • 1 x ELRS-R24-D RC Receiver
  • 2 x IPEX MHF1 Antennas
Weight 100 g
Dimensions 10 × 5 × 5 cm
Frequency

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
