HolyBro M9N GPS Module for Pixhawk
£53.99 (ex VAT: £44.99)

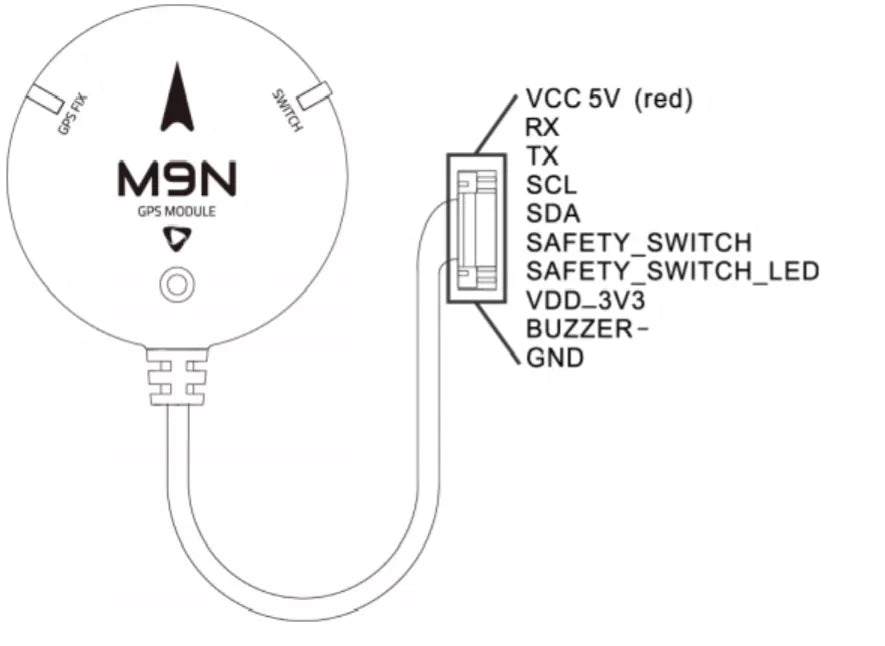

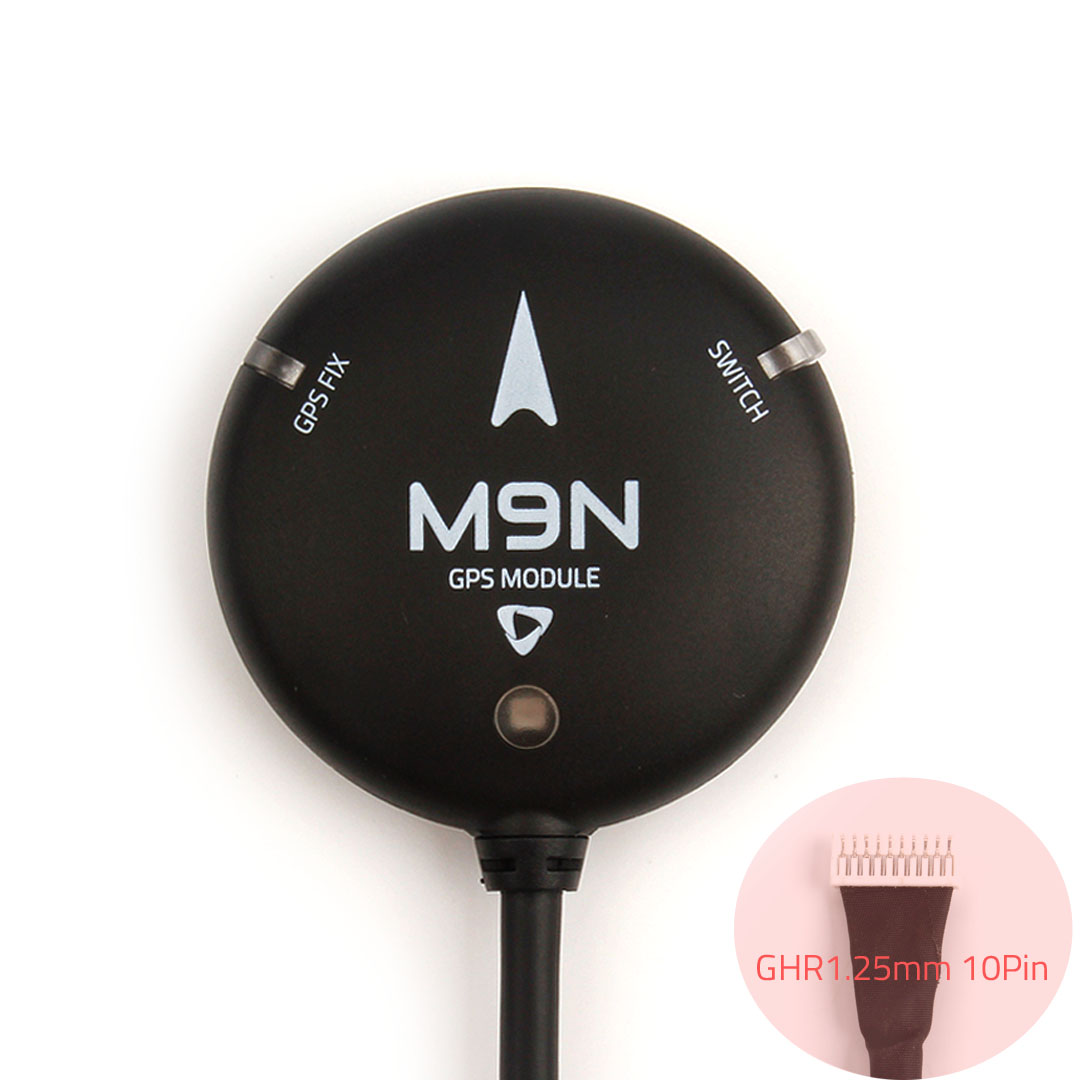

This is a M9N GPS module from HolyBro with a 10pin JST GHR1.25mm connector, designed to work with the Pixhawk Cube Pilot autopilots. Also available with a 6pin connector to be used as a secondary GPS module.
SKU: C61-EE7-5F1
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
The M9N GPS has an UBLOX M9N module, IST8310 compass, tri-colored LED indicator, and a safety switch.
This module ships with a baud rate of 115200 5Hz
Features and Specifications
- Ublox Neo-M9N module
- Industry leading –167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- Current consumption: less than 150mA @ 5V
- Fix indicator LEDs
- Protective case

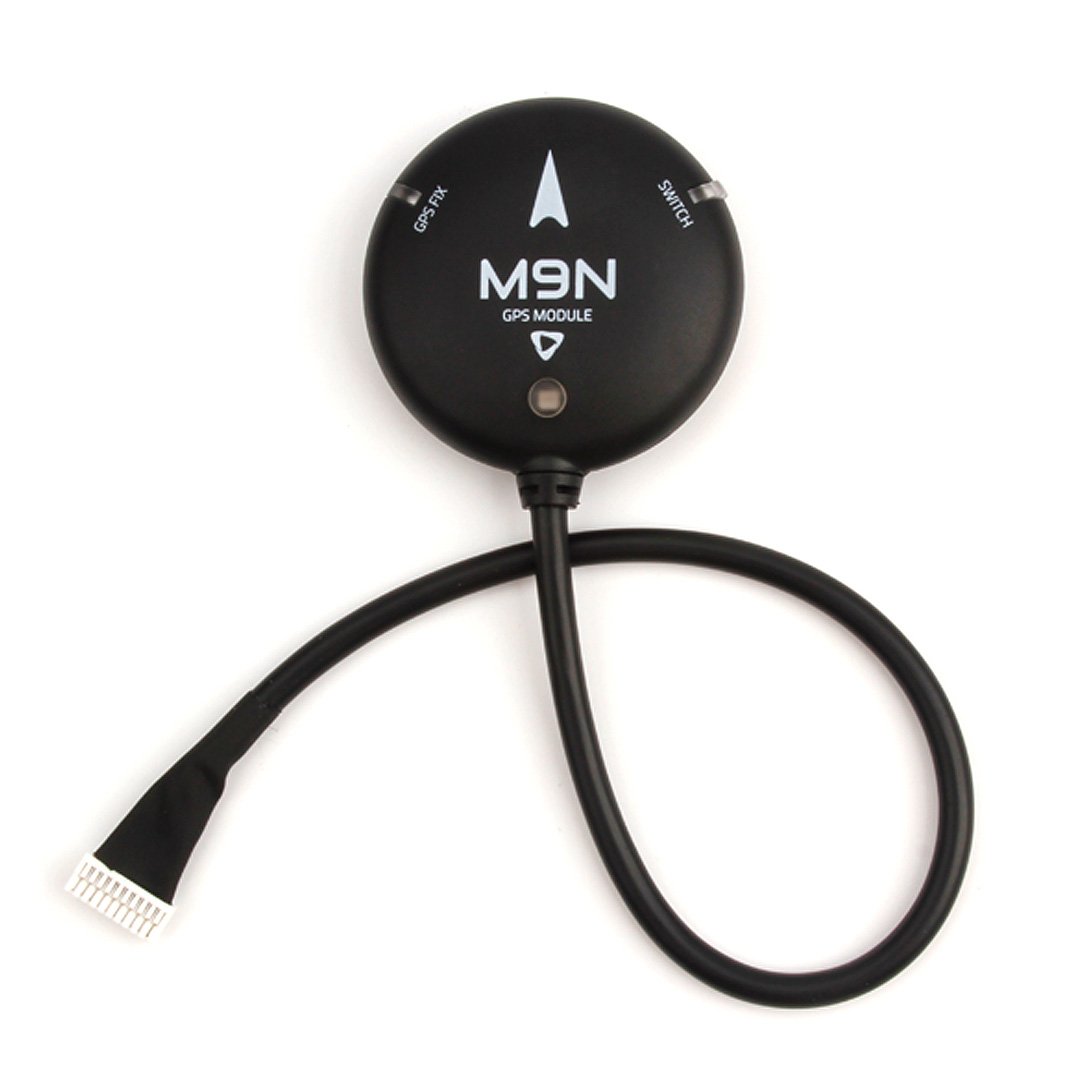

- 26cm cable included
- Diameter 50mm total size, 32 grams with case.
| Weight | 75 g |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
