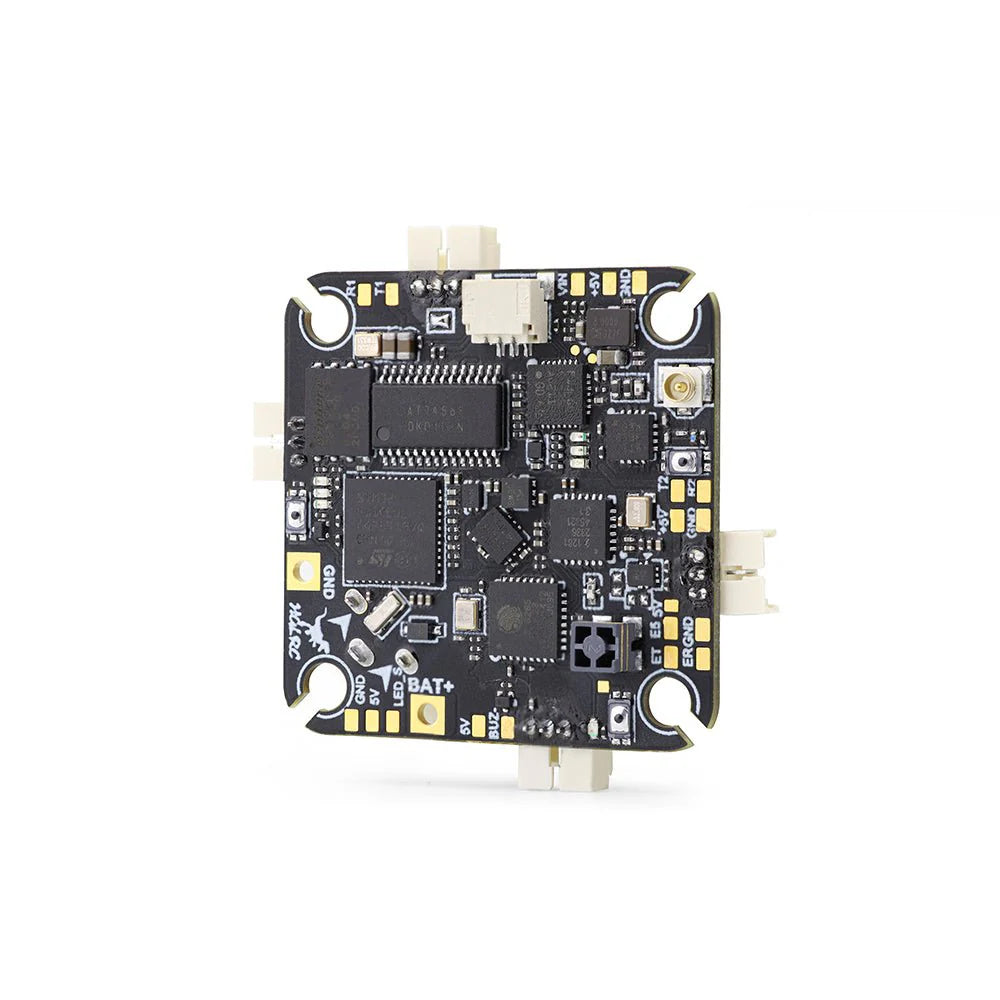

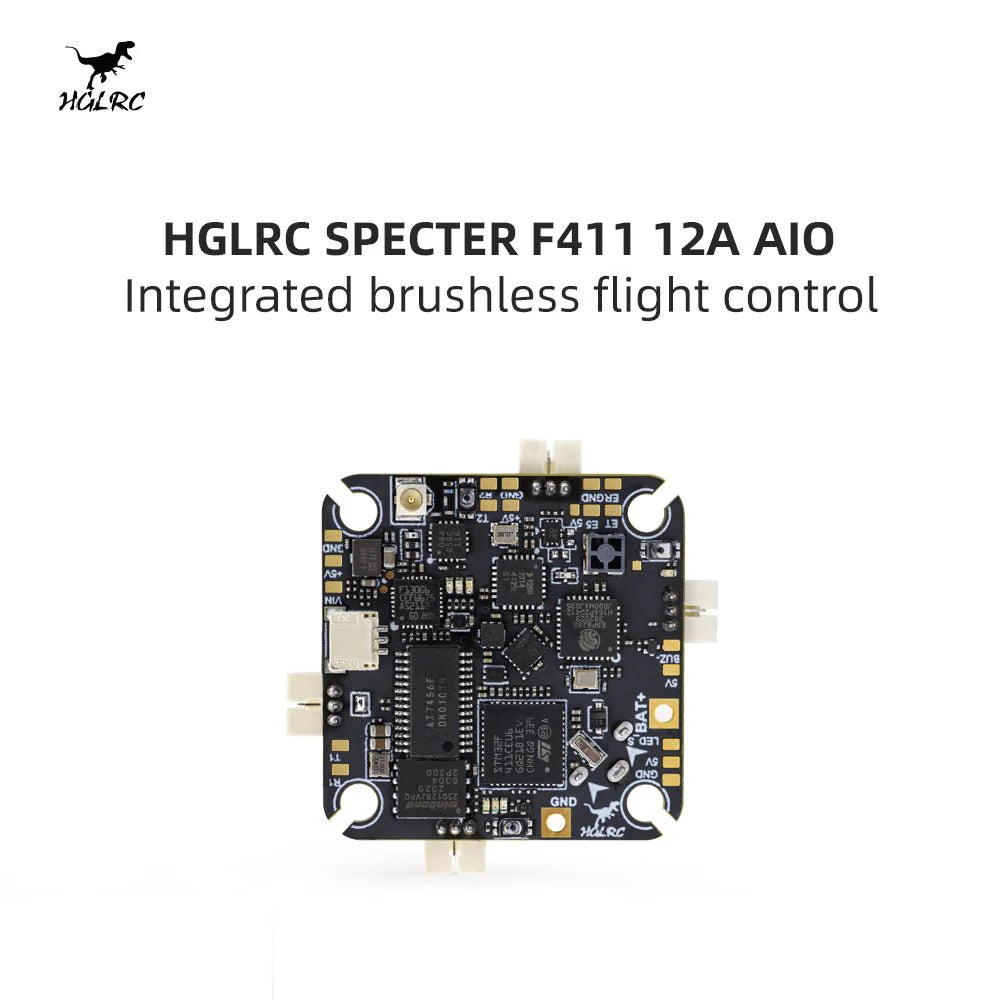

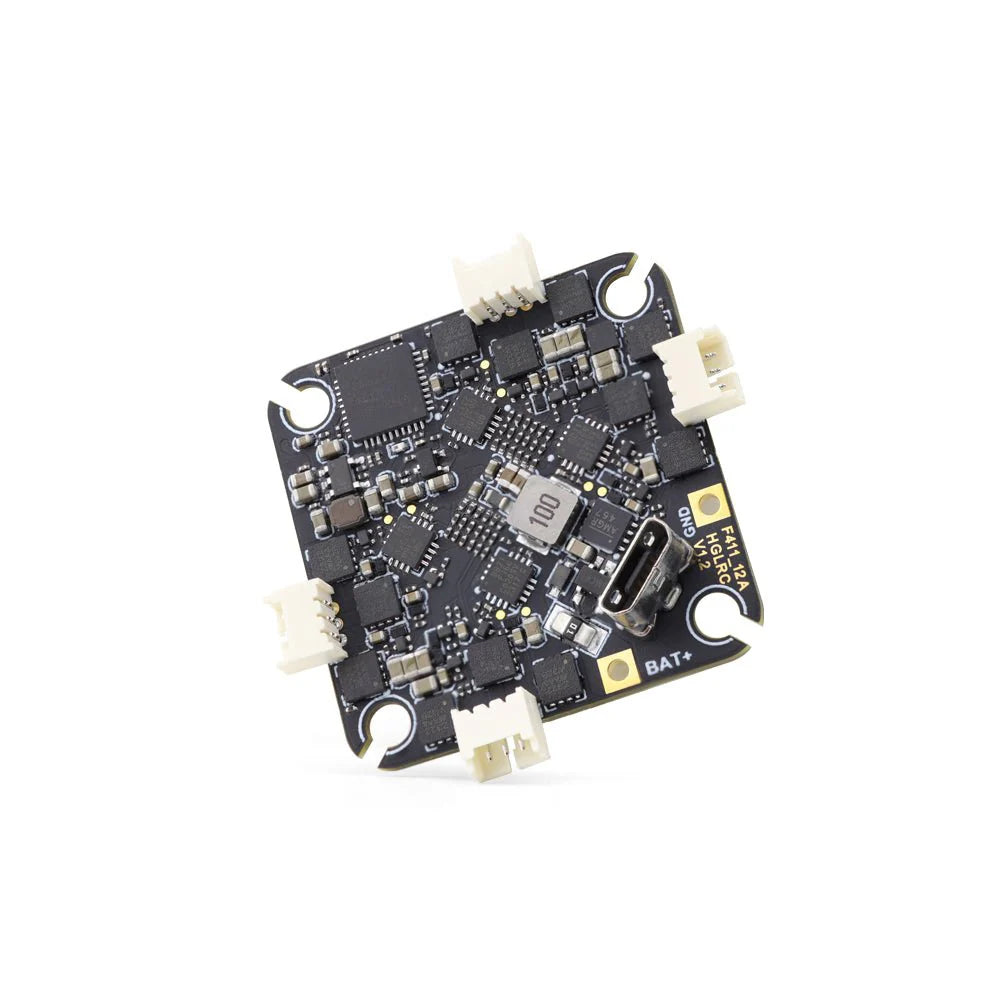

HGLRC Specter F411 12A AIO Flight Controller (ELRS+VTX)

Revolutionize Your Drone Experience with Advanced Integration

The HGLRC SPECTER F411 12A AIO is not just another flight controller; it’s a game-changer for the FPV community. This all-in-one marvel brings together top-tier features that cater specifically to those who thrive on precision and performance.

Key Features:

• High-Performance MCU & MPU: At the heart of this beast lies the STM32F411 microcontroller and ICM42688P motion processor, ensuring rapid processing and stable flight dynamics.
• Robust Built-in Receiver: Say goodbye to external receiver woes thanks to the integrated UART ExpressLRS 2.4G receiver. Enjoy enhanced stability and extended signal range, making lost connections a thing of the past.
• Superior Image Transmission: Equipped with an adjustable 400mW 5.8GHz RCE-25-100-400mW analog transmitter, this controller ensures that you can navigate even the most challenging environments without a hitch.
• Expansive Firmware Compatibility: Ships with BLS firmware, yet flexible enough to switch to Bluebird firmware for those who like to tinker.

Enhanced Connectivity and Power:

• Versatile Battery Compatibility: Powers through with support for 2S to 4S batteries, ensuring flexibility across different drone setups, from 75mm whoops to 3-inch toothpick drones.
• Continuous & Peak Currents: Features a robust 12A continuous and 15A peak current, giving you the muscle when you need it most.
• Comprehensive Onboard Support: Includes a 5V1.5A BEC, 16MB black box for data logging, OSD, LED, and buzzer support, enhancing both functionality and troubleshooting capabilities.

Design and Durability:

• Compact and Lightweight: A mere 5.6 grams and dimensions of 32x32mm, paired with a 25.5×25.5mm mounting hole pattern, make installation a breeze without adding bulk.
• Firmware and Protocol Ready: Utilizes Dshot150/300/600 for swift and reliable ESC communication, ensuring your drone reacts as fast as you do.

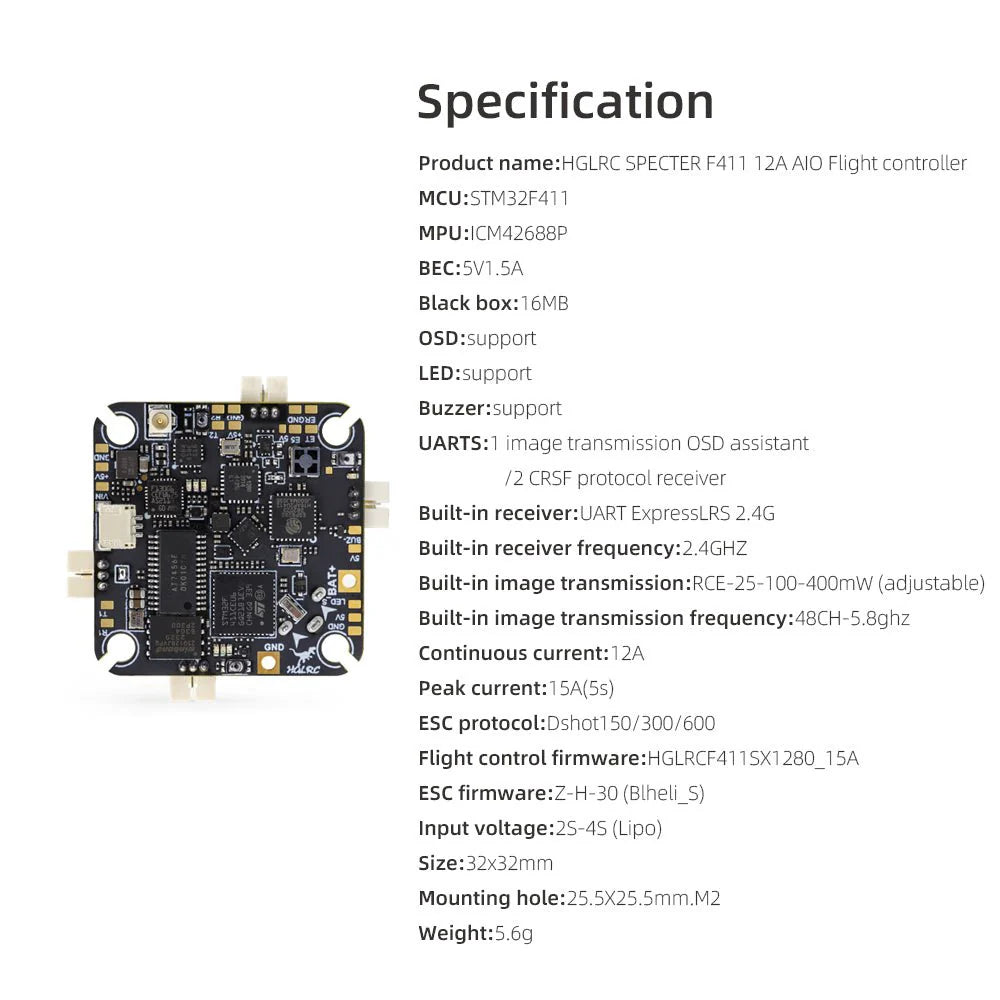

Specifications

• Product name:HGLRC F411 12A AlO Flight controller
• MCU:STM32F411
• MPU:ICM42688P
• BEC:5V1.5A
• Black box:16MB
• OSD:support
• LED:support
• Buzzer:support
• UARTS:
  • image transmission OSD assistant
  •  CRSF protocol receiver
• Built-in receiver:UART ExpressLRS 2.4G
• Built-in receiver frequency:2.4GHZ
• Built-in image transmission:RCE-25-100-400mW (adjustable)
• Built-in image transmission frequency:48CH-5.8ghz
• Continuous current: 12A
• Peak current: 15A(5s)
• ESC protocol:Dshot150/300/600
• Flight control firmware:HGLRCF4115X1280_15A
• ESC firmware:Z-H-30 (Blheli_S)
• Input voltage: 25-45 (Lipo)
• Size: 32x32mm
• Mounting hole: 25.5X25.5mm.M2
• Weight:5.6g

In the Box:

• HGLRC SPECTER F411 12A AIO Flight Controller

Perfect for Indoor and Outdoor Flights

Whether navigating the nooks and crannies of your basement or soaring outdoors, this flight controller is engineered to keep you in control with a high refresh rate, low latency, and unmatched sensitivity.

Transform your flying experience with the HGLRC SPECTER F411 12A AIO – because your drone deserves the best of technology wrapped in a tiny, potent package. Fly further, faster, and with more fun than ever before!
