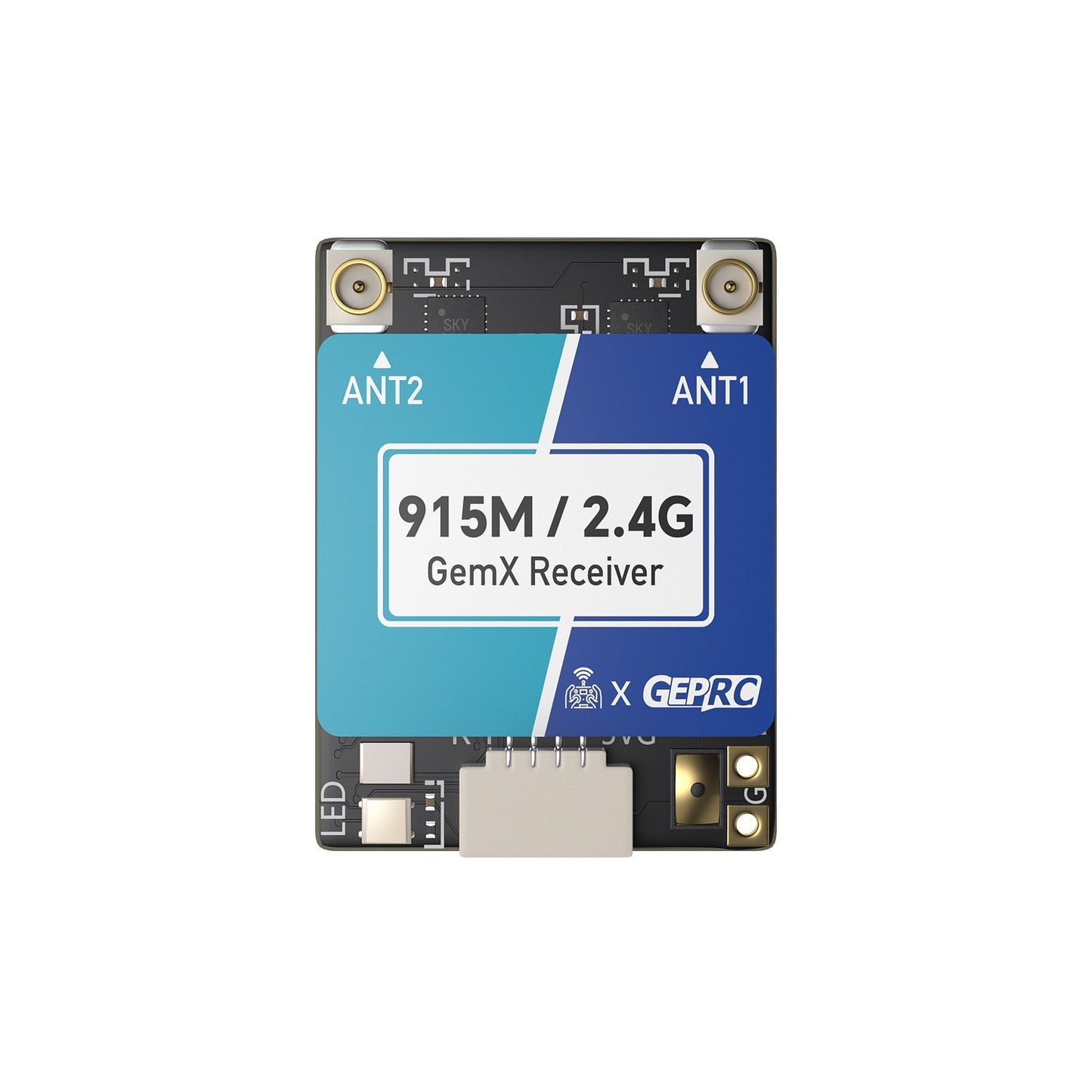

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver

The GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver is a cutting-edge dual-frequency system crafted for FPV pilots seeking unmatched performance and versatility. Developed from the ExpressLRS open-source project, it leverages Semtech’s LR1121 RF chip to support both sub-GHz (150–960MHz) and 2.4GHz bands, enabling simultaneous dual-band transmission for enhanced stability and anti-interference capabilities.

This receiver’s dual LR1121 chip design allows seamless switching between 915M Gemini, 2.4G Gemini, or 915M+2.4G dual-band modes (when paired with a dual-band TX module). It’s fully compatible with existing ELRS 915M and 2.4G TX modules, ensuring broad usability.

The addition of a TCXO temperature-compensated crystal oscillator guarantees reliable performance even in extreme conditions, while the built-in WiFi antenna streamlines firmware updates. Compact and lightweight, the Gemini Xrossband Receiver is a powerhouse at just 1.7g, perfect for minimizing your build’s weight without sacrificing functionality.

Key Features:

• Dual-band versatility: Supports 915M Gemini, 2.4G Gemini, and 915M+2.4G dual-band modes.
• Next-gen technology: Built on Semtech’s third-generation LR1121 RF chip.
• Temperature stability: TCXO crystal oscillator ensures consistent performance across temperature changes.
• Telemetry power: Up to 100mW for reliable communication.
• High refresh rates: Up to 1000Hz for precise control.
• WiFi-enabled: Built-in antenna for effortless firmware updates.
• Easy installation: SH1.0 connector and compact design for hassle-free integration.

Specifications:

• Model: GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver
• Dimensions: 18 × 23.6 × 5.7mm
• Weight: 1.7g (receiver only)

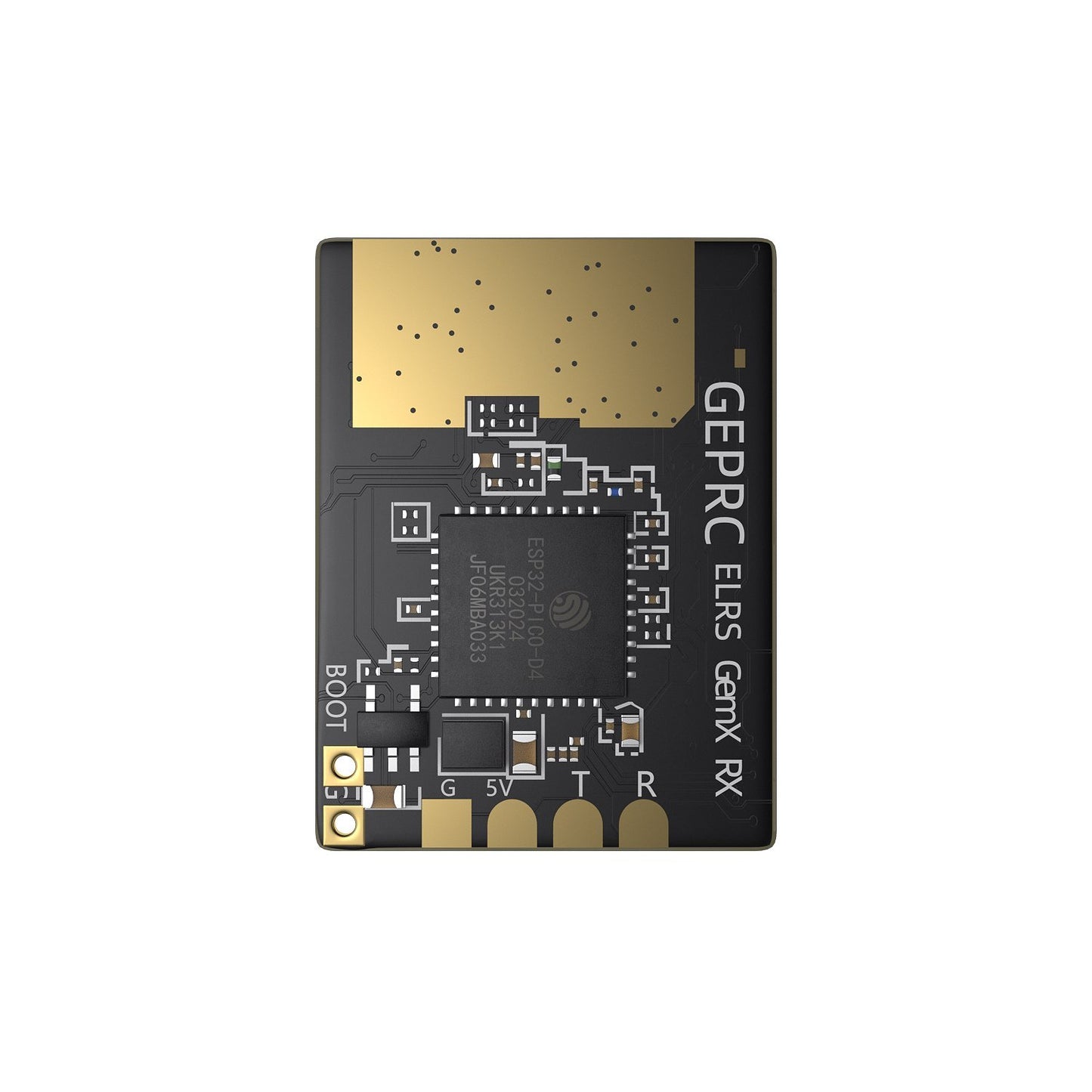

• Chips: ESP32-PICO-D4, LR1121×2
• Crystal Oscillator: TCXO
• Frequency Bands: 915MHz Gemini, 2.4GHz Gemini, 915M+2.4G Dual-Band
• Refresh Rate: 25Hz–1000Hz
• Operating Voltage: 5V
• Antenna Connector: IPEX1
• Telemetry Power: 100mW
• Firmware: GEPRC 900/2400 Gemini Xrossband RX

What’s in the Box?

• 1 × ELRS 915M/2.4G Gemini Xrossband Receiver

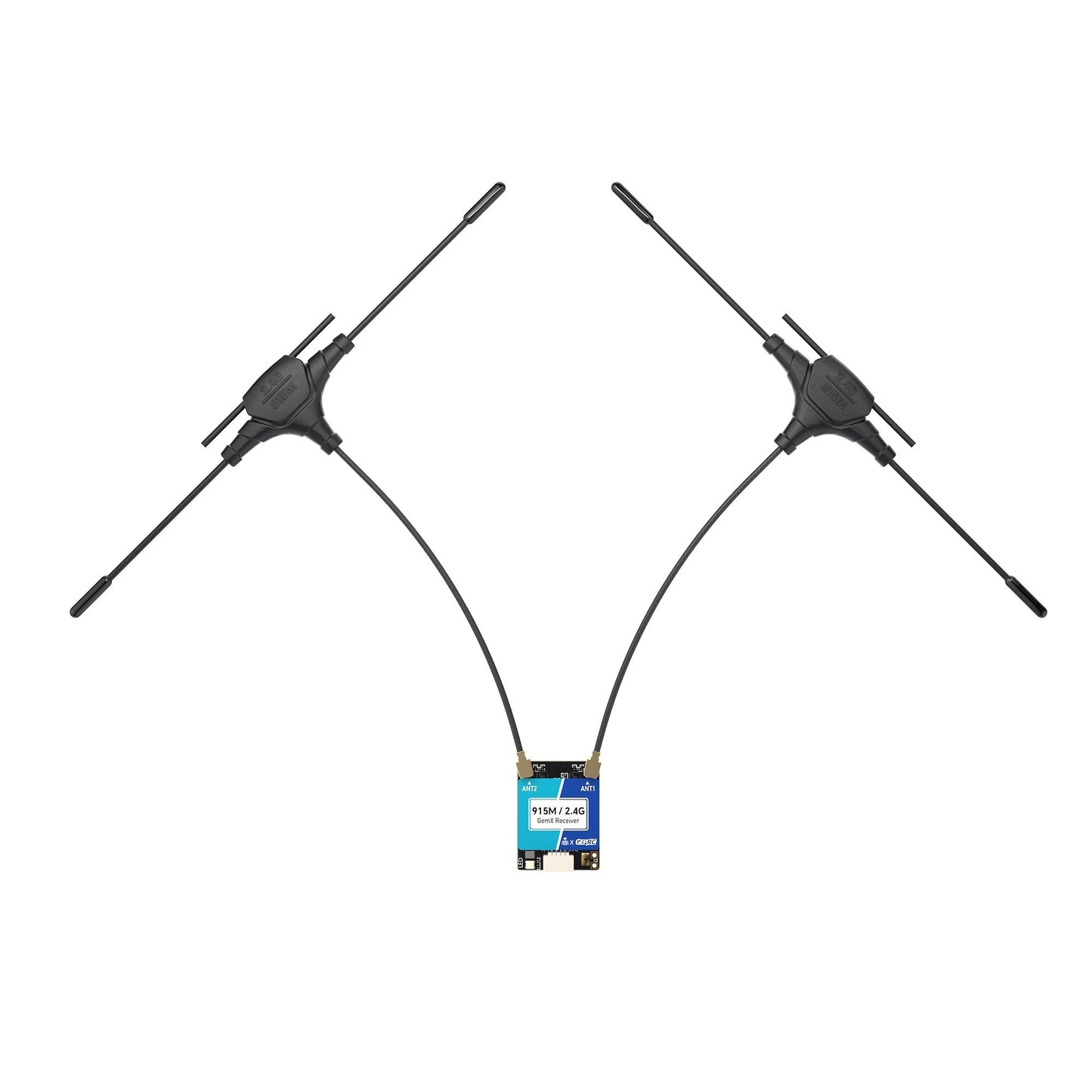

• 2 × 915M/2.4G Dual-band T-Antennas
• 1 × Heat shrink tube
• 1 × 4-pin silicone connect cable
• 1 × User manual

Disclaimer: Accessories included are subject to availability and may vary based on stock.
